Specifications
Brand Name :
OUCO
Model Number :
OUCO-PVC-400T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
PVC Mass-production Injection Molding Machine With Special Technical Solutions
Plastic Processed :
PP,PC,PVC
Applicable :
Manufacturing Plant,Food&Beverage
Type :
Automation
Warranty :
1 Year
Machinery :
Provided
Selling Points :
Competitive Price
Video Outgoing-inspection :
Provided
Machine Style :
Horizontal
Condition :
New
Lead Time :
About 50 Days
Description

PVC Mass-production Injection Molding Machine With Special Technical Solutions

Product Details
1. PVC material with special screw + barrel design and added fan for cooling barrel to avoid material overheating and coking;

2. Add a larger grade of oil motor to facilitate the plasticization and molding of PVC material;

3. Extended security door width for better installation of PVC parts molds, suitable for easy installation of PVC parts molds (core extraction barrels);

4. Provide special technical solutions for PVC injection molding, not only for the modification of screw and barrel, but also for the complete hydraulic system and special solutions for injection device.

Technical Parameter

TECHNICAL PARAMETER TABLE
Injection Unit
Screw diameter mm 75
Screw L/D ratio L/D 20
Injection capacity in theory cm³ 1634
Injection weight(PVC) g 1961
Injection pressure MPa 173
Injection rate g/s 474
Plasticizing capacity g/s 78
Screw speed rpm 160
Clamping Unit
Clamping force KN 4700
Moving mould-plate stroke mm 780
Max.Mould height mm 820
Min.Mould height mm 300
Space between tie-bars mm 820x770
Hydraulic ejector force KN 120
Hydraulic ejector stroke mm 200
Ejector number n 13
Other
Pump pressure MPa 16
Motor/Driving power KW 30+23
Heating capacity KW 23.15
Machine dimension m 7.85x2.5x2.4
Machine weight t 16.4
Oil tank capacity L 687

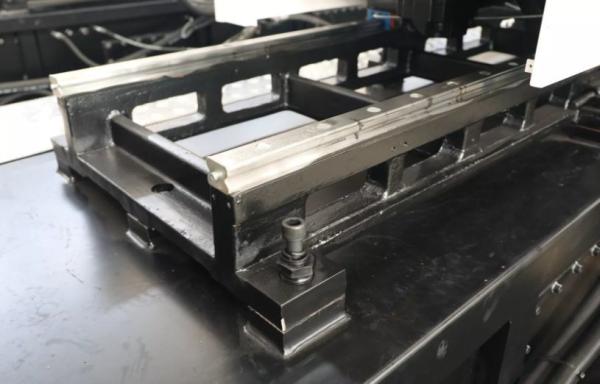

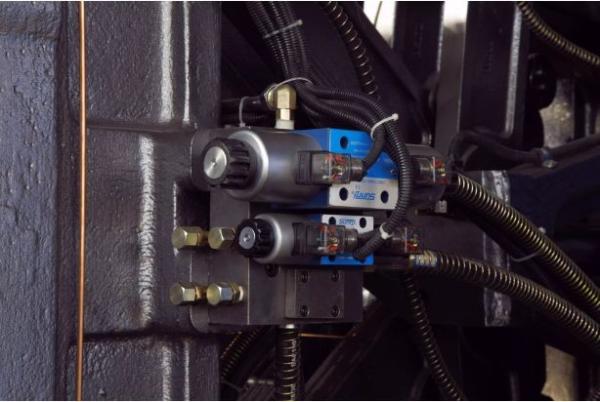

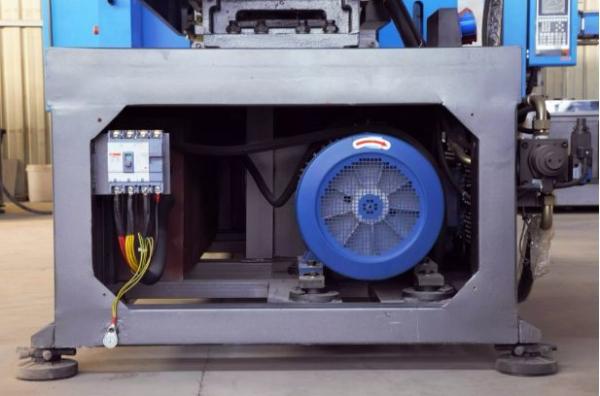

Detail Pictures
