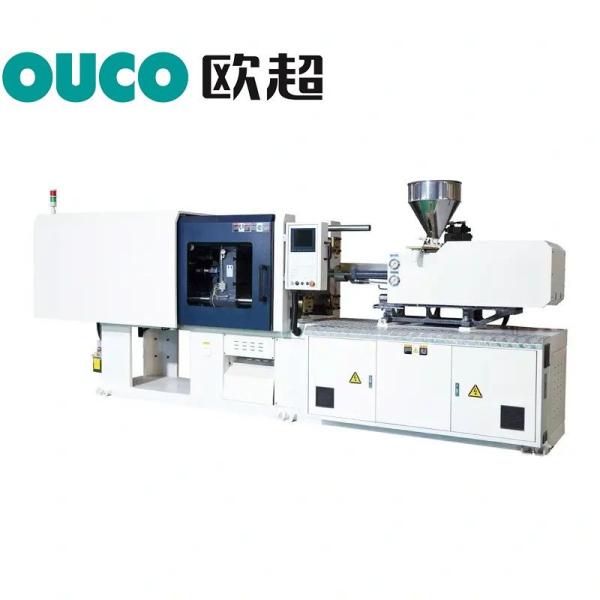

Small Servo PVC Precision Injection Molding Machine OUCO 730Ton
Small Servo PVC Precision Injection Molding Machine OUCO 730Ton
Small Servo PVC Precision Injection Molding Machine OUCO 730Ton
Small Servo PVC Precision Injection Molding Machine OUCO 730Ton
Specifications
Brand Name :
OUCO
Model Number :
OUCO-PV730T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO Small Servo Precision Injection Molding Machine PVC Material Special Machine 730Ton
Plastic Processed :
PP,PC,PVC
Applicable :
Manufacturing Plant,Food&Beverage
Type :
Automation
Warranty :
1 Year
Machinery :
Provided
Selling Points :
Competitive Price
Video Outgoing-inspection :
Provided
Condition :
New
Lead Time :
About 50 Days
Description

OUCO Small Servo Precision Injection Molding Machine PVC Material Special Machine 730Ton

The temperature control (melting temperature) of PVC is a very important process parameter in the processing process. If this parameter is not appropriate, it can lead to material degradation, resulting in yellowing of the product, and becoming an unqualified product. According to different levels of market demand, the process formula of the product also has its own characteristics.

OUCO has optimized the mold closing unit, injection unit, and oil circuit unit of PVC special machines for various characteristics, making PVC special machines have advantages such as temperature control, energy conservation, and plasticization. In the same field as chemical engineering, it provides customers in the building materials market with cost-effective choices.

Product Details
1. PVC material with special screw + barrel design and added fan for cooling barrel to avoid material overheating and coking;

2. Add a larger grade of oil motor to facilitate the plasticization and molding of PVC material;

3. Extended security door width for better installation of PVC parts molds, suitable for easy installation of PVC parts molds (core extraction barrels);

4. Provide special technical solutions for PVC injection molding, not only for the modification of screw and barrel, but also for the complete hydraulic system and special solutions for injection device.

TECHNICAL PARAMETER TABLE
Injection Unit
Screw diameter mm 90
Screw L/D ratio L/D 21
Injection capacity in theory cm³ 2799
Injection weight(PVC) g 3359
Injection pressure MPa 184
Injection rate g/s 564
Plasticizing capacity g/s 90
Screw speed rpm 125
Clamping Unit
Clamping force KN 7300
Moving mould-plate stroke mm 950
Max.Mould height mm 960
Min.Mould height mm 400
Space between tie-bars mm 1000x950
Hydraulic ejector force KN 200
Hydraulic ejector stroke mm 280
Ejector number n 17
Other
Pump pressure MPa 16
Motor/Driving power KW 30x2
Heating capacity KW 42
Machine dimension m 9.67x3.05x2.95
Machine weight t 33.2
Oil tank capacity L 1136

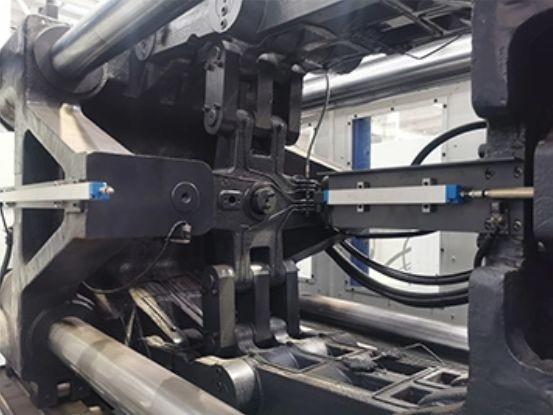

Detail Pictures

Small Servo PVC Precision Injection Molding Machine OUCO 730TonSmall Servo PVC Precision Injection Molding Machine OUCO 730Ton
