Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP60-SFP Series
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
US$75-90/pc
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Standards :
IEEE802.3at Power over Ethernet
Connector :
2 x RJ45
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Input Power :
48~57VDC, 4-pin terminal block
Power Consumption :
125W Max
Casing :
Aluminum Case
Description

60W Fiber Optic To Ethernet Converter SFP to 2xRj45 Converter POE++

48V DC Media Converter

​Fiber Media Converter Advantages

  • 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
  • IEEE802.3af/at compliant
  • Up to 60W of power over 4-pairs
  • Supports Full/Half-duplex, Auto-negotiation
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • 48~57VDC Terminal Block Power Input

Specifications

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

48~57VDC, 4-pin terminal block

Power Consumption:

125W Max.

LED Indicators:

PWR:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Overview

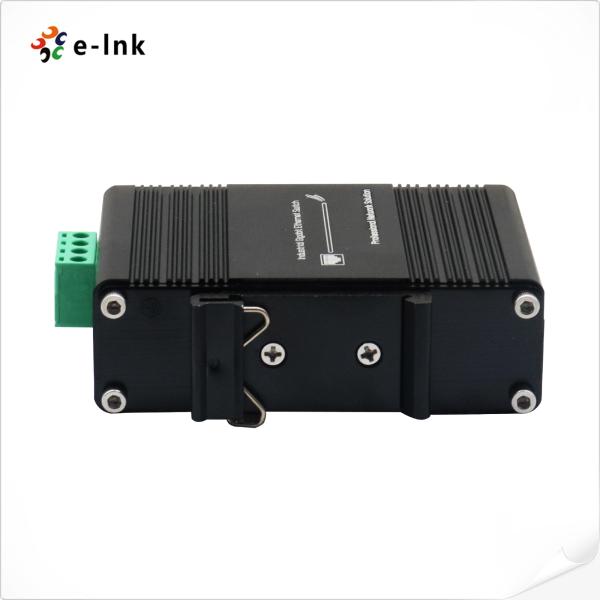

LNK-IMC1200GP60-SFP is a DIN rail type media converter that supports external SFP Modules and meets

EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies

with IEEE802.3at standard.

60W Fiber Optic To Ethernet Converter SFP to 2xRj45 Converter POE++ 48V DC Media Converter

Order Information

Model Description
LNK-IMC1200GP60-SFP Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
