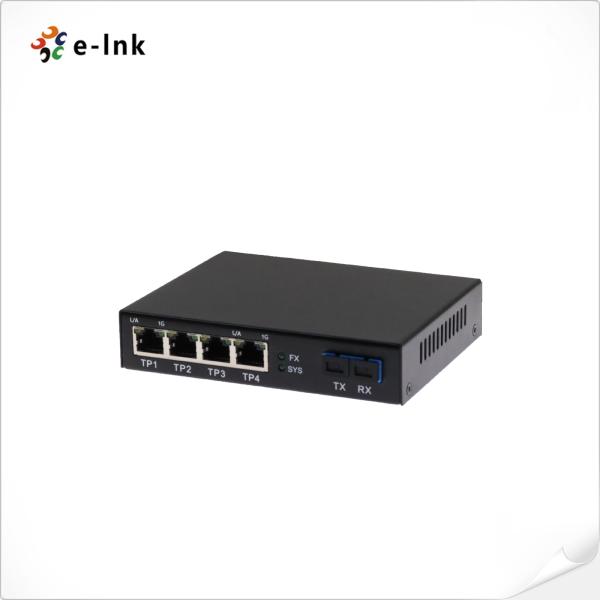

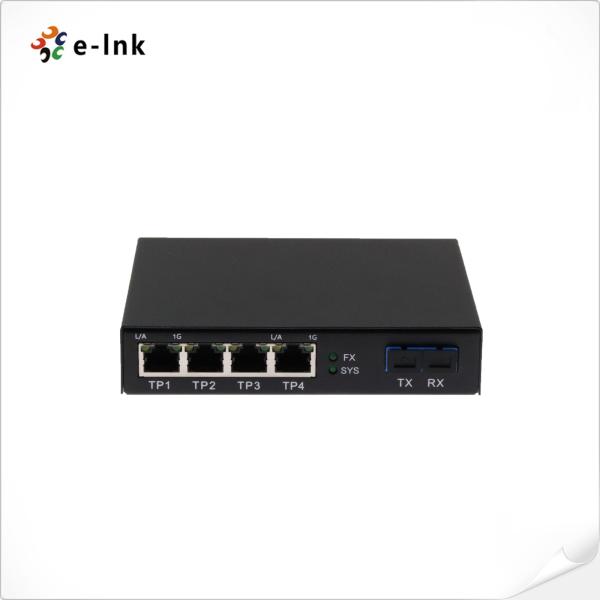

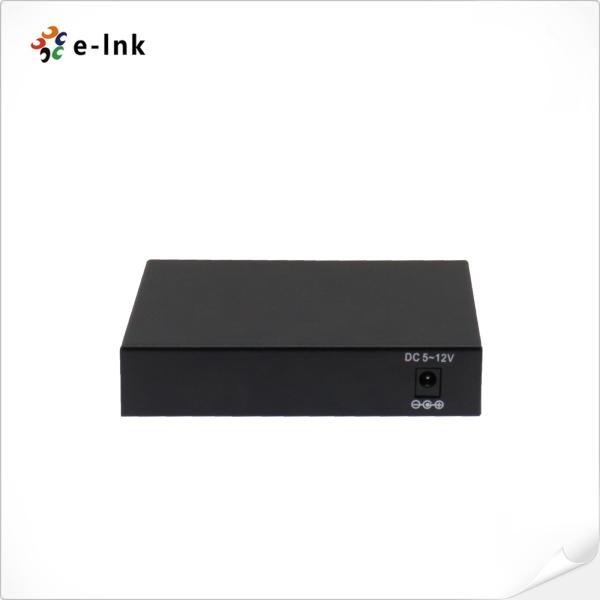

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports
Specifications
Brand Name :
E-link
Model Number :
LNK-LED104G
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Converter Standard Export Package
Keywords :
LED Screen Fiber Converter
Distance :
Single mode fiber 10km
Resolution :
1920*1080@60Hz
Power Supply :
Power input: 5-12V DC
Operating Temperature :
0℃ ~ 55℃;
Description

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

LED Screen Fiber Converter Advantages

· 1 x 10G SC duplex optical port, single mode 10KM distance

· 4 x Gigabit Ethernet ports

· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

Not support VLAN

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

LED Screen Fiber Converter Overview

The E-link LNK-LED104G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

LED Screen Fiber Converter Technical Indexes

Connector Type

1 x 10G SC duplex port

4 x Gigabit Ethernet RJ45 ports

Distance

Single mode fiber 10km

Resolution

1920*1080@60Hz

Compatible brand

NovaStar, Colorlight

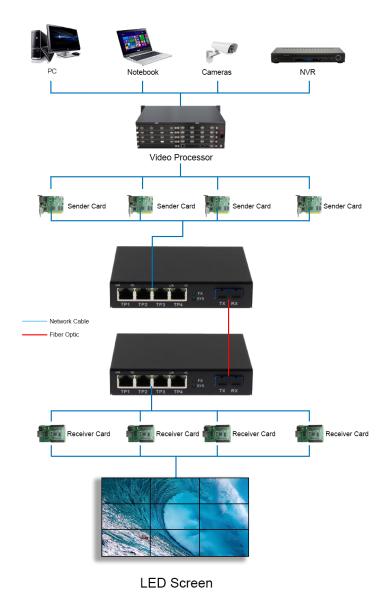

Connection method

Used in pairs, each ports must be connected accordingly,

Such as Device A’s Port-1 must link to Device B’s Port-1

Power Supply

Power input: 5-12V DC

Working Environment

Operating Temperature: 0℃ ~ 55℃;

Storage Temperature: -40℃ ~ 75℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

MTBF

100,000 hours

Dimensions

130 x 105 x 28mm

Weight

350g

LED Screen Fiber Converter Ordering Information

Model

Description

LNK-LED104G

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km.
