Specifications
Brand Name :
E-Link
Model Number :
LNK-IMCRS1100-SFP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1pcs
Price :
$39-270
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5000Pcs/Month
Delivery Time :
3 working days
Description

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232 / RS485 / RS422 Serial Din Rail Installation

Serial to Fiber Media Converter Advantages

  • 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function
  • 1 x SFP port,100Base-FX
  • 1 x RS232/RS485/RS422 Serial port
  • Extensive LED indicators for network diagnostics
  • Built-in surge and static protection
  • 12~48VDC Terminal Block Power Input
  • Supports DIN-Rail & Wall-mount installation

Fiber Ethernet Media Converter Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Ethernet Port:

1 x RJ45

Optical Port:

1 x SFP 100Base-FX

Serial Port

1 x RS232/RS485/RS422 Industrial Terminal

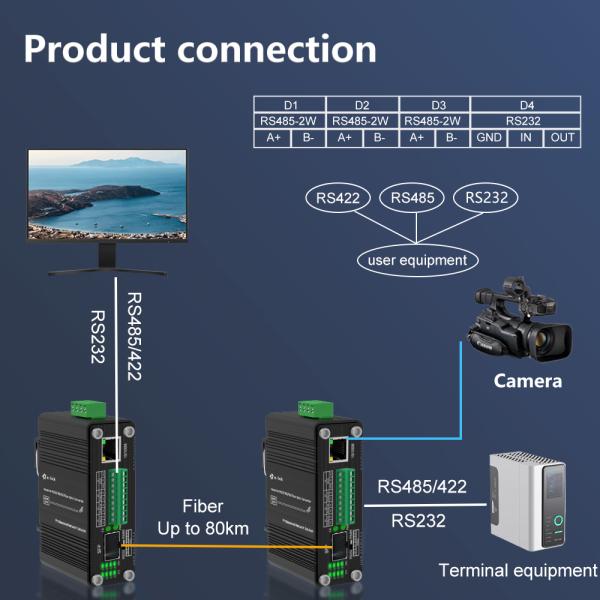

RS232/RS485/RS422

Serial Interface

Industrial Terminal

Signal Ports

1Ch RS232 - 1Mbps

1Ch R485 - 1Mbps

2Ch RS485H- 2Mbps

2Ch RS485H can be grouped into 1Ch High Speed RS422

Baud Rate

RS485/RS422/RS232:4800-460800

Standard

EIA /TIA RS232/485/422

Serial Distance

RS232: 15 meters, RS485/422: 1000 meters

Rate

Max 2Mbps

RS-232

TXD, RXD, GND - Bi-directional

RS-485

D+, D-, GND - Bi-directional

Static protection

15KV electric static discharge (ESD) protection

Surge protection

1500W/sec surge protection

Electrical and Mechanical

Input Power:

12~48VDC, 4-pin terminal block

Power Consumption:

3W Max.

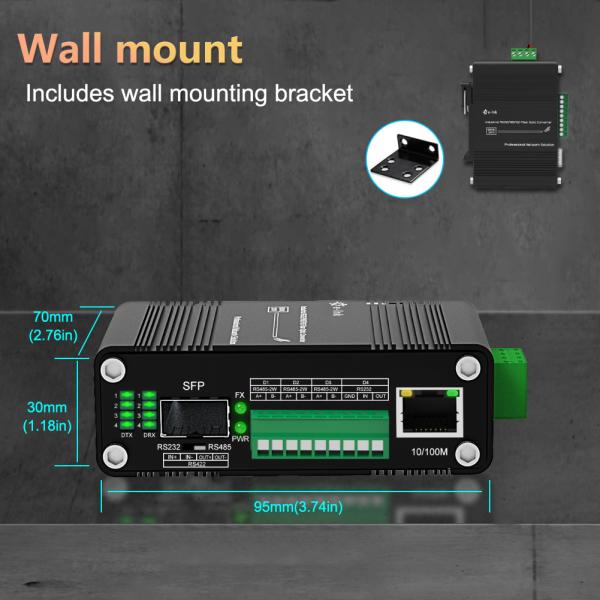

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

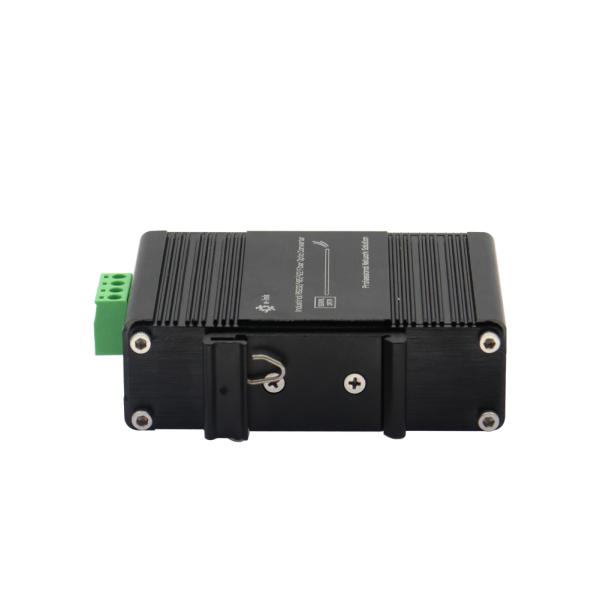

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Mini Industrial 10/100Base-T SFP Fiber Ethernet Media Converter with 1Ch RS232 / RS485 / RS422 serial

Mini Industrial 10/100Base-T SFP Fiber Ethernet Media Converter with 1Ch RS232 / RS485 / RS422 serial

Mini Industrial 10/100Base-T SFP Fiber Ethernet Media Converter with 1Ch RS232 / RS485 / RS422 serial

Din Rail Fiber Modem Ordering Information

Model

Description

LNK-IMCRS1100-SFP

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

SFP Options

SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

SFP module is to be purchased separately.

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

24W/1A 24VDC Power Supply. Open Wire for Terminal Block

Power Supply is to be purchased separately.
