Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter Supports DIN-Rail & Wall-mount installation
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter Supports DIN-Rail & Wall-mount installation
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200G
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
US$65-US$89
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
1000/Month
Delivery Time :
1-3 working days
Packaging Details :
Media Converter Standard Carton Packaging
Max Packet Length: :
9K Bytes
Address Table Size :
2K MAC Addresses
Optical Port: :
1 x SC 1000Base-X
Connector: :
2 x RJ45
Storage Temperature: :
-40°C to 85°C (-40°F to 185°F)
Dimensions (WxDxH): :
95 x 70 x 30 mm
Description

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter


Model : LNK-IMC1200G


Overview

The Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter (LNK-IMC1200G
Series) is a compact, high-performance industrial conversion device engineered for versatile gigabit
Ethernet connectivity in harsh environments. As a Mini Industrial 2-Port 10/100/1000Base-TX to 1000
Base-X Media Converter, it enables efficient media conversion between 2-port 10/100/1000BASE-TX
copper and 1-port 1000BASE-X fiber, ensuring stable high-speed data transmission across different
network media in industrial setups.
​
This Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter features 2-port 10/
100/1000Base-TX Ethernet ports that support both half-duplex and full-duplex modes, providing flexible
compatibility with a wide range of gigabit Ethernet devices such as high-resolution IP cameras, enterprise-
grade switches, and industrial routers. Its advanced conversion technology ensures minimal latency and
high throughput, making it suitable for bandwidth-intensive applications in factory automation and large-
scale surveillance systems.​
Built as a hardened industrial product, the Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X
Media Converter operates reliably within a wide temperature range of -40°C to 75°C and is housed in a
ruggedized aluminum casing, offering exceptional resistance to extreme vibrations, electromagnetic interference,
and harsh weather conditions. Its compact design allows for easy mounting on a DIN rail or in distribution boxes,
simplifying installation in space-constrained industrial environments. Whether deployed in manufacturing facilities,
outdoor monitoring networks, or industrial control systems, this converter combines miniaturized form with robust
performance, making it a trusted solution for multi-port gigabit Ethernet media conversion in demanding industrial
settings.​
​

Features

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3z 1000Base-X

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

5W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

SPD:

Ethernet Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Ordering information


Model

Description

LNK-IMC1200G

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC1200G-20

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC1200G-S20

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

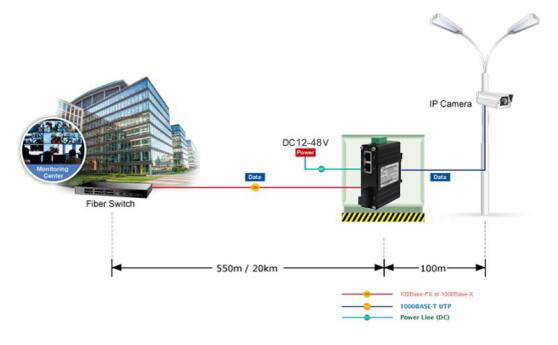

Application

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter Supports DIN-Rail & Wall-mount installation
