Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Specifications
Brand Name :
E-link
Model Number :
ZP-HIMC1200G Series
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Mounting Options :
DIN-Rail / Wall-mount
Dimensions (WxDxH) :
95 x 70x 36mm
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Input Power :
12~48VDC, 2-pin terminal block
Casing :
Aluminum Case
Description

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter


Advantages

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Overview

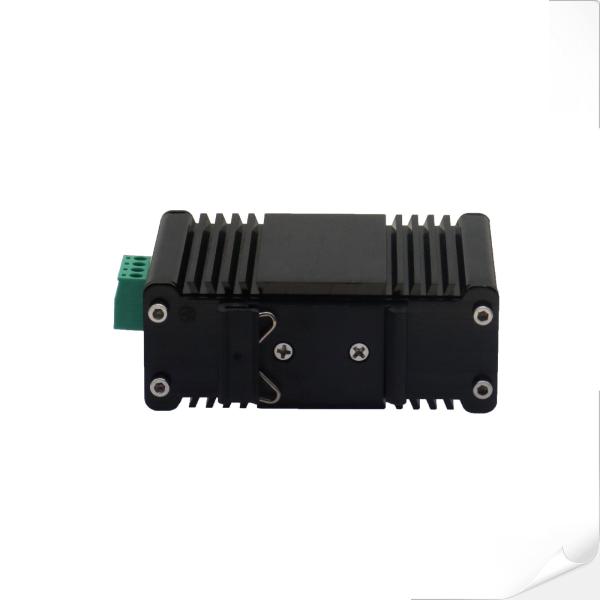

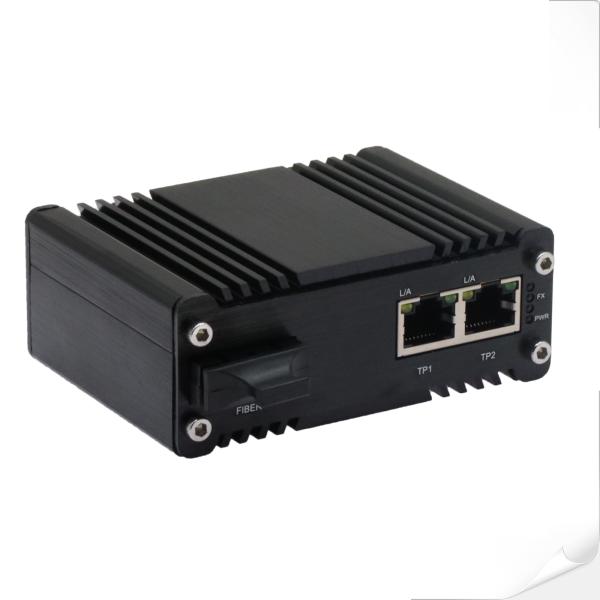

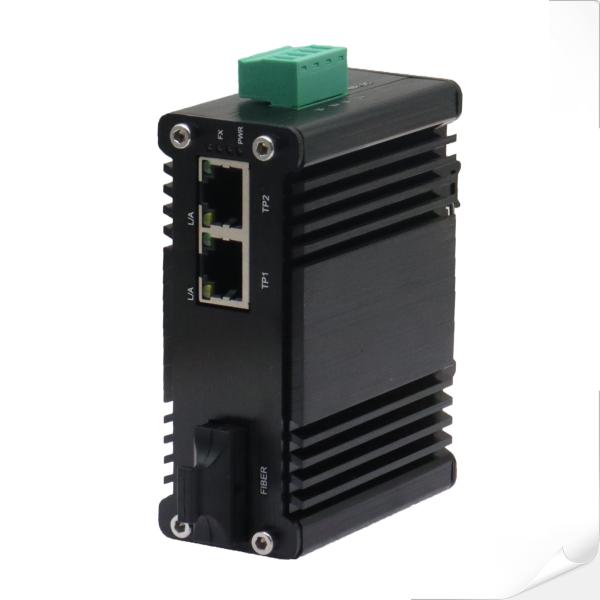

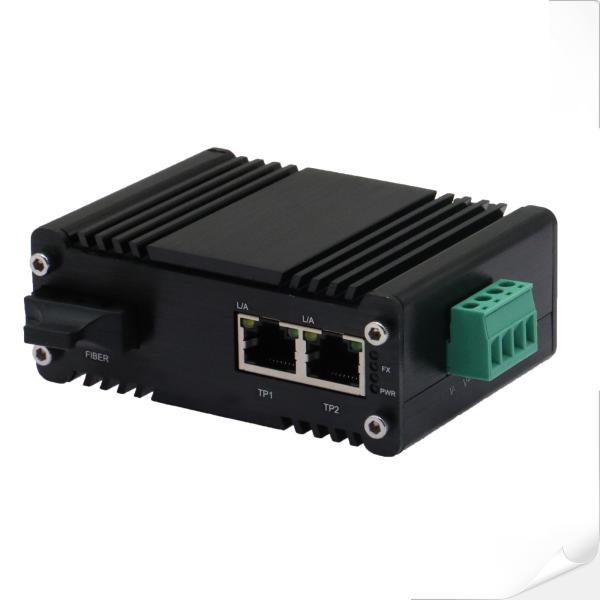

The ZP-HIMC1200G Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, and easy to mount on a DIN rail or in distribution boxes.


Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter



Application

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter



Ordering Information

Model

Description

ZP-HIMC1200G

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m

ZP-HIMC1200G-20

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km

ZP-HIMC1200G-S20

Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
