10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-3011SFP-DIP
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Operating Temperature: :
0~70ºC
Dimension (LxWxH) :
94x70x26mm
Power consumption :
<40W (the chassis at full load), <2W
Conversion means :
Store and Forward mode or Cut-Through mode
Description

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Product Advantages

► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)

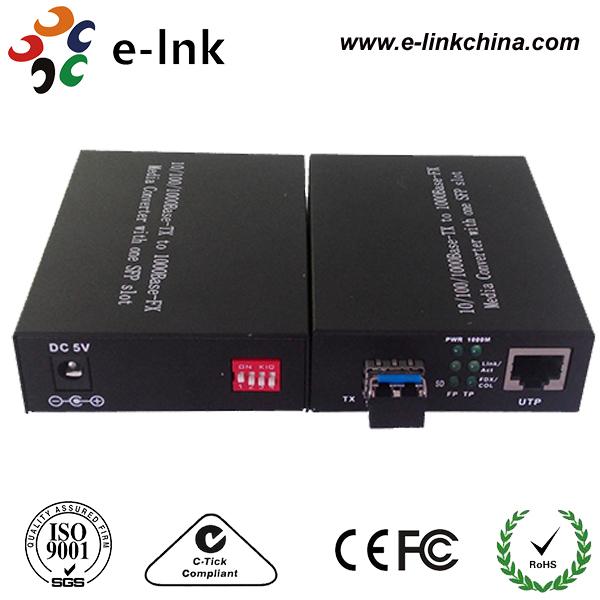

► Support DIP Switch Function

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of extra-long VLAN packets

Overview

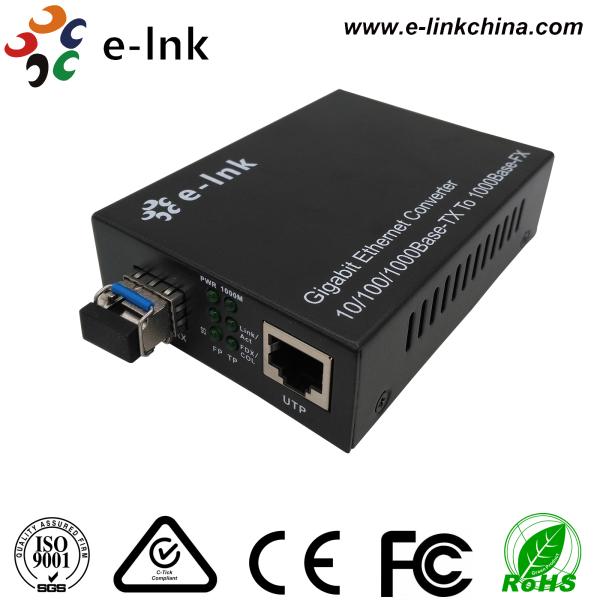

The LNK-3011SFP-DIP is equipped with one 10/100/1000Base-T port and one Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The LNK-3011SFP provides high reliability and flexibility to extend the media transmission distance up to 550m, 10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

50/125μm or 62.5/125μm multi-mode fiber cable provides up to 220 & 550 meters

9/125μm single-mode cable provides long distance of 10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/ 120km (vary on SFP module)

Port

Copper: 1 x 10/100/1000Base-T port

Fiber: 1 x 1000Base-X SFP slots

Conversion means

Store and Forward mode or Cut-Through mode

Buffer space

Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

<19-9

MTBF

100,000 hours

LED indicator

PWR (power supply), 1000M (UTP Port Speed), LNK/ACT FX (Fiber Port Link/Action Status), LNK/ACT TX (UTP Port Link/Action Status), SD (Fiber Signal Status), FDX/COL (UTP Port Full Duplex)

Power supply

External: AC90~264V/DC100~380V input, 5V1A output

Power consumption

<40W (the chassis at full load), <2W

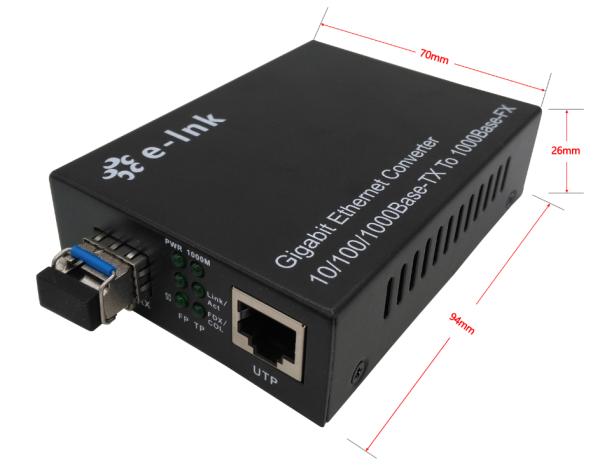

Dimension (LxWxH)

94x70x26mm

Operating temperature

0~70ºC

Operating humidity

5%~90%

Maintaining temperature

-45~80ºC

Maintaining humidity

5% ~ 90% non-condensing

Application

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Ordering Information

LNK-3011SFP-DIP

10/100/1000Base-T to 1000Base-X SFP Media Converter with DIP switch, SFP Slot, LC, without SFP Modules, standalone, external power adaptor
