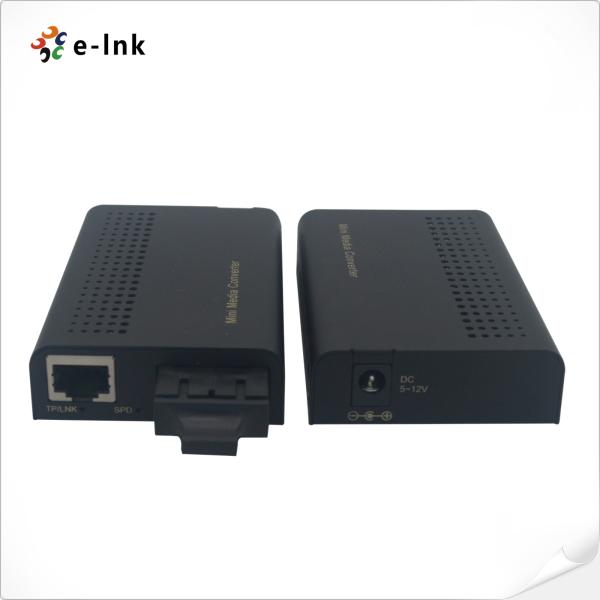

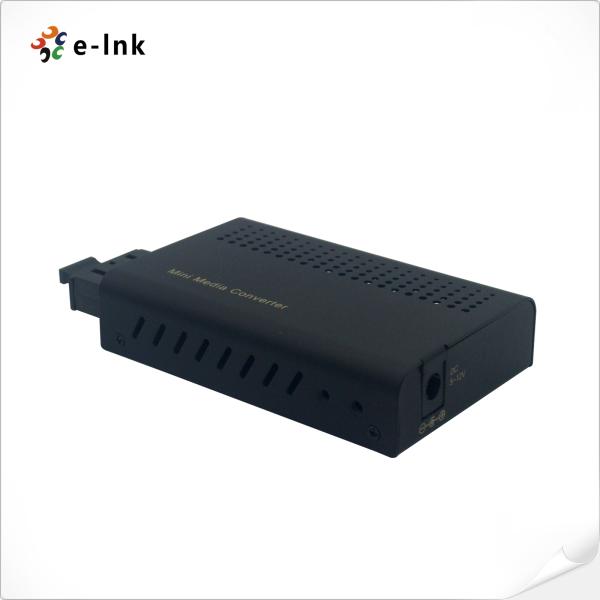

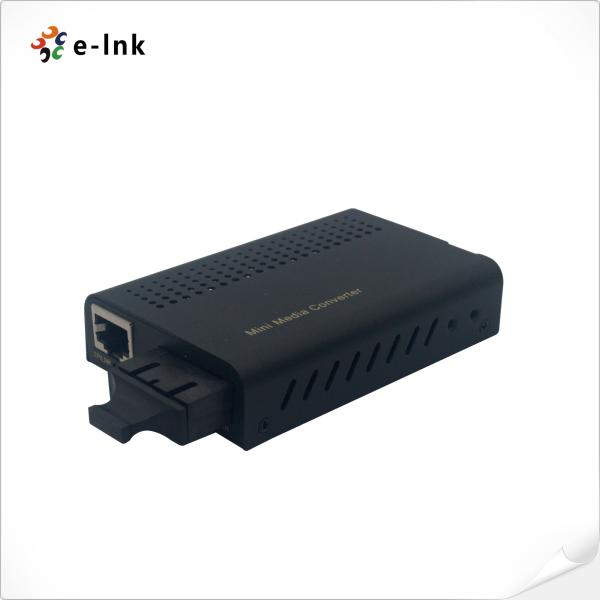

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-MN-100MC-SC
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiated
Payment Terms :
T/T,PayPal
Supply Ability :
1000pcs/mouth
Delivery Time :
5-12working days
Packaging Details :
standard export package

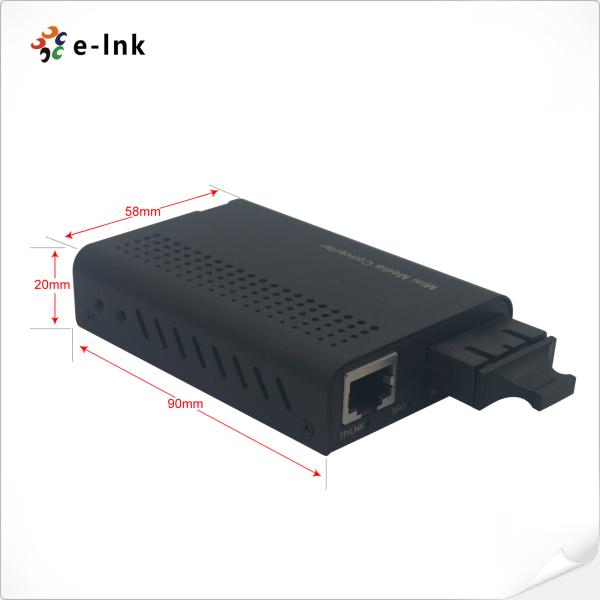

Dimensions :
58mm (W)×20mm (H)×90 mm (L)
Access mode :
10/100Mbps
Wavelength :
850nm/1310nm/1550nm
Input voltage :
DC 5V~12V
Power consume :
<3W
Operating Temperature :
0~50ºC
Description

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Advantage

► 10/100Base-TX UTP to 100Base-FX fiber media converter

► Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards

► SC Fiber Port

► DIP switch to set different configuration

► LFP (Link Fault Pass-through) support

► Support jumbo frame

► Compact package size

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Overview

The mini 10/100Base-TX to 100Base-FX media converter is fully compliant with IEEE802.3 10Base-T,

IEEE802.3u 100Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control

for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the

different operating mode (UTP port speed 10M or100M, full or half duplex mode, pass through mode,

LFP enable or disable).

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Technical Indexes

Parameter

Specifications

Access mode

10/100Mbps

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

100Base-FX

Wavelength

850nm/1310nm/1550nm

Transmission distance

Multi-mode:
2km

Single mode:
20/40/60/80/100 km;

Cat-5 twisted pairs: 100m

Conversion means

Store and Forward mode or Cut-Through mode

Flow control

Full duplex: flow control;

Half duplex: back pressure

Input voltage

DC 5V~12V


Power consume

<3W

Operating temperature

0~50ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

58mm (W)×20mm (H)×90 mm (L)

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Ordering Information

Item

Description

LNK-MN-100MC-SC

Mini-type 10/100Base-TX to 100Base-SX Media Converter, Multi mode, 1310nm, SC, 2KM, standalone, external power adaptor

LNK-MN-100MC-SC-20

Mini-type 10/100Base-TX to 100Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone, external power adaptor
