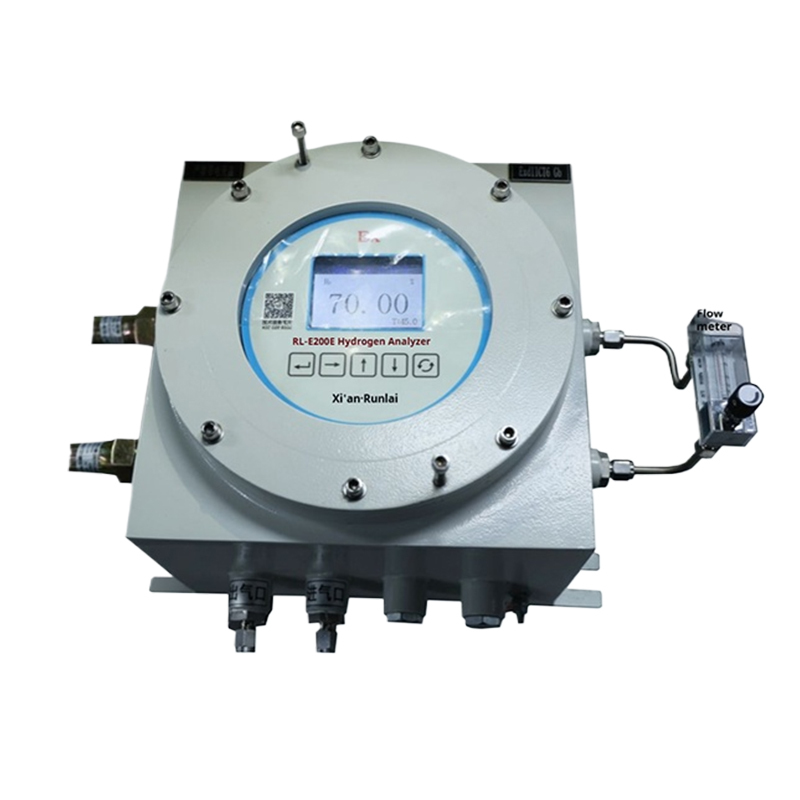

Explosion Proof Online Hydrogen Purity Analyzer H2 Analyzer Industrial Gas Meter
Explosion Proof Online Hydrogen Purity Analyzer H2 Analyzer Industrial Gas Meter
Explosion Proof Online Hydrogen Purity Analyzer H2 Analyzer Industrial Gas Meter
Explosion Proof Online Hydrogen Purity Analyzer H2 Analyzer Industrial Gas Meter
Specifications
Place of Origin :
Xi'an, Shaanxi, China
Packaging Details :
Export Standard
type :
Hydrogen Detector
Delivery Time :
appointed time
Certification :
ISO certification
Accuracy Class :
High Accuracy
Model Number :
E200Ex
MOQ :
1
Price :
Negotiable
Brand Name :
Runlai
Payment Terms :
L/C、D/A、D/P、T/T
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Target Gas :
Hydrogen
Alarm Mode :
Sound
Description

Measurement principle: Microfluidic thermal conductivity method;

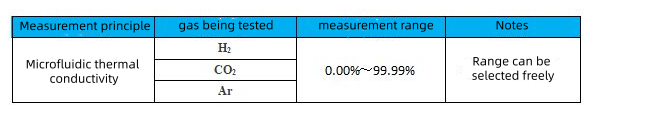

Measurement range and scale:

Explosion Proof Online Hydrogen Purity Analyzer H2 Analyzer Industrial Gas Meter

Accuracy: ±1.5%FS;

Repeatability: ±1%FS;

Stability: ±1%FS/7 days;

Response time: τ90 ≤ 30S;

Preheating time: ≤ 10min;

Sample gas flow rate: (400±40)mL/min;

Sample gas pressure: 0.05MPa ≤ inlet pressure ≤ 0.25MPa;

Analog output: (4～20)mA standard signal; (0～10)V available - please specify at the time of order;

Digital output: Standard RS485 communication port, enabling two-way communication with a computer;

Contact output: Dual relay outputs of 220VAC, 2A or 24VDC, 1A;

Operating environment: Temperature: -10°C to +45°C; Humidity: ≤90%RH;

Power supply: (220±22)VAC, (50±5)Hz;

Weight: Approximately 30Kg;

Explosion-proof grade: EXdII CT6;

Service life: >12 months (under normal operating conditions according to specifications);

Gas interface: Φ6 stainless steel pipe (customizable according to customer requirements);

Mounting method: Wall-mounted or horizontal installation;

Key Features

Features a high-performance embedded integrated TFT true-color display screen;

Built-in insulation device to reduce the impact of sample gas temperature and environmental changes on measurement accuracy;

Uses imported high-performance sensors with long life, high sensitivity, and fast response time;

Explosion-proof design with full Chinese user interface menu and intuitive infrared remote control operation;

Widely applicable to online explosion-proof detection of hydrogen content in petrochemical, natural gas, metallurgy, electronics and power, machinery manufacturing, and other industries.
