H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
Specifications
Brand Name :
Runlai
type :
Hydrogen Detector
Packaging Details :
Export Standard
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Certification :
ISO certification
MOQ :
1
Delivery Time :
appointed time
Place of Origin :
Xi'an, Shaanxi, China
Model Number :
S200
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Hydrogen
Price :
Negotiable
Alarm Mode :
Sound
Description

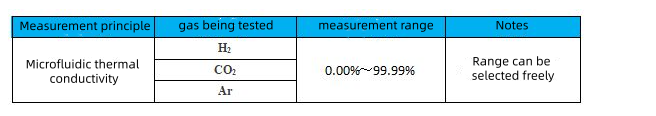

Measurement Principle: Imported microfluidic thermal conductivity method

Measurement Principle/Range:

Technical Specifications

Accuracy: ±1.5%FS;
Repeatability: ±1% F.S;
Stability: ±1% F.S/7d;
Sample Gas Flow Rate: 400±10ml/min;
Preheating Time: ≤ 10min;
Sample Gas Pressure: 0.05MPa ≤ Inlet Pressure ≤ 0.25MPa;
Analog Output: Isolated 4 – 20mA output signal, load ≤ 5000Ω;
Digital Output: Standard RS485/RS232 communication ports, enabling two-way communication with computers;
Operating Environment: Temperature: -15°C to +45°C;
Power Supply: (220±22)VAC, (50±5)Hz;

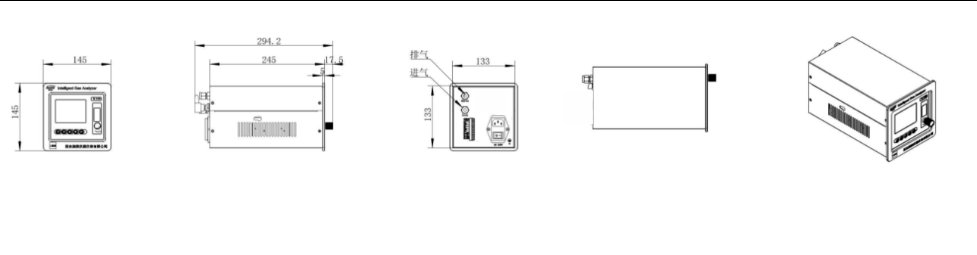

Dimensions: 168mm(W) × 168mm(H) × 265mm(D);
Mounting Dimensions: 153mm×153mm, compatible with 138*138 size;
Service Life: >12 months (under normal operating conditions);
Gas Path Interface: Φ6 hose (customizable according to customer requirements);
Mounting Method: Embedded installation;
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter

Key Features

  • Utilizing imported thermal conductivity sensors combined with microcontroller control technology, this device features high measurement accuracy and ease of use.

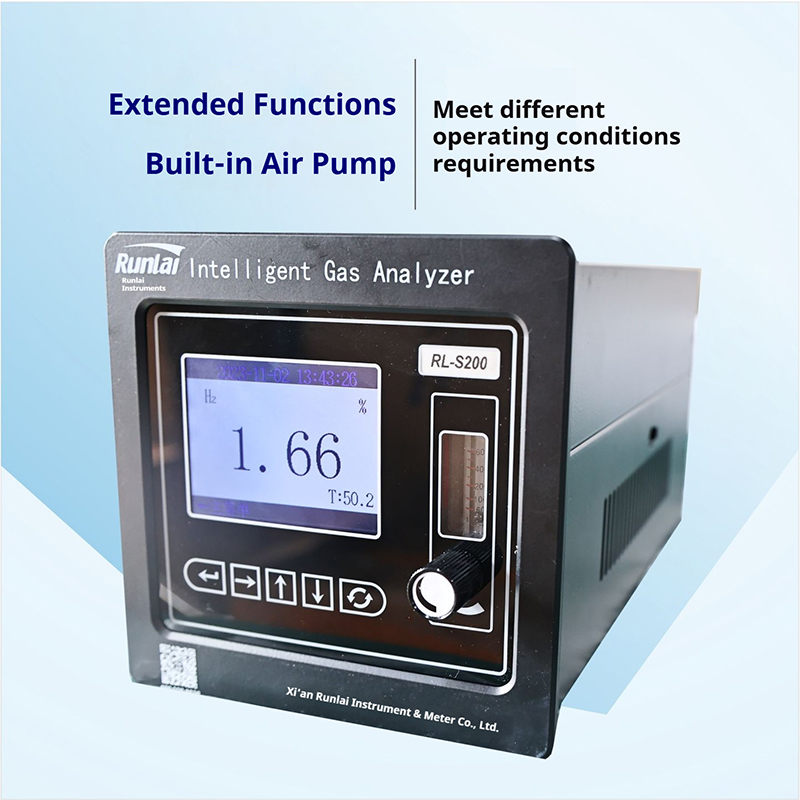

  • 128*64 LCD display for intuitive and simple operation;
  • Long lifespan, high accuracy, and fast response time;
  • Built-in insulation to minimize the impact of sample gas temperature and environmental changes on measurement accuracy;

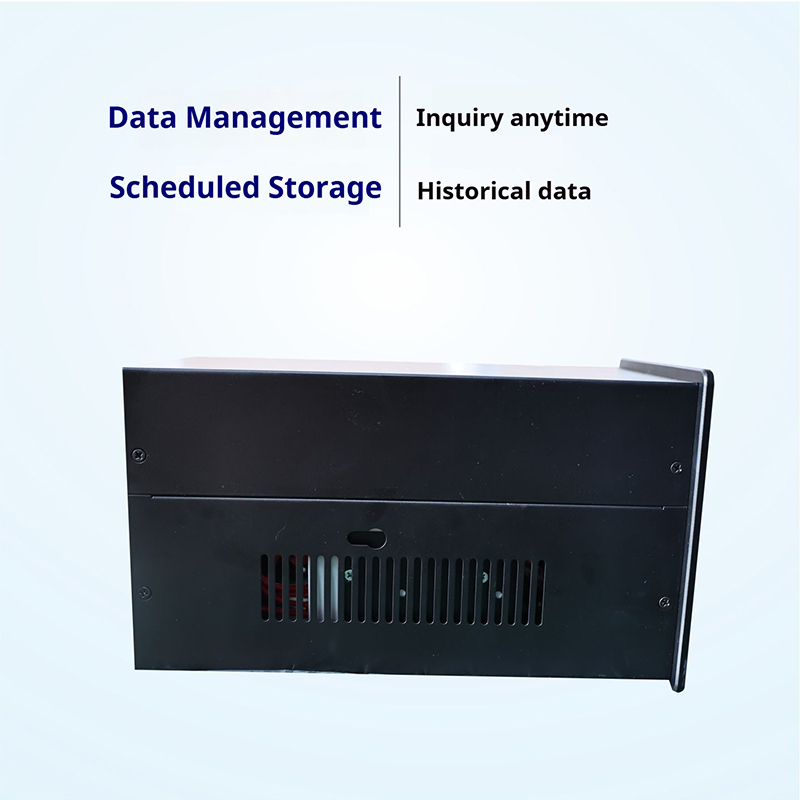

  • Scheduled automatic data storage function, allowing for real-time data retrieval;

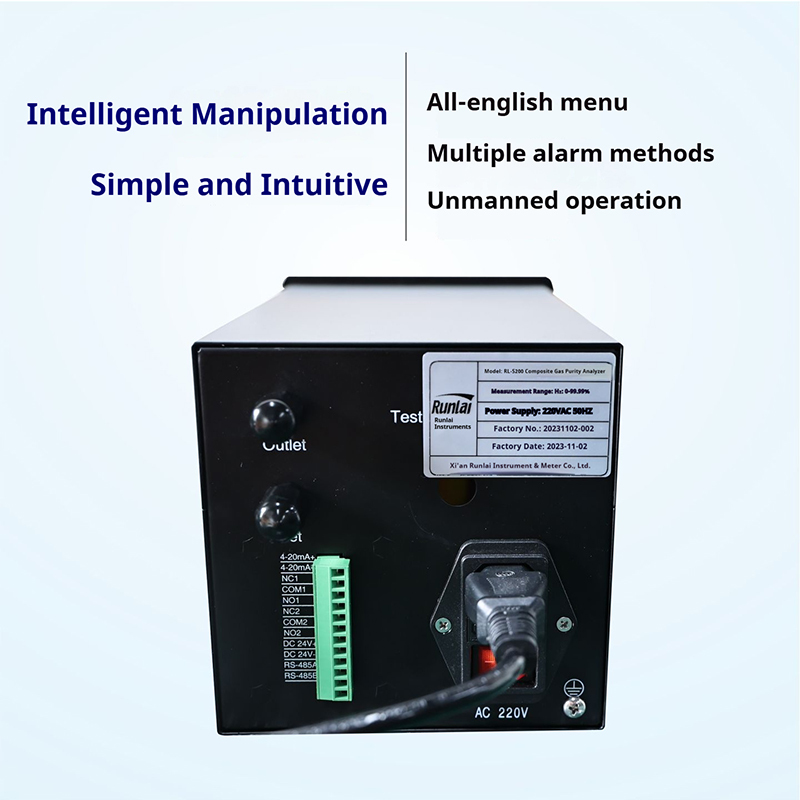

  • Standard 4 – 20mA current output and external ports such as RS-232 or RS-485 (optional);
  • Can automatically record hydrogen content at set intervals when unattended, with up to 3000 data points stored.
  • Widely used in industries such as petroleum, chemical, metallurgy, and power where hydrogen content detection is required.
H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter H2 Hydrogen Gas Detector Fast Response Customizable Industrial Gas Meter
