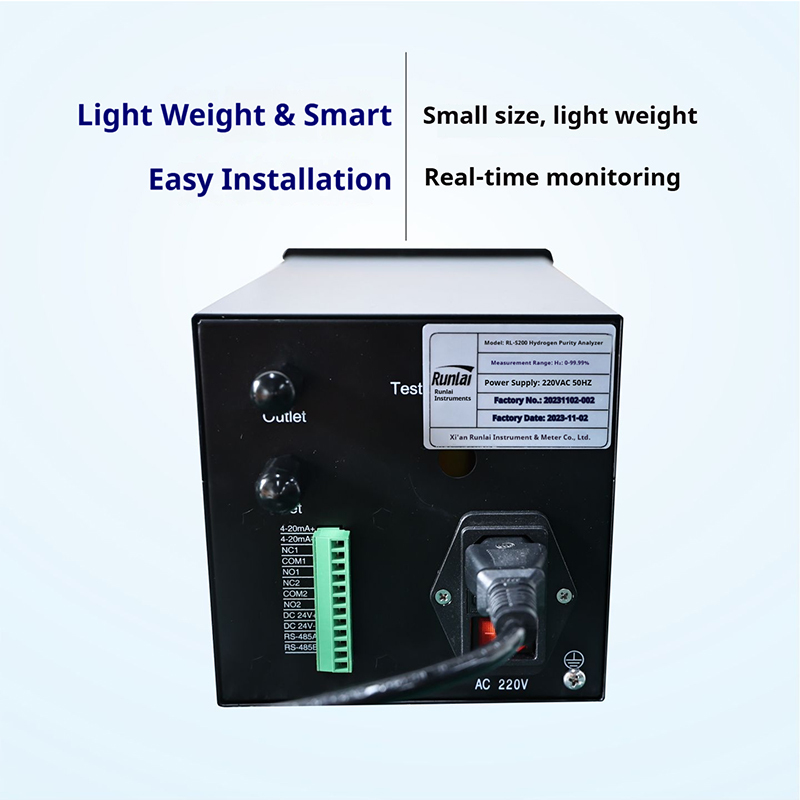

0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm
0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm
0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm
0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm
Specifications
type :
Hydrogen Detector
Certification :
ISO certification
Accuracy Class :
High Accuracy
Model Number :
YH200
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
MOQ :
1
Delivery Time :
appointed time
Payment Terms :
L/C、D/A、D/P、T/T
Price :
Negotiable
Target Gas :
Hydrogen
Brand Name :
Runlai
Alarm Mode :
Sound
Place of Origin :
Xi'an, Shaanxi, China
Packaging Details :
Export Standard
Description

Measurement Principle: Imported microfluidic thermal conductivity method

Measurement Principle/Range:

0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm

0-1000ppm Industrial H2 Gas Analyzer Hydrogen Gas Detector With Sound Alarm

Parameter Value
Accuracy ±1.5%F.S
Resolution 0.01%
Repeatability ±1%
Stability ±1%F.S /7d
Response Time T90≤10 S
Storage Interval 1S-99 min
Number of Stored Points Millions+
Instrument Lifespan 6 years for the whole unit, 2-3 years for the sensor (under proper operating conditions)
Operating Voltage 24VDC, 1A
Total Power Consumption ≤10W
Digital Signal Standard RS485/RS232 communication ports, enabling two-way communication with computers
Analog Output 4～20mA standard output signal, load resistance less than 500 ohms (0～10V optional)
Installation Method Embedded installation
Dimensions Analyzer: 150mm(w) × 150mm(h) × 200 mm(d)
Secondary Meter: 160mm(w)×80mm(h)×170mm(d) (dimensions can be customized)
Opening Size Analyzer: 136mm(w)×136mm(h)
Secondary Meter: 150mm (w)×75mm(h)
Explosion-proof Mark Ex ib IIC T6 Gb
Inlet and Outlet Ports Φ6 hose (can be customized according to customer requirements)
Total Weight 1.5kg
Ambient Temperature –25℃～＋55℃
Ambient Humidity ≤90%RH
Inlet Pressure 0.05 MPa≤Inlet Pressure≤0.25Mpa
Sample Gas Flow Rate (400±50)ml/min
Sample Gas Requirements Dust-free, water-free, oil-free
  • Imported electrochemical sensor, featuring long lifespan, high accuracy, and fast response;
  • Compact and lightweight, easy to install; split explosion-proof design; primary meter with on-site display function;
  • Remote transmission of transmitter output signal up to over 500 meters;
  • Upper and lower limit control points can be set arbitrarily within the full range;
  • Alarm points can be set arbitrarily within the full range.

Widely used in industrial production processes such as chemical engineering, metallurgy, coal mining, environmental protection, and biofermentation for online detection and analysis of hydrogen content in intrinsically safe and non-explosion-proof applications.
