Product Specifications

Measurement Principle: Imported Microflow Thermal Conductivity Type

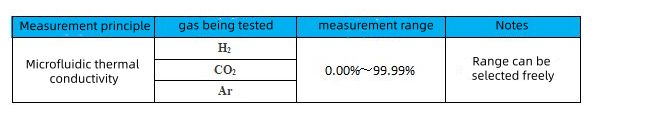

Measurement Principle/Range:

Accuracy: ±1% FS;

Repeatability: ±1% FS;

Stability: ±1% FS/7 days;

Sample Gas Flow Rate: 400 ± 10 ml/min;

Response Time: T90 ≤ 40S;

Preheating Time: ≤ 10 minutes;

Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Simulated Output: Isolated 4-20mA standard signal, load resistance less than 500 ohms (0-10V selectable)

Digital Output: Standard RS485/RS232 communication ports, capable of two-way communication with a computer;

Sample Gas Pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

Operating Environment: Temperature: -15℃ to +45℃;

Humidity: ≤ 90% RH;

Operating Power Supply: 110V to 240VAC, 50/60Hz;

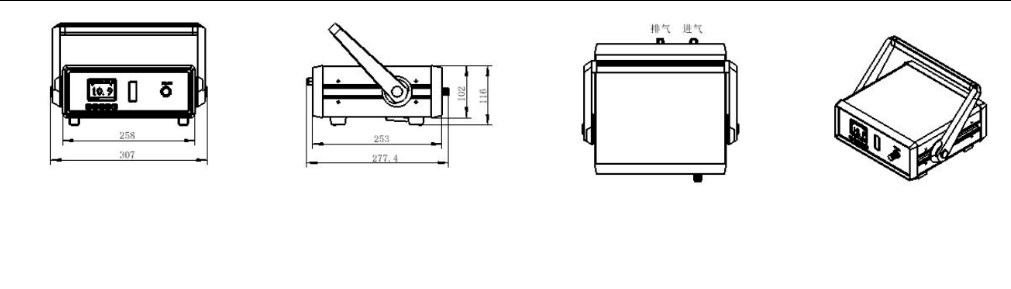

Dimensions: 168mm (width) × 168mm (height) × 265mm (depth);

Installation Dimensions: 153mm (width) × 153mm (height);

Service Life: > 12 months (under normal use conditions);

Gas Path Interface: Φ6 flexible hose (can be customized according to customer requirements);

Installation Method: Embedded installation;

Key Features

• Using imported thermal conductivity sensors, combined with single-chip microcomputer control technology, it forms a product with high measurement accuracy and simple operation.
• 128*64 LCD display, intuitive display, simple and convenient operation;
• Long service life, high accuracy, fast response;
• Built-in insulation device to reduce the influence of sample gas temperature and environmental changes on measurement accuracy;

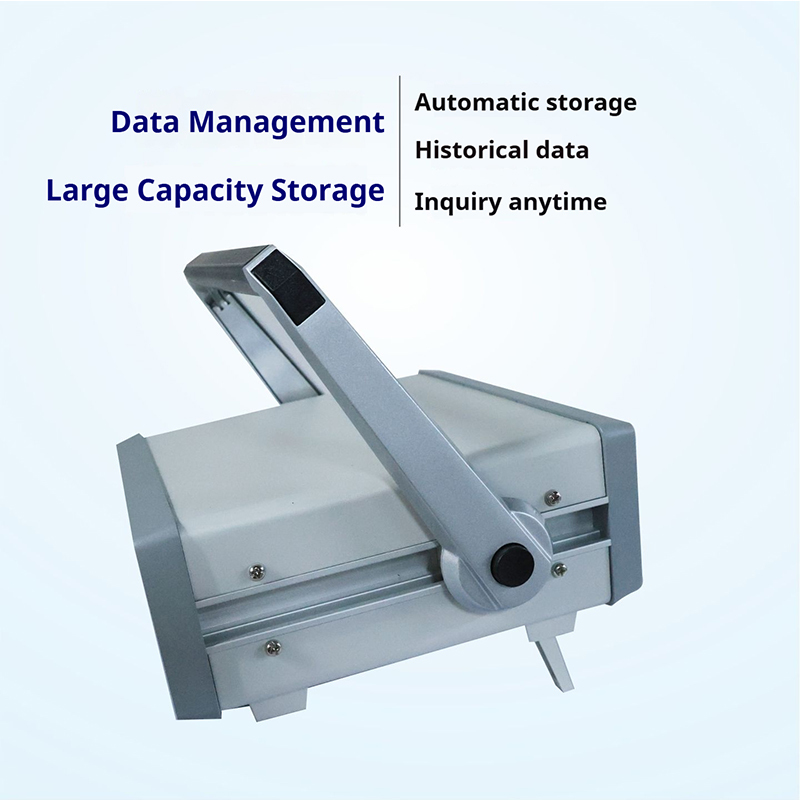

• Automatic timing storage function, allowing for immediate data viewing;
• Alarm points can be set arbitrarily within the full range;
• The instrument adopts full Chinese menu operation, easy to understand, simple and reliable, with control contact output, self-alarm when exceeding limits (beep), and can be freely set control mode;
• Standard 4-20mA current output and RS-232 or RS-485 (selectable one) external ports;
• When there is no operator, it can record hydrogen content at regular intervals, and can store up to 3000 data.
• When the hydrogen content in the measured sample gas reaches the set alarm point, the instrument will automatically alarm.
• Using a new type of gas path flow stabilization system; it has the advantages of high technology, high accuracy, fast response, stable performance, complete functions, convenient operation, continuous gas analysis process, etc.;
• It is widely used in some occasions that require the detection of hydrogen (argon, carbon dioxide) content in industries such as petroleum, chemical industry, metallurgy, and power.
