Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector
Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector
Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector
Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector
Specifications
Place of Origin :
Xi'an, Shaanxi, China
Measure principle :
Microfluidic thermal conductivity type
Environmental temperature :
-25°C ~ +55°C
Overall machine weight :
3.0 kg
Brand Name :
Runlai
Model Number :
RL-B200
Target Gas :
Hydrogen
Alarm Mode :
Sound
Payment Terms :
L/C、D/A、D/P、T/T
type :
Hydrogen Detector
material :
Metal
Precision :
≤±1.5%F.S
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Overall dimensions :
307mm (width) x 116mm (height) x 277mm (depth)
Delivery Time :
appointed time
Accuracy Class :
High Accuracy
Price :
Negotiable
Certification :
ISO certification
MOQ :
1
customized support :
OEM/ODM/OBM/Software Reengineering
Operating voltage (customizable) :
220VAC, 50Hz (with built-in charging protection function)
Packaging Details :
Export Standard
Measuring range :
0.00%~99.99% (range selectable)
Inlet pressure :
0.05 MPa ≤ Inlet pressure ≤ 0.25 MPa
Response time :
T90≤15S
Description
Product Introduction

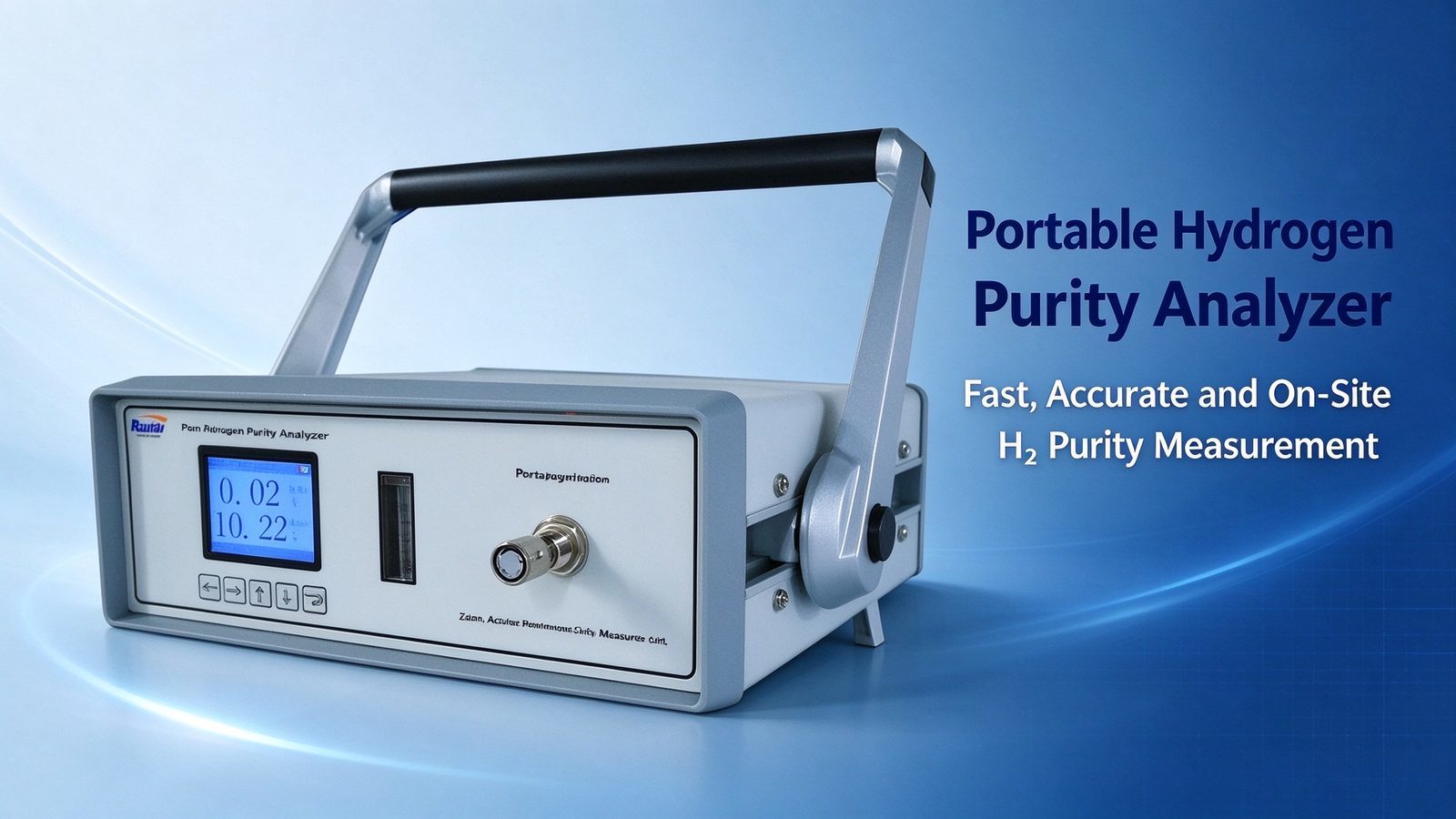

The RL-B200 portable hydrogen purity analyzer is a field gas detection device suitable for industries such as petroleum, chemical engineering, metallurgy, and power. It can be used to analyze the purity of various gases including hydrogen, argon, and carbon dioxide.

Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector

This instrument features a portable design with a built-in high-capacity battery, enabling long-term continuous operation. It also comes with a Chinese-language user interface and data storage capabilities, making it ideal for quick and convenient on-site testing in a variety of industrial environments.Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector

Product Features
  • Convenient Design and Long Battery Life

    Lightweight and compact design with a large-capacity battery, enabling long continuous operation on a single charge to meet the needs of mobile on-site testing.

    Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector

  • Stable Measurements and Environmental Adaptability

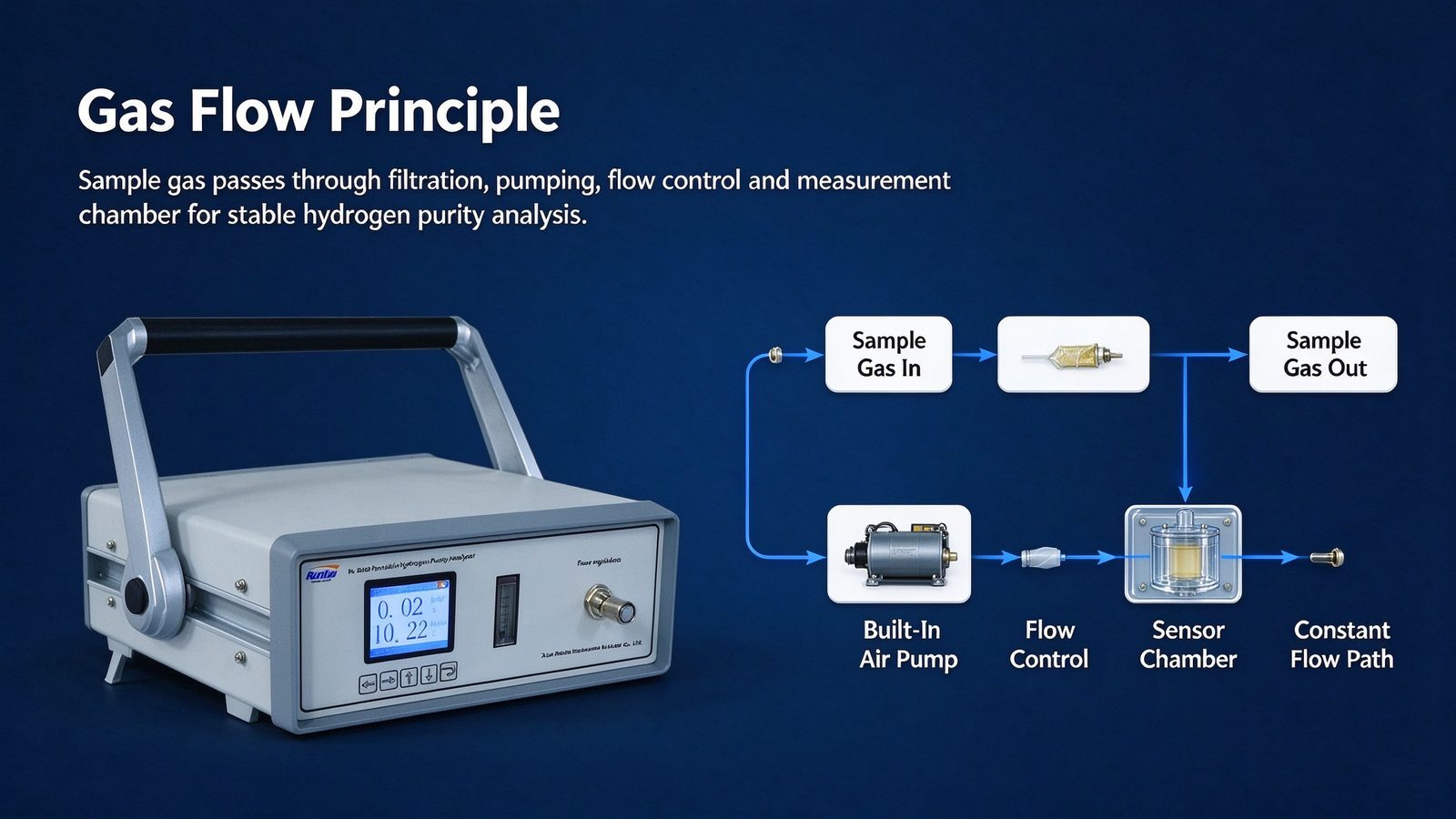

    Built-in temperature compensation system combined with a stable flow gas path design effectively reduces the impact of environmental and sample gas temperature changes on measurement accuracy.

    Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector

  • Intelligent Operation and Data Recording

    Equipped with a full Chinese menu for simple and intuitive operation, featuring alarm settings and automatic data storage for easy on-site viewing and management of historical data.

  • Flexible Sampling and Optional Features

    Supports optional configurations such as built-in pumps to adapt to different on-site sampling needs, enhancing the instrument's versatility in various working conditions.

    Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector

    Customizable Hydrogen Gas Analyzer Microfluidic Thermal Conductivity Portable H2 Gas Detector
