Measurement principle: Microfluidic thermal conductivity method;

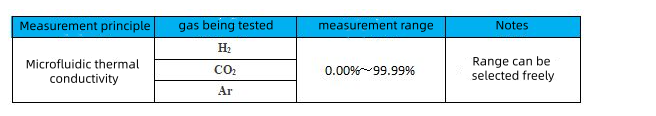

Measurement principle/range:

Accuracy: ±1.5%FS;

Repeatability: ±1%FS;

Stability: ±1%FS/7 days;

Response time: τ90 ≤ 30S;

Preheating time: ≤ 10 min;

Sample gas flow rate: (400 ± 40) mL/min;

Sample gas pressure: 0.05 MPa ≤ inlet pressure ≤ 0.25 MPa;

Operating environment: Temperature: -15°C to +45°C;

Humidity: ≤ 90%RH;

Power supply: 220V–240VAC, 50/60Hz;

Analog output: Isolated 4–20mA standard signal, load resistance < 500 ohms (0–10V optional)

Digital output: Standard RS485/RS232, capable of two-way communication with computers;

Contact output: Dual relay outputs of 220VAC, 2A or 24VDC, 1A;

Sample gas pressure: 0.05MPa ≤ inlet pressure ≤ 0.25MPa;

Operating environment: Temperature: -15°C to +45°C;

Humidity: ≤90%RH;

Power supply: 110V–240VAC, 50/60Hz;

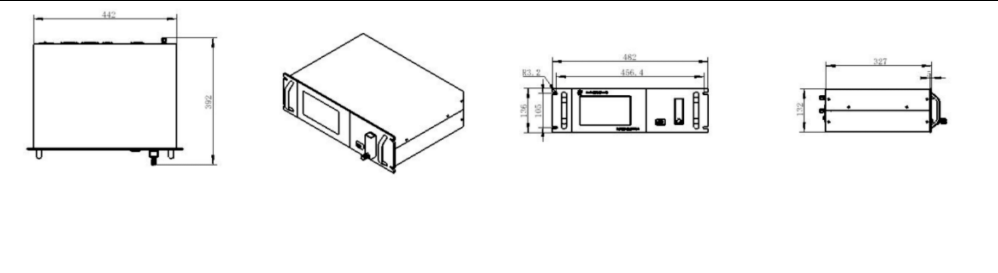

Dimensions: 480mm (width) × 136mm (height) × 370mm (depth);

Mounting dimensions: 440mm (width) × 136mm (height);

Weight: Approximately 4.5kg;

Service life: >12 months (under normal operating conditions);

Gas interface: Φ6 stainless steel tube (customizable according to customer requirements);

Mounting method: Embedded installation;

Key Features

• Full Chinese touch menu for easy configuration, calibration, testing of instrument parameters, and quick operations such as setting historical records and curves by time;
• Can display measurement values, historical curves, range, status, and various parameter setting interfaces simultaneously;
• Uses imported sensors with high accuracy and fast response;
• Automatic storage function at set intervals during unattended operation, with stored data available for viewing at any time;
• Built-in temperature compensation to reduce the impact of sample gas temperature and environmental changes on measurement accuracy;
• Standard 4–20mA current output and external ports such as RS-232 or RS-485 (either available);

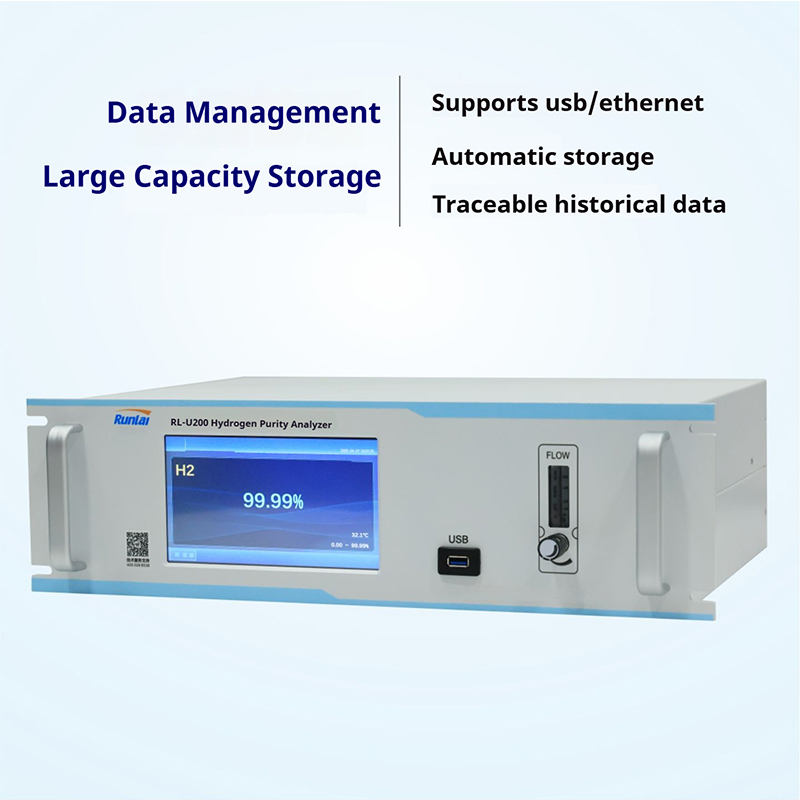

• 64MB memory and 128MB FLASH with USB interface for convenient data storage;
• External ports such as RS-232 or RS-485 (either available);

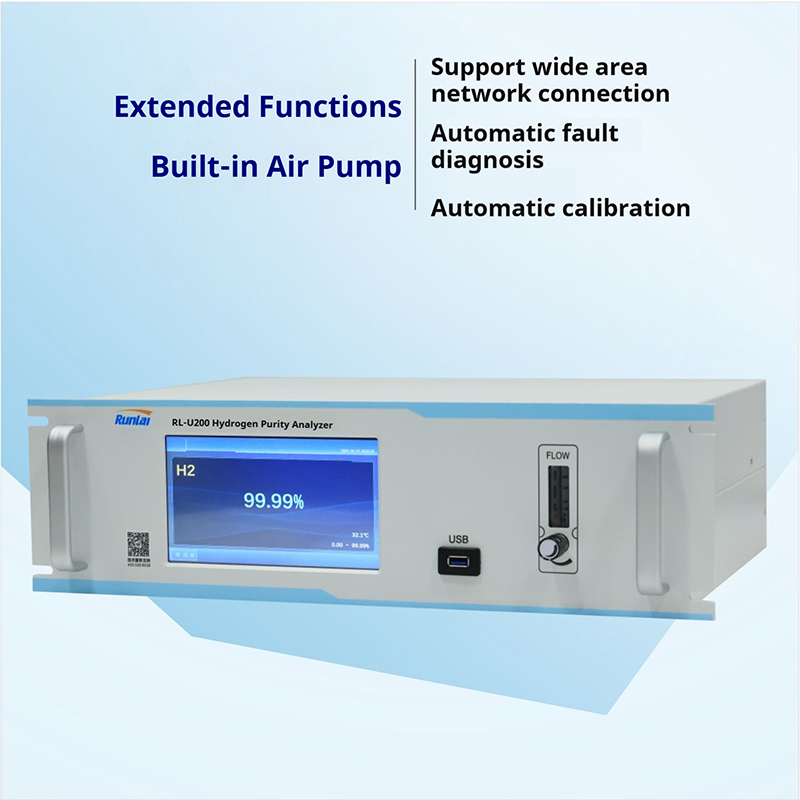

• Ethernet port for connection to wide area networks;
• Features a new type of gas flow stabilization system; offers advantages such as advanced technology, high accuracy, fast response, stable performance, comprehensive functionality, easy operation, and continuous gas analysis process;
• Built-in suction pump (optional).

Widely used in industries such as petroleum, chemical, metallurgy, and power where hydrogen content needs to be detected.
