ANSI 900 1500 2500 Steam Turbine Bypass Control Valves 100mm 125mm 150mm 200mm
ANSI 900 1500 2500 Steam Turbine Bypass Control Valves 100mm 125mm 150mm 200mm
Specifications
Brand Name :
WEYO
Model Number :
EGVT
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Straight-through cast ball valve
Nominal diameter :
100, 125, 150, 200mm
Nominal pressure :
ANSI 900, 1500, 2500
Connection type :
Flange connection: RF, flange standard in accordance with ANSI B16.5 Butt weld connection: BW
Materials :
ZG1Cr18Ni9, ZG0Cr17Ni2Mo2, 1.25Cr0.5Mo, 2.25Cr1.0Mo, 5.0Cr0.5Mo, or SCPH21, SCPH32
Upper valve bonnet :
Extended type: 230～566℃
Gland type :
Bolt-clamped type
Packing :
Inconel wire reinforced graphite packing
Description

EGVT Steam Turbine Bypass Control Valve

The EGVT steam turbine bypass control valve is a low-noise control valve for high-pressure steam. Its internal components consist of a porous sleeve-guided pilot valve core. It achieves rapid action of the valve core relying on fluid pressure instead of a spring, thus requiring small operating force. This control valve is suitable for regulating high-pressure steam in the high-pressure bypass of steam turbines and controlling pressure reduction of auxiliary steam.

Cv value and stroke
Nominal diameter (mm) 100 125 150 200
Valve seat diameter (mm) 80 100 100 125 125 150 150 200
Rated Cv value ANSI 900,1500 50 88 88 135 135 200 200 350
ANSI 2500 45 80 80 125 125 185
Rated stroke (mm) 38 50 50 75

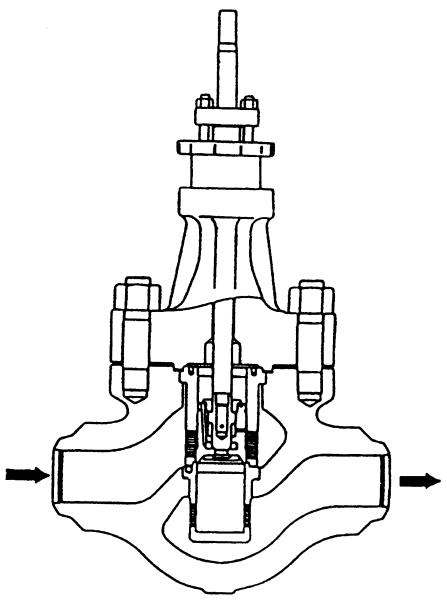

Flow characteristic curve

ANSI 900 1500 2500 Steam Turbine Bypass Control Valves 100mm 125mm 150mm 200mm

Allowable pressure difference

Air-closed valve
Nominal pressure Actuator Supply pressure
(MPa)		 Spring range
(MPa)		 Allowable pressure difference (MPa)
Nominal diameter (mm)
100 125 150 200
ANSI 900
1500		 HA3D 0.39 0.08～0.24 12.7 10.8
HA4D 0.39 0.08～0.24 19.6 18.6 16.7 12.7
ANSI 2500 HA3D 0.39 0.08～0.24 18.6 13.7
HA4D 0.39 0.08～0.24 19.6 19.6 19.6

Air-to-open valve
Nominal pressure Actuator Supply pressure
(MPa)		 Spring range
(MPa)		 Allowable pressure difference (MPa)
Nominal diameter (mm)
100 125 150 200
ANSI 900
1500		 HA3R 0.27 0.08～0.24 6.37 5.39
HA4R 0.27 0.08～0.24 10.8 9.32 8.34 6.37
VA5R 0.27 0.08～0.24 14.7 12.7 11.3 8.81
ANSI 2500 HA3R 0.27 0.08～0.24 9.32 6.86
HA4R 0.27 0.08～0.24 16.0 11.3 9.81
VA5R 0.27 0.08～0.24 19.6 16.0 13.2

Note: 1. Equipped with a positioner or for two-position control.

2. The maximum allowable pressure difference shall not exceed the maximum value specified in standard ANSI B16.34.

Ordering Information
  1. Model
  2. Nominal diameter × valve seat diameter or required Cv
  3. Nominal pressure and flange connection type
  4. Materials of valve body and valve trim
  5. Actuator model and supply pressure
  6. Valve action mode (air-closed valve or air-to-open valve)
  7. Accessories (positioner, handwheel mechanism, etc.)
  8. Fluid name, temperature and specific gravity
  9. Normal flow rate and required maximum flow rate
  10. Fluid pressure, inlet pressure and outlet pressure at minimum and maximum flow rates
  11. Specifications of control valve outlet pipeline
