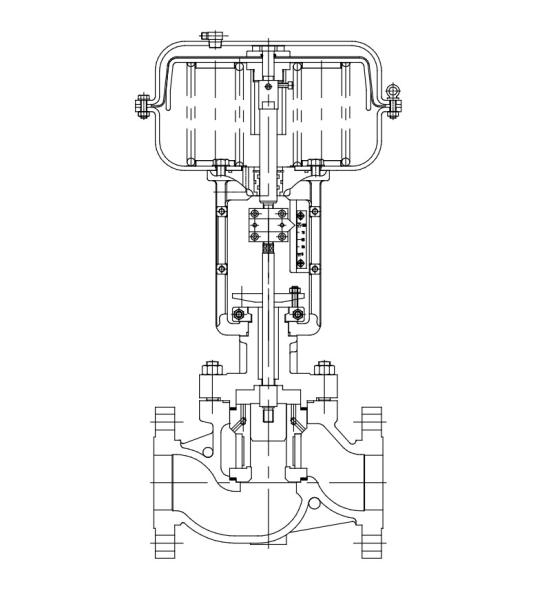

V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)
V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)
Specifications
Brand Name :
WEYO
Model Number :
V100-SGN Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Body Type :
GLOBE
Body Size :
1/2″ 3/4″ 1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″
Pressure Rating :
ANSI150 300 600LB PN16 PN40 PN63 PN100
End Connection :
Flanged(RF FF FM RJ) Welded(SW BW)
Body and Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’ need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug Type :
P-PORT Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Pneumatic Diaphragm Type :
Action type : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa）, Spring range: 60-220KPa 80-280KPa , Handle: (Top handle) (Side handle) , Action type : Double action , Size:
Electric Motor :
Optional
Hydraulic Cylinder :
Optional
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Plug type :
Unbalanced
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
Description
V100-SGN Series Low Noise Single Seated Control Valve features top guide and quick change trim design. As an extended production of SGP Single Seated Control Valve, it possesses not only the characteristics of SGP, but also other advantages such as noise reduction, anti-cavitation and so on. These two series have interchangeable trim parts.
The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.
Rated Cv and Stroke (Table2)

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
EQ-% 1-Stage LINEAR 1-Stage
1/2 (15) 1/2 (13) 3 20 1/2 (15) 1/2 (13) 3 20
3/4 (20) 3/4 (20) 7 20 3/4 (20) 3/4 (20) 7 20
5/8 (16) 5 20 5/8 (16) 5 20
1/2 (13) 3 20 1/2 (13) 3 20
1 (25) 1 (25) 11 20 1 (25) 1 (25) 11 20
3/4 (20) 7 20 3/4 (20) 7 20
5/8 (16) 5 20 1/2 (15) 5 20
1 1/2 (40) 1 1/2 (40) 22 20 1 1/2 (40) 1 1/2 (40) 25 20
1 1/4 (32) 17 20 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 2 (50) 36 30 2 (50) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
2 1/2 (65) 2 1/2 (65) 55 30 2 1/2 (65) 2 1/2 (65) 65 30
2 (50) 36 30 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
3 (80) 3 (80) 80 40 3 (80) 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
2 (50) 40 40 2 (50) 40 40
4 (100 4 (100 130 40 4 (100 4 (100 150 40
3 (80) 80 40 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
5 (125) 5 (125) 220 60 5 (125) 5 (125) 280 60
4 (100 170 60 4 (100 170 60
3 (80) 100 60 3 (80) 100 60
6 (150) 6 (150) 250 60 6 (150) 6 (150) 320 60
5 (125) 220 60 5 (125) 280 60
4 (100 170 60 4 (100 170 60
EQ-% 2-Stage LINEAR 2-Stage
1 (25) 3/4 (20) 7 20 1 (25) 3/4 (20) 7 20
1 1/2 (40) 1 1/4 (32) 17 20 1 1/2 (40) 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 1 1/2 (40) 22 30 2 (50) 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
1 (25) 11 30 1 (25) 11 30
2 1/2 (65) 2 (50) 36 30 2 1/2 (65) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
3 (80) 2 1/2(65) 70 40 3 (80) 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
1 1/2 (40) 22 40 1 1/2 (40) 25 40
4 (100 3 (80) 80 40 4 (100 3 (80) 100 40
2 1/2(65) 70 40 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
5 (125) 4 (100) 170 60 5 (125) 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
2 1/2(65) 70 60 2 1/2(65) 70 60
6 (150) 5 (125) 220 60 6 (150) 5 (125) 280 60
4 (100) 170 60 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
EQ-% 3-Stage LINEAR 3-Stage
1 1/2 (40) 3/4 (20) 7 20 1 1/2 (40) 3/4 (20) 7 20
2 (50) 1 (25) 11 30 2 (50) 1 (25) 11 30
2 1/2 (65) 1 1/2 (40) 22 30 2 1/2 (65) 1 1/2 (40) 25 30
3 (80) 2 (50) 40 40 3 (80) 2 (50) 40 40
4 (100 2 1/2(65) 70 40 4 (100 2 1/2(65) 70 40
5 (125) 3 (80) 100 60 5 (125) 3 (80) 100 60
6 (150) 4 (100) 170 60 6 (150) 4 (100) 170 60

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB 温度℃

Temperature
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.90 1.90 2.00 2.00 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.90 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.70 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.10 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.40 1.40 1.40 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.20 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.70 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.90 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.50 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range (Table 4)

No.
Material		 ℃
Temperature
Range
Remark
1 410 -29～427
Heat treatment
2 440 -29～427
Heat treatment
3 17-4PH -29～427
Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510
Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550
Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620
Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538
Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538
Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538
Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538
Partial or all stellite alloy overlay welding
according to requirements

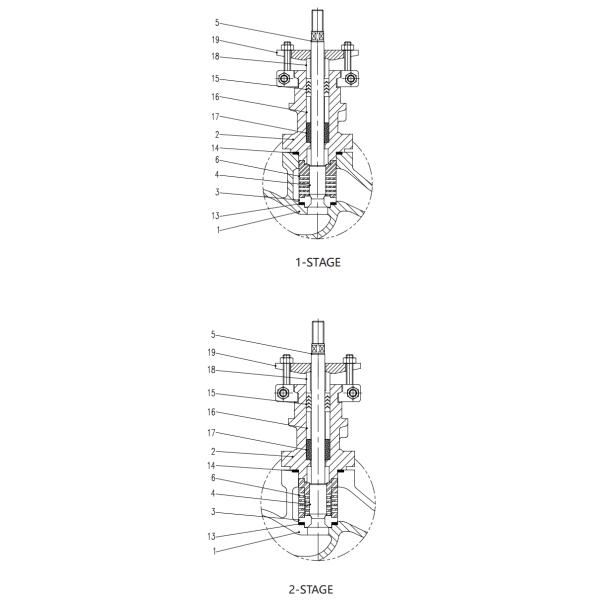

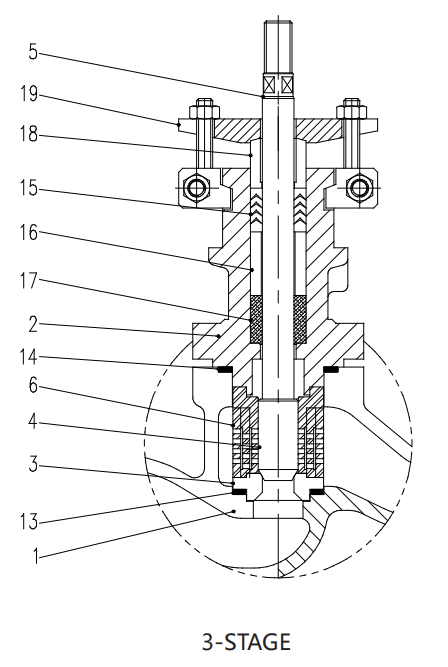

Valve Internal Structure

V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)

V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)

No. Name (Q’ty)
1 body 1
2 bonnet 1
3 seat 1
4 plug 1
5 stem 1
6 guide 1
13 seat gasket 1
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing
DA:Direct action MPa
550 480 370 290 250
Actuator specification
0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
80-210/60 110-220/40

80-250/60		 130~230/20

80~230/30
80~280/40		 60~170/20

60~220/30		 60~220/20 kPa
Spring range mm
Stroke

VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
3.0 10 10 3.0 - 6.6 13 1/2
Seat Size
inch/

mm
3.0 10 10 3.0 6.6 10 3.0 - 4.5 16 5/8
3.0 10 10 3.0 3.0 10 3.0 3.1 20 3/4
3.0 10 10 3.0 1.0 8.0 2.1 - 2.1 25 1
3.0 3.2 8.2 3.0 - 4.0 32 1-1/4
3.0 2.2 7.0 3.0 - 3.2 40 1-1/2
3.0 0.8 3.8 0.4 - 0.4 50 2
2.2 0.4 2.2 65 2-1/2
3.0 0.8 3.3 0.7 - 0.7 80 3
1.7 0.2 1.7 0.2 - 0.2 100 4
0.9 - 0.9 0.4 - 0.4 125 5
0.5 - 0.5 0.2 - 0.2 150 6

Diaphragm Actuator/Graphite Packing
DA:Direct action MPa
550 480 370 290 250
Actuator specification
0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
80-210/60 110-220/40
80-250/60		 130~230/20
80~230/30

80~280/40		 60~170/20

60~220/30		 60~220/20 kPa
Spring range mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 - 5.7 13 1/2
Seat Size
inch/mm
10 10 5.7 10 - 3.9 16 5/8
10 10 2.3 9.3 - 2.4 20 3/4
9.7 10 0.5 7.5 - 1.6 25 1
3.0 7.8 - 3.8 32 1-1/4
2.0 6.7 - 3.0 40 1-1/2
0.7 3.7 - 0.3 50 2
0.3 2.1 65 2-1/2
0.7 3.2 一 0.6 80 3
0.2 1.6 - 0.2 100 4
- 0.9 0.4 125 5
- 0.5 - 0.2 150 6

Diaphragm Actuator/PTFE Packing
RA:Reverse action
480 370H 370 290 250
Actuator specification
0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
140-250/40

110-280/60		 194-352/30

142-352/40		 130~230/20

130~280/30
80~280/40		 110~220/20

60~220/30		 60~220/20 kPa
Spring range mm
Stroke

VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
3.0 10 10 3.0 - 6.6 13 1/2
Seat Size
inch/

mm
3.0 10 10 3.0 6.6 10 3.0 - 4.5 16 5/8
3.0 10 10 3.0 3.0 10 3.0 - 3.1 20 3/4
3.0 10 10 3.0 1.0 8.0 2.1 - 2.1 25 1
3.0 3.2 8.2 3.0 - 4.0 32 1-1/4
3.0 2.2 7.0 3.0 - 3.2 40 1-1/2
3.0 2.3 6.1 3.0 0.8 3.8 0.4 - 0.4 50 2
3.0 0.6 3.6 2.2 0.4 2.2 65 2-1/2
3.0 0.7 3.2 1.6 0.1 1.6 0.7 - 0.7 80 3
1.6 0.2 1.6 0.8 - 0.8 0.2 - 0.2 100 4
0.4 - 0.4 125 5
0.2 - 0.2 150 6

Diaphragm Actuator/PTFE Packing(continued)
RA:Reverse action MPa
550 480H
Actuator specification
0.36 0.36
Supply pressure MPa
140-280/60 120-280/60

kPa
Spring range

mm Stroke

VI
V
IV
VI
V
IV
Sealing surface Leakage
13 1/2
16 5/8
20 3/4
25 1
32 1-1/4
40 1-1/2
50 2 inch/mm
65 2-1/2
80 3
100 4
0.9 - 0.9 0.8 - 0.8 125 5
0.5 , 0.5 0.4 - 0.4 150 6

Diaphragm Actuator/Graphite Packing
RA:Reverse action MPa
550 480H 480 370H 370 290 250
Actuator specification
0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
140-280/60 120-280/60 140-250/40

110-280/60		 194-352/30

142-352/40		 130~230/20
130~280/30

80~280/40		 110~220/20

60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 6.6 13 1/2
Seat Size
inch/
mm
10 10 6.6 10 - 4.5 16 5/8
10 10 3.0 10 - 3.1 20 3/4
10 10 1.0 8.0 - 2.1 25 1
3.2 8.2 一 3.8 32 1-1/4
2.2 7.0 - 3.0 40 1-1/2
2.3 6.1 0.8 3.8 - 0.4 50 2
0.6 3.6 0.4 2.2 65 2-1/2
0.7 3.2 0.1 1.6 一 0.7 80 3
0.2 1.6 一 0.8 - 0.2 100 4
- 0.9 - 0.7 - 0.4 125 5
0.5 - 0.4 0.2 150 6

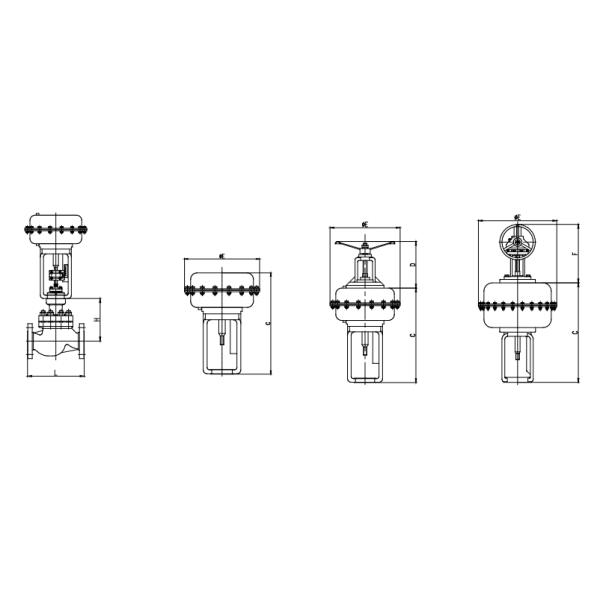

External Dimensions(Table6)
V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)

Body Size		 L H
ANSI150LB ANSI300LB ANSI600LB standard type heat sink type
INCH DN RF RJ
Welded		 RF RJ
Welded		 RF RJ
Welded
1/2 15 184 184 206 190 190 206 203 203 206 124 224
3/4 20 184 184 210 194 194 210 206 206 210 124 224
1 25 184 184 210 197 197 210 210 210 210 124 224
11/2 40 222 222 251 235 235 251 251 251 251 145 245
2 50 254 257 286 267 270 286 286 289 286 156 256
21/2 65 276 279 292 292 295 292 311 314 311 195 295
3 80 298 301 318 318 321 318 337 340 337 210 310
4 100 352 355 368 368 371 368 394 397 394 235 335
5 125 403 406 425 425 428 425 457 460 457 302 372
6 150 451 454 473 473 476 473 508 511 508 326 396


Actuator Size		 E C D F
250 252 343 168 -
290 292 369 214 -
370 370 409 214
370H 370 440 214
480 482 628 - 350
480H 482 680 - 387
550 560 703 - 387

Send your message to this supplier
Send Now

V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)

Ask Latest Price
Product Detail
Brand Name :
WEYO
Model Number :
V100-SGN Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Contact Supplier
V100-SGN Series Low Noise Single Seated Control Valve(Multi-Hole)

WEYO AUTO TECH

Verified Supplier
2 Years
shanghai, shanghai
Since 2003
Business Type :
Manufacturer, Seller
Main Products :
Control Valves, Servo Valves, Proportional Valve
Total Annual :
141790014-161450000
Employee Number :
1000~1200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Control Valves
MachineU China Products
Contact Supplier
Submit Requirement
