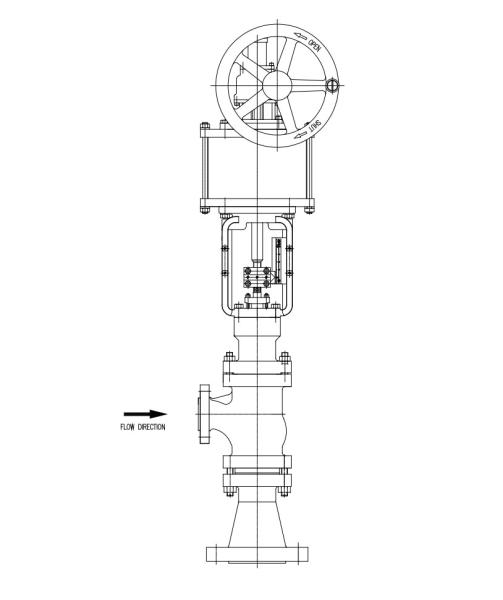

V100-HSA series high-performance angular black water regulating valve
V100-HSA series high-performance angular black water regulating valve
Specifications
Brand Name :
WEYO
Model Number :
V100-HSA series
Certification :
ZL 2007 1 0171793.3
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Body Type :
ANGLE
Nominal Diameter :
2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″ 14″
Nominal Pressure :
ANSI150 300 600 900LB PN16 PN40 PN63 PN100 PN160
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
FLANGE STANDARD :
ANSI B16.5 / HG 20592 20613 / JB/T 74-86
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
Electric motor :
selectable
Hydraulic Cylinder :
Optional
Description
The V100-HSA series high-performance angular black water regulating valve is a patented product researched and invented by relevant personnel of our company. The invention patent number is ZL2007 1 0171793.3, and it has the following characteristics:The streamlined design structure of the valve body cavity adopts the IEC534 standard, which avoids the impact of particulate media on the inner wall of the valve body;The valve body adopts a balanced self circulating treatment structure with fluid medium self isolation, which avoids a large number of coal powder particles from entering the valve stem and packing part, effectively solving the valve leakage caused by wear and tear.The valve has a self-cleaning function, and the design of the valve guide part adopts an anti garbage tank treatment structure, which can effectively prevent particles in the fluid from entering the gap between the guide sleeve and causing the valve to jam; At the same time, there is a steam interlock flushing hole on the valve cover. When the valve is switched or stopped, the scaling and coal powder condensation on the packing side of the valve stem can be manually or automatically cleaned to prevent the valve from getting stuck due to coal powder condensation.The valve guide part adopts a special scraper design to prevent scaling.The valve adopts a quick detachable structure, which is easy to install, disassemble and replace components.The valve adopts an anti rotation structure design to prevent the valve core
fromrotating under high flow medium conditions, effectively preventing faults caused by displacement or detachment of accessories such as locators due to the rotation of the valve core.The valve core and valve seat are made of integral tungsten carbide material, which greatly improves the service life of the valve core and valve seat.The valve seat adopts a downward compression structure, ensuring the reliability of the product and facilitating its maintenance.The outlet section of the valve body adopts a tungsten carbide material guide pipe design, which prevents damage to the outlet section of the valve body caused by high speed fluid (including hard particles) impact and cavitation.The valve is designed with a downward movement of the guiding part, effectively preventing lateral vibration under high
pressure difference of the valve.The use of high thrust piston actuators can effectively improve the pressure resistance and other capabilities of valves.The connection between the valve and the actuator adopts a clamp structure, which is convenient for fastening and disassembling.
Rated Cv and Stroke

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
2〞 1〞 14 20 8〞 5〞 280 60
1.5〞 33 20 6〞 400 60
2〞 50 30 7〞 500 70
2.5〞 1〞 14 20 8〞 640 80
1.5〞 33 20 10〞 6〞 400 60
2〞 50 30 7〞 500 70
2.5〞 70 30 8〞 700 80
3〞 1.5〞 33 20 10〞 1000 90
2〞 50 30 12〞 7〞 500 70
2.5〞 70 30 8〞 700 80
3〞 120 40 10〞 1000 90
4〞 2〞 50 30 12〞 1600 100
2.5〞 70 30 14〞 8〞 700 80
3〞 120 40 10〞 1000 90
4〞 200 40 12〞 1600 100
6〞 3〞 120 40 14〞 2200 120
4〞 200 40
5〞 280 60
6〞 400 60

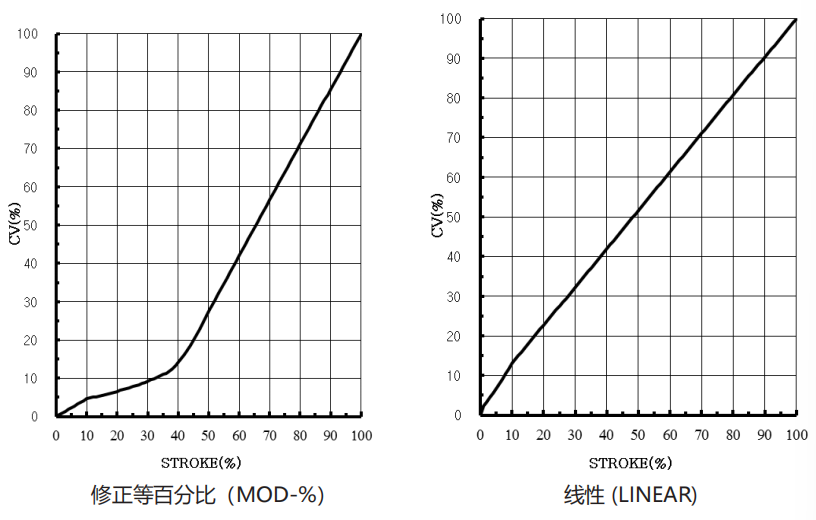

FLOW CHARACTERISTICS

V100-HSA series high-performance angular black water regulating valve

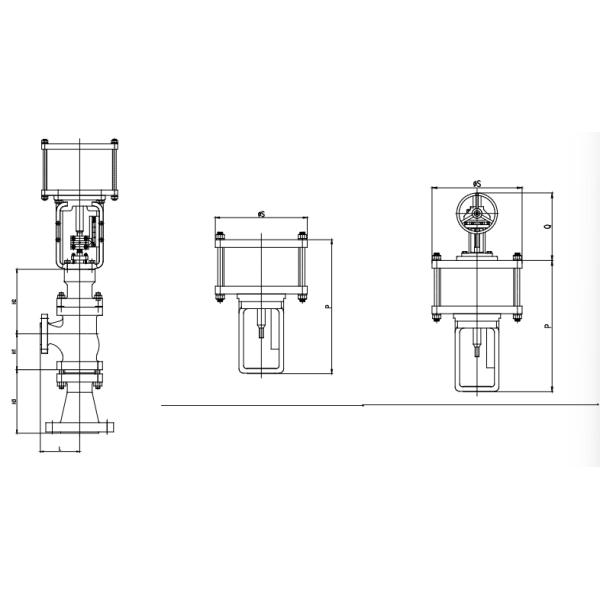

External Dimensions
V100-HSA series high-performance angular black water regulating valve

Nominal
Diameter		 L H1 H2 L H1 H2
150LB 300LB 600LB standard
Fin-
Exten
sion
type		 900LB standard
Fin-
Exten
sion
type
INCH DN RF RF
2 50 127 134 143 90 156 256 188 125 223 293
21/2 65 138 146 156 105 195 295 205 150 236 306
3 80 149 159 169 125 210 310 221 160 295 365
4 100 176 184 197 140 235 335 256 195 334 404
6 150 226 237 254 195 326 396 357 270 485 555
8 200 272 284 304 240 385 455 457 300 499 569
10 250 337 354 376 290 392 462 496 360 580 650
12 300 369 388 410 330 493 563 565 420 630 700
14 350 450 464 486 380 550 620 628 510 720 790

Actuator Size		 S P Q
8＂ 260 540 350
12＂ 370 606 393
16＂ 472 626 450
20＂ 600 720 560
