V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)
V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)
Specifications
Brand Name :
WEYO
Model Number :
V100-SA Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V

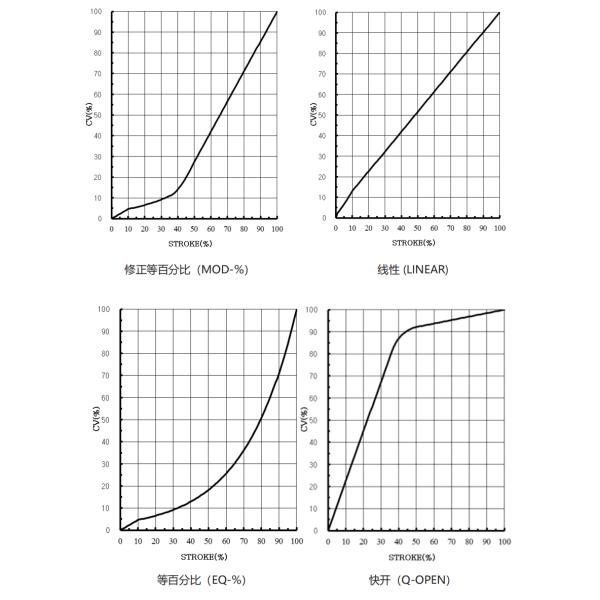

Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
HYDROLIC CYLINDER :
selectable
Hydraulic Cylinder :
Optional
Description
V100-SA Series Single Seated Angle Control Valve is an extended production of SGP and SGN, apart from different body types, the rest is entirely the V100-SAme with interchangeable trim parts. V100-SA Series features top guide design, quick change trim, simple structure, reliable performance and easy maintenance. The top guide design provides not only sufficient rigidity but also vibration and abrasion resistance, which can guarantee its reliable operation in harsh conditions. The Contoured-P trim features high precision adjustment and large adjustable ratio.
The Multi-Hole cage design possesses noise reduction and anti-cavitation.
The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.
Rated Cv and Stroke (Table2)

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
1/2 (15) 1/4 (6) 0.1 20 2-1/2 (65) 1-1/2 (40) 28 20
0.2 20 2 (50) 40 30
1/4 (6) 0.3 20 2-1/2 (65) 70 30
0.4 20 80 30
1/4 (6) 0.6 20 3 (80) 2 (50) 40 30
0.8 20 2-1/2 (65) 70 30
5/16 (8) 1 20 3 (80) 100 40
1.2 20 120 40
3/8 (10) 1.5 20 4 (100) 2-1/2 (65) 70 30
2 20 3 (80) 100 40
1/2 (13) 3 20 4 (100) 170 40
4 20 200 40
3/4 (20) 5/8 (16) 5 20 5 (125) 3 (80) 100 40
3/4 (20) 7 20 4 (100) 170 40
10 20 5 (125) 280 60
1 (25) 7/8 (22) 12 20 300 60
1 (25) 14 20 6 (150) 4 (100) 170 40
1-1/2 (40) 1 (25) 14 20 5 (125) 280 60
1-1/4 (32) 20 20 6 (150) 360 60
1-1/2 (40) 28 20 400 60
1-1/2 (40) 33 20
2 (50) 1-1/4 (32) 20 20
1-1/2 (40) 28 20
2 (50) 40 30
50 30

Cv Value and Storke(MULTI-HOLE)

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
EQ-% 1-Stage LINEAR 1-Stage
1/2 (15) 1/2 (13) 3 20 1/2 (15) 1/2 (13) 3 20
3/4 (20) 3/4 (20) 7 20 3/4 (20) 3/4 (20) 7 20
5/8 (16) 5 20 5/8 (16) 5 20
1/2 (13) 3 20 1/2 (13) 3 20
1 (25) 1 (25) 11 20 1 (25) 1 (25) 11 20
3/4 (20) 7 20 3/4 (20) 7 20
5/8 (16) 5 20 1/2 (15) 5 20
1 1/2 (40) 1 1/2 (40) 22 20 1 1/2 (40) 1 1/2 (40) 25 20
1 1/4 (32) 17 20 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 2 (50) 40 30 2 (50) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
2 1/2 (65) 2 1/2 (65) 60 30 2 1/2 (65) 2 1/2 (65) 70 30
2 (50) 40 30 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
3 (80) 3 (80) 100 40 3 (80) 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
2 (50) 40 40 2 (50) 40 40
4 (100 4 (100 130 40 4 (100 4 (100 170 40
3 (80) 100 40 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
5 (125) 5 (125) 280 60 5 (125) 5 (125) 280 60
4 (100 170 60 4 (100 170 60
3 (80) 100 60 3 (80) 100 60
6 (150) 6 (150) 360 60 6 (150) 6 (150) 360 60
5 (125) 280 60 5 (125) 280 60
4 (100 170 60 4 (100 170 60
EQ-% 2-Stage LINEAR 2-Stage
1 (25) 3/4 (20) 7 20 1 (25) 3/4 (20) 7 20
1 1/2 (40) 1 1/4 (32) 17 20 1 1/2 (40) 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 1 1/2 (40) 22 30 2 (50) 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
1 (25) 11 30 1 (25) 11 30
2 1/2 (65) 2 (50) 40 30 2 1/2 (65) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
3 (80) 2 1/2(65) 70 40 3 (80) 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
1 1/2 (40) 22 40 1 1/2 (40) 25 40
4 (100 3 (80) 100 40 4 (100 3 (80) 100 40
2 1/2(65) 70 40 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
5 (125) 4 (100) 170 60 5 (125) 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
2 1/2(65) 70 60 2 1/2(65) 70 60
6 (150) 5 (125) 280 60 6 (150) 5 (125) 280 60
4 (100) 170 60 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
EQ-% 3-Stage LINEAR 3-Stage
1 1/2 (40) 3/4 (20) 7 20 1 1/2 (40) 3/4 (20) 7 20
2 (50) 1 (25) 11 30 2 (50) 1 (25) 11 30
2 1/2 (65) 1 1/2 (40) 22 30 2 1/2 (65) 1 1/2 (40) 25 30
3 (80) 2 (50) 40 40 3 (80) 2 (50) 40 40
4 (100 2 1/2(65) 70 40 4 (100 2 1/2(65) 70 40
5 (125) 3 (80) 100 60 5 (125) 3 (80) 100 60
6 (150) 4 (100) 170 60 6 (150) 4 (100) 170 60

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB ℃
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.90 1.90 2.00 2.00 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.90 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.70 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.10 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.40 1.40 1.40 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.20 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.70 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.90 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.50 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range (Table 4)

No.
Material		 ℃
Temperature
Range
Remark
1 410 -29～427
Heat treatment
2 440 -29～427
Heat treatment
3 17-4PH -29～427
Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510
Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550
Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620
Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538
Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538
Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538
Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538
Partial or all stellite alloy overlay welding
according to requirements

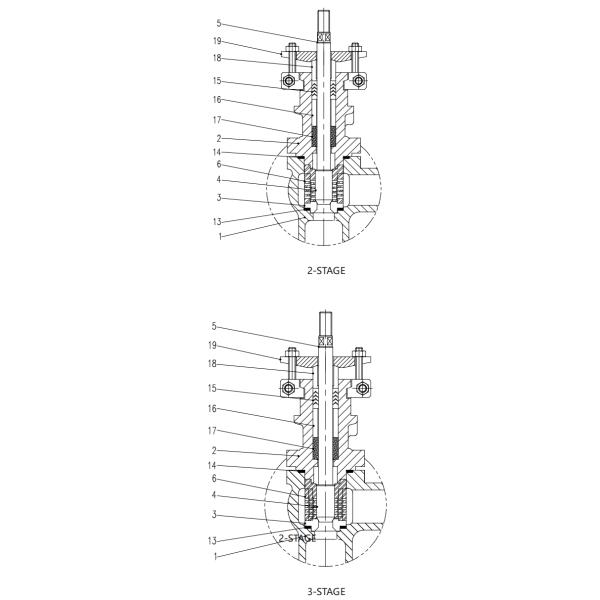

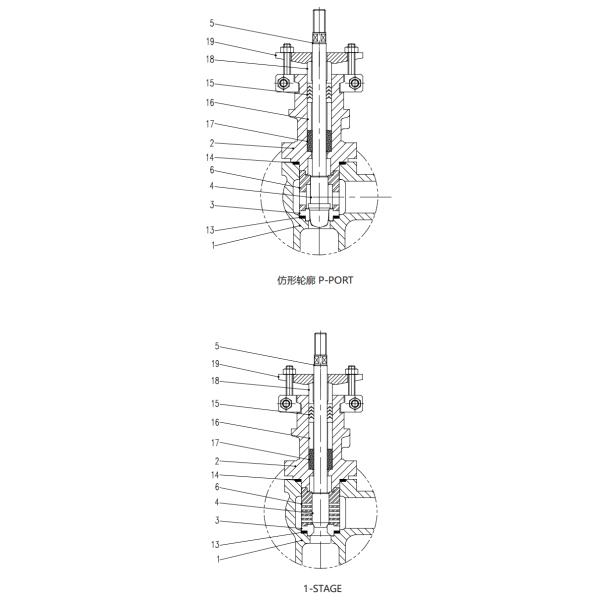

Valve Internal Structure
V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)
V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)
No. Name (Q’ty)
1 body 1
2 bonnet 1
3 seat 1
4 plug 1
5 stem 1
6 guide 1
13 seat gasket 1
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing
DA:Direct action MPa
550 480 370 290 250
Actuator specification
0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
80-210/60 110-220/40
80-250/60		 130~230/20
80~230/30
80~280/40		 60~167/20
60~220/30		 60~220/20

kPa
Spring range

mm Stroke

VI

V
IV
VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
3.0 10 10 3.0 - 10 6.4 1/4
Seat Size
inch/

mm
3.0 10 10 3.0 - 10 8 5/16
3.0 10 10 3.0 - 10 10 3/8
3.0 10 10 3.0 - 6.6 13 1/2
3.0 10 10 3.0 6.6 10 3.0 - 4.5 16 5/8
3.0 10 10 3.0 3.0 10 3.0 - 3.1 20 3/4
3.0 10 10 3.0 1.0 8.0 2.1 - 2.1 25 1
3.0 3.2 8.2 3.0 - 4.0 32 1-1/4
3.0 2.2 7.0 3.0 - 3.2 40 1-1/2
3.0 0.8 3.8 0.4 - 0.4 50 2
2.2 0.4 2.2 65 2-1/2
3.0 0.8 3.3 0.7 - 0.7 80 3
1.7 0.2 1.7 0.2 - 0.2 100 4
0.9 - 0.9 0.4 - 0.4 125 5
0.5 - 0.5 0.2 - 0.2 150 6

Diaphragm Actuator/Graphite Packing
DA:Direct action MPa
550 480 370 290 250
Actuator specification
0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
80-210/60 110-220/40
80-250/60		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20 kPa
Spring range mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 - 10 6.4 1/4 Seat
Size
inch/

mm
10 10 一 10 8 5/16
10 10 - 9.6 10 3/8
10 10 - 5.7 13 1/2
10 10 5.7 10 - 3.9 16 5/8
10 10 2.3 9.3 - 2.4 20 3/4
9.7 10 0.5 7.5 - 1.6 25 1
3.0 7.8 - 3.8 32 1-1/4
2.0 6.7 - 3.0 40 1-1/2
0.7 3.7 - 0.3 50 2
0.3 2.1 65 2-1/2
0.7 3.2 - 0.6 80 3
0.2 1.6 - 0.2 100 4
- 0.9 - 0.4 125 5
- 0.5 - 0.2 150 6

Diaphragm Actuator/PTFE Packing
RA:Reverse action MPa
480 370H 370 290 250
Actuator specification
0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
140-250/40
110-280/60		 194-352/30
142-352/40		 130~230/20
130~280/30
80~280/40		 110~220/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
3.0 10 10 3.0 - 10 6.4 1/4
Seat
Size
inch
/

mm
3.0 10 10 3.0 - 10 8 5/16
3.0 10 10 3.0 - 10 10 3/8
3.0 10 10 3.0 - 6.6 13 1/2
3.0 10 10 3.0 6.6 10 3.0 - 4.5 16 5/8
3.0 10 10 3.0 3.0 10 3.0 - 3.1 20 3/4
3.0 10 10 3.0 1.0 8.0 2.1 - 2.1 25 1
3.0 3.2 8.2 3.0 - 4.0 32 1-1/4
3.0 2.2 7.0 3.0 - 3.2 40 1-1/2
3.0 2.3 6.1 3.0 0.8 3.8 0.4 - 0.4 50 2
3.0 0.6 3.6 2.2 0.4 2.2 65 2-1/2
3.0 0.7 3.2 1.6 0.1 1.6 0.7 - 0.7 80 3
1.6 0.2 1.6 0.8 - 0.8 0.2 - 0.2 100 4
0.4 - 0.4 125 5
0.2 - 0.2 150 6

Diaphragm Actuator/PTFE Packing(continued)
RA :Reverse action MPa
550 480H
Actuator specification
0.36 0.36
Supply pressure MPa
140-280/60 120-280/60

kPa
Spring range

mm Stroke

VI
V
IV
VI
V
IV
Sealing surface Leakage
6.4 1/4
Seat
Size
inch
/

mm
8 5/16
10 3/8
13 1/2
16 5/8
20 3/4
25 1
32 1-1/4
40 1-1/2
50 2
65 2-1/2
80 3
100 4
0.9 - 0.9 0.8 - 0.8 125 5
0.5 - 0.5 0.4 - 0.4 150 6

Diaphragm Actuator/GRAPHITE Packing
RA:Reverse action MPa
550 480H 480 370H 370 290 250
Actuator specification
0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
140-280/60 120-280/60 140-250/40

110-280/60		 194-352/30

142-352/40		 130~230/20
130~280/30

80~280/40		 110~220/20

60~220/30		 60~220/20

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 - 10 6.4 1/4
Seat
Size

inch
/

mm
10 10 - 10 8 5/16
10 10 - 10 10 3/8
10 10 - 6.6 13 1/2
10 10 6.6 10 - 4.5 16 5/8
10 10 3.0 10 - 3.1 20 3/4
10 10 1.0 8.0 - 2.1 25 1
3.2 8.2 - 3.8 32 1-1/4
2.2 7.0 - 3.0 40 1-1/2
2.3 6.1 0.8 3.8 - 0.4 50 2
0.6 3.6 0.4 2.2 65 2-1/2
0.7 3.2 0.1 1.6 - 0.7 80 3
0.2 1.6 - 0.8 - 0.2 100 4
- 0.9 - 0.7 - 0.4 125 5
- 0.5 - 0.4 - 0.2 150 6

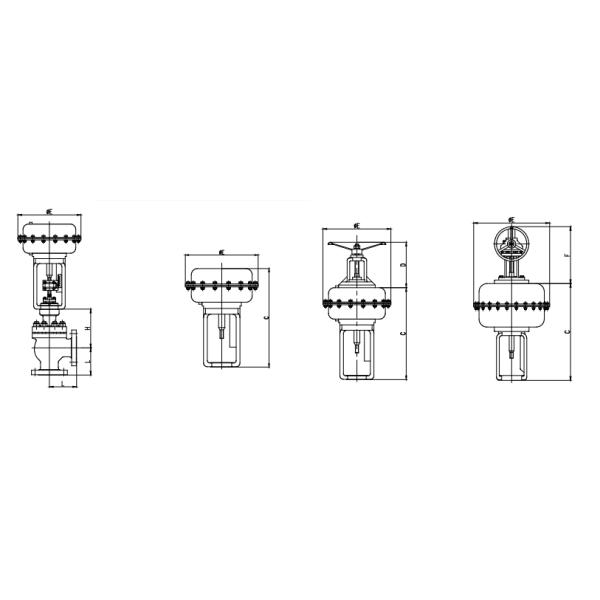

External Dimensions(Table6)

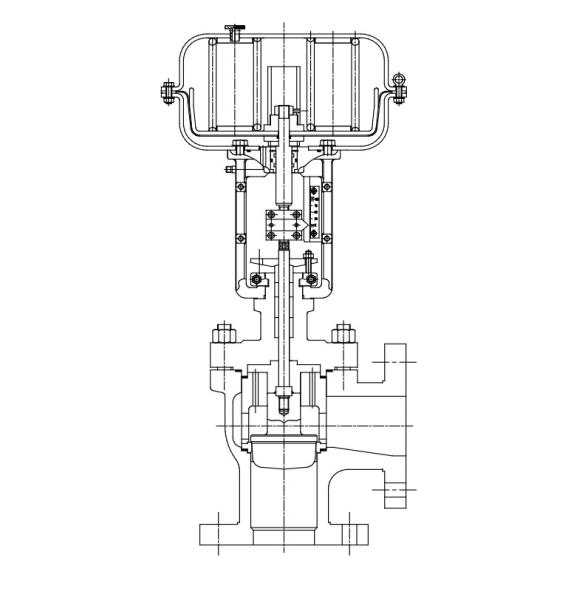

V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)

Body Size		 L H
ANSI150LB ANSI300LB ANSI600LB
INCH RF RJ
Welded		 RF RJ RF RJ
Welded		 RF
Welded
1/2 15 92 92 103 95 95 103 102 102 103 124 224
3/4 20 92 92 105 97 97 105 103 103 105 124 224
1 25 92 92 105 99 99 105 105 105 105 124 224
11/2 40 111 111 126 118 118 126 126 126 126 145 245
2 50 127 129 143 134 136 143 143 145 143 156 256
21/2 65 138 140 146 146 148 146 156 158 156 195 295
3 80 149 151 159 159 161 159 169 171 169 210 310
4 100 176 178 184 184 186 184 197 199 197 235 335
5 125 202 204 213 213 215 213 229 231 229 302 372
6 150 226 228 237 237 239 237 254 256 254 326 396


Actuator Size		 E C D F
250 252 343 168 -
290 292 369 214 -
370 370 409 214 -
370H 370 440 214 -
480 482 628 - 350
480H 482 680 - 387
550 560 703 - 387

FLOW CHARACTERISTICS
V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)

Send your message to this supplier
Send Now

V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)

Ask Latest Price
Product Detail
Brand Name :
WEYO
Model Number :
V100-SA Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Contact Supplier
V100-SA Series Single Seated ANGLE Control Valve(Quick Detachable、Profile)

WEYO AUTO TECH

Verified Supplier
2 Years
shanghai, shanghai
Since 2003
Business Type :
Manufacturer, Seller
Main Products :
Control Valves, Servo Valves, Proportional Valve
Total Annual :
141790014-161450000
Employee Number :
1000~1200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Control Valves
MachineU China Products
Contact Supplier
Submit Requirement
