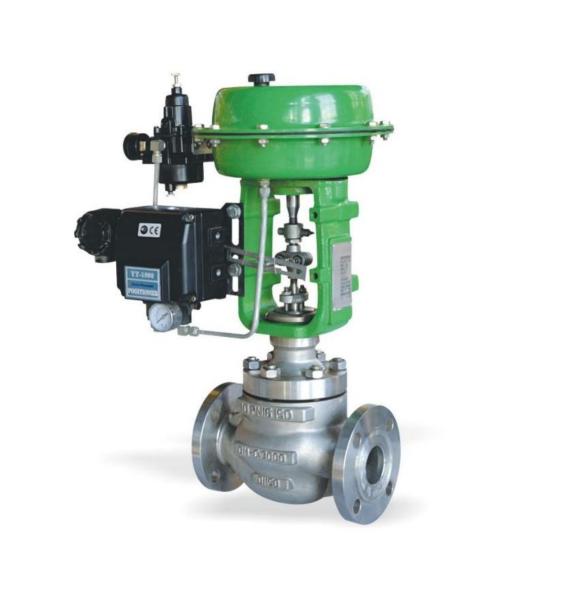

The CV3000 control valve can be used to control various fluids with different pressures and temperatures.
The CV3000 control valve can be used to control various fluids with different pressures and temperatures.
Specifications
Model Number :
CV3000
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Brand Name :
WEYO
Pressure drop loss of valve body :
Low
Flow capacity :
High
Adjustable range :
Wide
Flow characteristic curves :
Precise
Valve plug guidance area :
Large
Vibration resistance :
Excellent
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
Hydraulic Cylinder :
Optional
Description

The CV3000 control valve features minimal pressure drop loss, high flow capacity, wide adjustable range, precise flow characteristic curves, large valve plug guidance area, and excellent vibration resistance. It is equipped with a multi-spring diaphragm actuator, which offers compact design and high output force. This makes it suitable for controlling various fluids at different pressures and temperatures.
