V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)
Specifications
Brand Name :
WEYO
Model Number :
V100-SAH Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
HYDROLIC CYLINDER :
selectable
Hydraulic Cylinder :
Optional
Description
V100-SAH Series High Pressure Single Seated Angle Control Valve is an extended production of SGH, the body is angle type. The series features quick change trim, simple structure, reliable performance and easy maintenance. The top guide design provides not only sufficient rigidity but also vibration and abrasion resistance, which can guarantee its reliable operation in harsh conditions. The unbalanced Contoured-P trim features high precision adjustment and large adjustable ratio. Moreover the multi-hole cage can reduce noise and resist cavitation. Threaded
flange connection combined with a variety of trim types is especially suitable for each position at the ammonia plant.
The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.
Rated Cv and Stroke (Table2)

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
900-2500LB 900-1500LB
1/2 (15) 1/4 (6) 0.1 20 1-1/2 (40) 1 (25) 14 20
0.2 20 1-1/4 (32) 20 20
1/4 (6) 0.3 20 1-1/2 (40) 28 20
0.4 20 2 (50) 1-1/4 (32) 20 20
1/4 (6) 0.6 20 1-1/2 (40) 28 20
0.8 20 2 (50) 40 30
5/16 (8) 1 20 2-1/2 (65) 1-1/2 (40) 28 20
1.2 20 2 (50) 40 30
3/8 (10) 1.5 20 2-1/2 (65) 70 30
2 20 3 (80) 2 (50) 40 30
1/2 (13) 3 20 2-1/2 (65) 70 30
4 20 3 (80) 100 40
3/4 (20) 5/8 (16) 5 20 4 (100) 2-1/2 (65) 70 30
3/4 (20) 7 20 3 (80) 100 40
10 20 4 (100) 170 40
1 (25) 1 (25) 12 20
2500LB
1-1/2 (40) 1 (25) 7 20 3 (80) 2 (50) 28 30
1-1/4 (32) 12 20 2-1/2 (65) 40 30
1-1/2 (40) 17 20 3 (80) 70 40
2 (50) 1-1/4 (32) 12 20 4 (100) 2-1/2 (65) 40 30
1-1/2 (40) 17 20 3 (80) 70 40
2 (50) 28 30 4 (100) 100 40
2-1/2 (65) 1-1/2 (40) 17 20
2 (50) 28 30
2-1/2 (65) 40 30

Rated Cv and Stroke (Multi-holes)

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
900-1500LB
EQ-% 1-Stage LINEAR 1-Stage
1/2 (15) 1/2 (13) 3 20 1/2 (15) 1/2 (13) 3 20
3/4 (20) 3/4 (20) 7 20 3/4 (20) 3/4 (20) 7 20
5/8 (16) 5 20 5/8 (16) 5 20
1/2 (13) 3 20 1/2 (13) 3 20
1 (25) 1 (25) 11 20 1 (25) 1 (25) 11 20
3/4 (20) 7 20 3/4 (20) 7 20
5/8 (16) 5 20 1/2 (15) 5 20
1 1/2 (40) 1 1/2 (40) 22 20 1 1/2 (40) 1 1/2 (40) 25 20
1 1/4 (32) 17 20 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 2 (50) 40 30 2 (50) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
2 1/2 (65) 2 1/2 (65) 60 30 2 1/2 (65) 2 1/2 (65) 70 30
2 (50) 40 30 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
3 (80) 3 (80) 100 40 3 (80) 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
2 (50) 40 40 2 (50) 40 40
4 (100 4 (100 130 40 4 (100 4 (100 170 40
3 (80) 100 40 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
EQ-% 2-Stage LINEAR 2-Stage
1 (25) 3/4 (20) 7 20 1 (25) 3/4 (20) 7 20
1 1/2 (40) 1 1/4 (32) 17 20 1 1/2 (40) 1 1/4 (32) 17 20
1 (25) 11 20 1 (25) 11 20
2 (50) 1 1/2 (40) 22 30 2 (50) 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
1 (25) 11 30 1 (25) 11 30
2 1/2 (65) 2 (50) 40 30 2 1/2 (65) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
1 1/4 (32) 17 30 1 1/4 (32) 17 30
3 (80) 2 1/2(65) 70 40 3 (80) 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
1 1/2 (40) 22 40 1 1/2 (40) 25 40
4 (100 3 (80) 100 40 4 (100 3 (80) 100 40
2 1/2(65) 70 40 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
EQ-% 3-Stage LINEAR 3-Stage
1 1/2 (40) 3/4 (20) 7 20 1 1/2 (40) 3/4 (20) 7 20
2 (50) 1 (25) 11 30 2 (50) 1 (25) 11 30
2 1/2 (65) 1 1/2 (40) 22 30 2 1/2 (65) 1 1/2 (40) 25 30
3 (80) 2 (50) 40 40 3 (80) 2 (50) 40 40
4 (100 2 1/2(65) 70 40 4 (100 2 1/2(65) 70 40
2500LB 1-stage 2-stage 3-stage design seperately

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB ℃

Temperature
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.90 1.90 2.00 2.00 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.90 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.70 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.10 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.40 1.40 1.40 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.20 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.70 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.90 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.50 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range (Table 4)

No.
Material		 ℃
Temperature
Range
Remark
1 410 -29～427
Heat treatment
2 440 -29～427
Heat treatment
3 17-4PH -29～427
Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510
Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550
Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620
Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538
Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538
Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538
Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538
Partial or all stellite alloy overlay welding
according to requirements

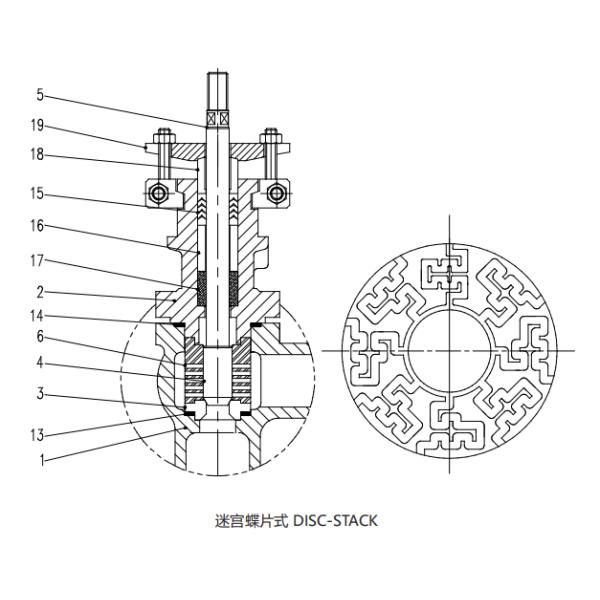

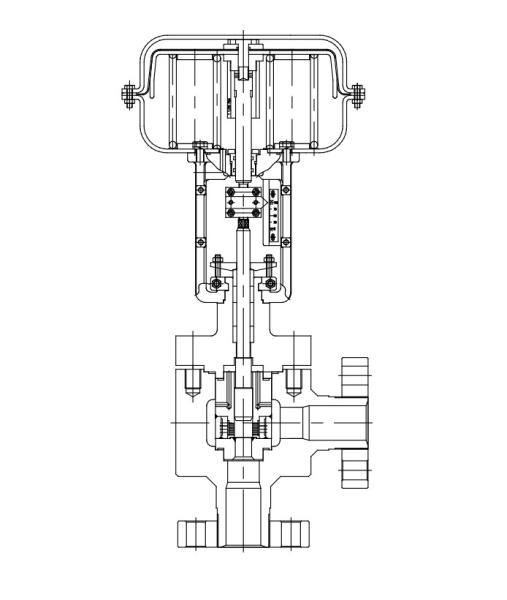

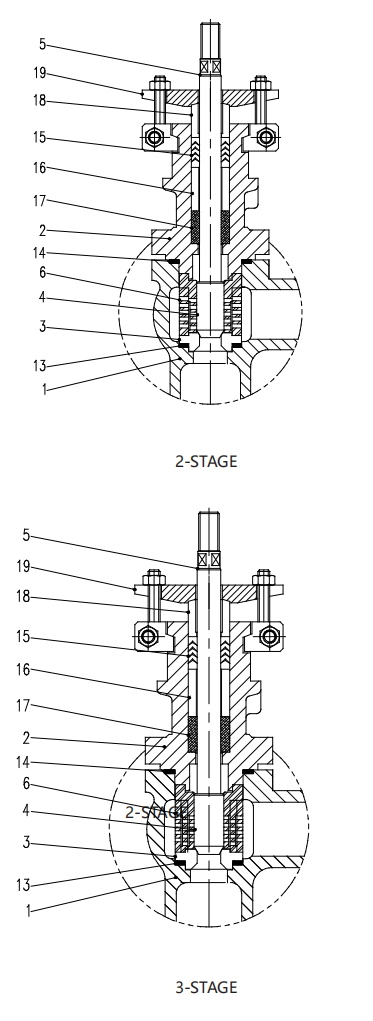

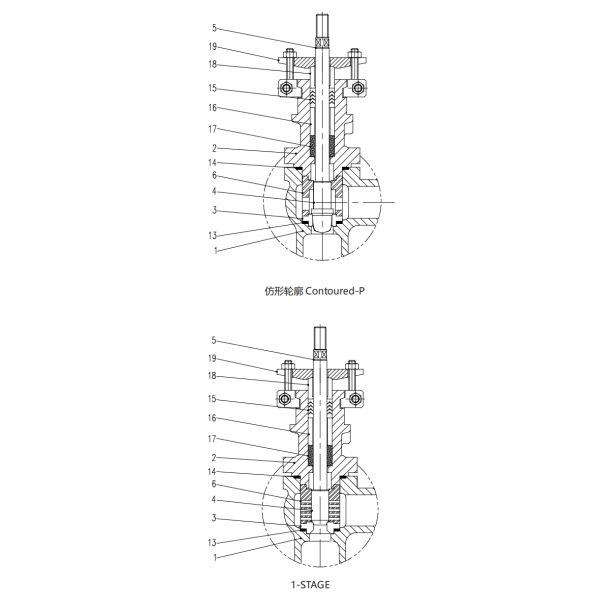

Valve Internal Structure
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)
No. Name 数Q’ty)
1 body 1
2 bonnet 1
3 seat 1
4 plug 1
5 stem 1
6 cage 1
13 seat gasket 1
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing
DA:Direct action MPa
480 370
Actuator specification
0.36 0.36
Supply pressure MPa
110-200/30

110-220/40		 130~230/20

kPa
Spring range

mm Stroke

V
IV
V
IV
Sealing surface Leakage
33.7 33.7 6.4 1/4 Seat Size
inch/mm
33.7 33.7 8 5/16
33.7 33.7 10 3/8
33.7 33.7 13 1/2
22.6 23.2 16 5/8
15.0 19.4 20 3/4
10.6 15.4 25 1
3.2 8.2 32 1-1/4
2.2 7.0 40 1-1/2
6.2 9.4 - 3.8 50 2
3.0 5.9 65 2-1/2
0.7 3.2 80 3
- 1.6 100 4

Diaphragm Actuator/Graphite Packing
DA:Direct action MPa
480 370
Actuator specification
0.36 0.36
Supply pressure MPa
110-200/30

110-220/40		 130~230/20

kPa
Spring range

mm Stroke

V
IV
V
IV
Sealing surface Leakage
29.1 29.1 6.4 1/4 Seat Size
inch/mm
29.1 29.1 8 5/16
29.1 29.1 10 3/8
29.1 29.1 13 1/2
19.5 20.9 16 5/8
13.4 17.7 20 3/4
9.7 14.3 25 1
3.0 7.8 32 1-1/4
2.0 6.7 40 1-1/2
6.0 9.2 - 3.7 50 2
2.9 5.8 65 2-1/2
0.7 3.2 80 3
- 1.6 100 4

Diaphragm Actuator/PTFE Packing
RA:Reverse action MPa
480 370H 370
Actuator specification
0.36 0.40 0.36
Supply pressure MPa
170-250/30

140-250/40		 224-352/20

194-352/30		 130~230/20

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
Sealing surface Leakage
33.7 33.7 6.4 1/4 Seat
Size I nch/mm
33.7 33.7 8 5/16
33.7 33.7 10 3/8
33.7 33.7 13 1/2
22.6 23.2 16 5/8
15.0 19.4 20 3/4
10.6 15.4 25 1
3.2 8.2 32 1-1/4
2.2 7.0 40 1-1/2
6.2 9.4 2.3 6.1 - 3.8 50 2
3.0 5.9 - 0.6 65 2-1/2
0.7 3.2 - 1.6 80 3
- 1.6 - 0.7 100 4

Diaphragm Actuator/Graphite Packing
RA:Reverse action MPa
480 370H 370
Actuator specification
0.36 0.40 0.36
Supply pressure MPa
170-250/30

140-250/40		 224-352/20

194-352/30		 130~230/20

kPa
Spring range

mm Stroke

V		 IV
V
IV
V
IV
Sealing surface Leakage
29.1 29.1 6.4 1/4 Seat
Size I nch/mm
29.1 29.1 8 5/16
29.1 29.1 10 3/8
29.1 29.1 13 1/2
19.5 20.9 16 5/8
13.4 17.7 20 3/4
9.7 14.3 25 1
3.0 7.8 32 1-1/4
2.0 6.7 40 1-1/2
6.0 9.2 2.2 6.0 3.7 50 2
2.9 5.8 - 0.6 65 2-1/2
0.7 3.2 - 1.5 80 3
- 1.6 - 0.7 100 4

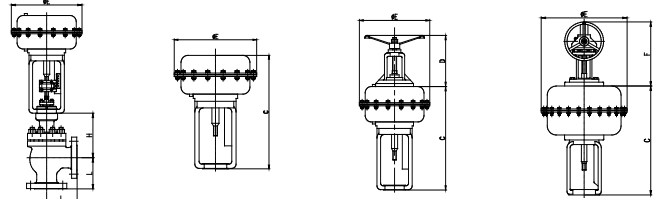

External Dimensions(Table6)

V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)


Body Size		 L H
ANSI900LB ANSI1500LB ANSI2500LB standard type heat sink type
INCH DN RF RJ
Welded		 RF RJ
Welded		 RF RJ
Welded
1/2 15 196 196 196 196 196 196 159 159 159 157 257
3/4 20 196 196 196 196 196 196 159 159 159 157 257
1 25 196 196 196 196 196 196 159 159 159 157 257
11/2 40 167 167 167 167 167 167 191 191 191 200 270
2 50 188 190 188 188 190 188 200 202 200 223 293
21/2 65 205 207 205 205 207 205 221 223 221 236 306
3 80 221 223 230 230 232 230 330 332 330 295 365
4 100 256 258 265 265 267 265 369 371 369 334 404


Body Size		 L H
PN220 PN320 stanadrd type heat sink type
INCH DN
Threaded
flange
Threaded
flange
1月2日 15 105 105 157 257
1 25 120 120 157 257
1 1/2 40 165 165 200 270
2 50 190 190 223 293
2 1/2 65 215 215 236 306
3 80 260 260 295 365
4 100 290 290 334 404


Actuator Size		 E C D F
370 370 409 214
370H 370 440 214
480 482 628 - 350

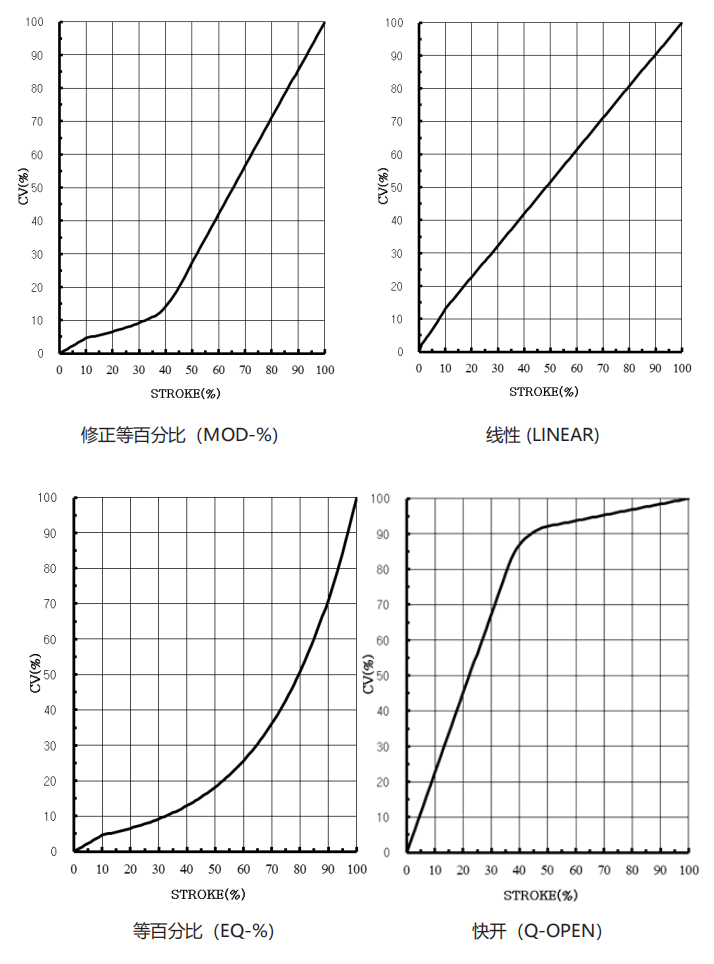

FLOW CHARACTERISTICS
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)

Send your message to this supplier
Send Now

V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)

Ask Latest Price
Product Detail
Brand Name :
WEYO
Model Number :
V100-SAH Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Contact Supplier
V100-SAH Series High Pressure Single Seated Angle Control Valve (Various Trim Types)

WEYO AUTO TECH

Verified Supplier
2 Years
shanghai, shanghai
Since 2003
Business Type :
Manufacturer, Seller
Main Products :
Control Valves, Servo Valves, Proportional Valve
Total Annual :
141790014-161450000
Employee Number :
1000~1200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Control Valves
MachineU China Products
Contact Supplier
Submit Requirement
