Light And Small Pneumatic Diaphragm Three Way Confluence Control Valves
Light And Small Pneumatic Diaphragm Three Way Confluence Control Valves
Specifications
Brand Name :
WEYO
Model Number :
ZMXQ
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Description
ZMXQ (X) type light and small pneumatic diaphragm three-way confluence (diversion) control valve
The ZMXQ (X) type pneumatic diaphragm light and small three-way control valve has two types: confluence and diversion. It consists of a multi-spring, zero-adjustable diaphragm actuator and a three-way confluence or three-way diversion control valve, and is an upgraded product of the ZMXQ (X) type. It is smaller and lighter in volume and weight than the ZMXQ (X), with a low center of gravity and good shock resistance. It can replace two single-seat and double-seat control valves, saving investment and occupying less space. The valve core structure adopts a cylindrical thin-walled window and is guided by the side.

The function of the confluence valve is to merge two streams of fluid into a third stream, while the diversion valve is to split one stream of fluid into two streams. The diversion and confluence valves can only be selected correspondingly, but when DN < 80, the confluence valve can be used in diversion occasions. Three-way control valves are usually used for two-phase regulation of heat exchangers, and can also be used for simple distribution regulation.

Technical Parameters

Nominal Diameter

DN(mm)

 25 32 40 50 65 80 100 125 150 200 250 300
Rated Flow Coefficient Kv Confluence 8.5 13 21 34 53 85 135 210 340 535 800 1360
Split Flow 85 135 210 340 535 800 1360

Nominal Pressure

PN(MPa)

 1.6；4.0；6.4
Flow characteristics linear, equal percentage

Actuator

Model

 ZMX A
B		 -2 ZMX A
B		 -3 ZMX A
B		 -4 ZMX A
B		 -5 ZMX A
B		 -6

Effective area (Cm²)

 280 400 630 1000 1600

Stroke (mm)

 16 25 40 60 100

Spring range (Kpa)

 20～100；40～200；80～240

Upper bonnet type

 Ordinary type (normal temperature type); Hot plate type (medium temperature type)

Medium temperature (℃)

 -20～200 (normal temperature type); -40～450 (medium temperature type)

Turndown ratio

 R=30:1

Flange standard

 Cast iron is in accordance with JB/T79.1—94, and cast steel is in accordance with JB/T79.2—94.

Performance indicators

Item without positioner with positioner
basic error % ≤±6.0 ±1.5
hysteresis % ±5.0 1.5
dead band % ±4.0 0.6
Always point deviation % air-to-open Start point ±2.5 1.5
end point ±6.0
air-to-close Start point ±6.0
end point ±2.5
rated stroke deviation % ±2.5 allowable leakage rate L/h 10⁻⁴ valve rated capacity

Allowable pressure difference (MPa)
Supply pressure spring range 25 32 40 50 65 80 100 125 150 200 250 300
0.14 0.02～0.10 0.88 0.61 0.39 0.23 0.26 0.17 0.1 0.11 0.08 0.05 0.041 0.028
0.28 0.08～0.24 2.1 1.42 0.9 0.54 0.61 0.41 0.24 0.27 0.18 0.11 0.096 0.066

Overall dimensions
Nominal diameter
DN
(mm)		 confluence split flow
D L H H1 L H H1
PNMPa PNMPa PNMPa PNMPa
1.6 4 6.4 normal temperature type medium temperature type 1.6 4 6.4 1.6 4 6.4 normal temperature type medium temperature type 1.6 4 6.4
25 285 185 190 200 537 687 140 150 160 185 190 200 567 717
32 200 210 210 539 689 150 160 170 200 210 210 579 729
40 285 220 230 235 610 760 160 170 180 220 230 235 645 795
50 250 255 265 640 79 180 190 0 250 255 265 674 824
65 360 275 285 295 824 984 200 220 220 275 285 295 864 1024
80 300 310 320 834 994 210 230 240 300 310 320 874 1034 225 250 265
100 350 355 370 970 1130 220 250 360 350 360 370 1000 1160 245 275 285
125 470 410 425 440 1050 1267 260 300 0 410 430 440 1092 1307 285 320 325
150 450 465 475 1060 1275 280 320 320 450 465 475 1110 1325 305 340 345
200 550 560 570 1186 1400 320 380 380 550 560 570 1326 1451 350 400 410
250 540 670 740 750 474 474 635 660 670
300 770 805 820 584 584 720 740 770

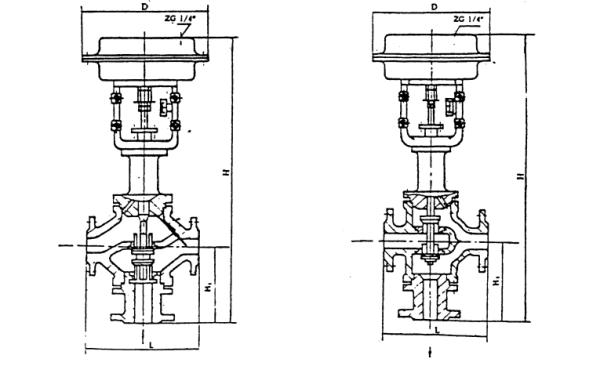

Light And Small Pneumatic Diaphragm Three Way Confluence Control Valves

Confluence valve Diverter valve

Material of main parts and applicable temperature range
Part name material temperature range
Valve body
upper and lower valve bonnets		 HT200 -20～+200℃
ZG230—450 -40～+450℃
ZGlCr18Ni9Ti -250～+550℃
valve core, valve seat, valve stem 1Cr18Ni9 -250～+550℃
gasket XB450 rubber asbestos sheet
stainless steel spiral wound gasket
packing polytetrafluoroethylene -40～+200℃
flexible graphite -200～+600℃
Upper and lower diaphragm covers, disc steel plate
compression spring 60Si2Mn
corrugated diaphragm 636 rubber-clamped reinforced polyester fabric
bracket HT200

Can be equipped with accessories
Name Model Remarks
Air Filter Regulator QFH—241 Output 0～0.30MPa
KZ03-2A Output 0.012～0.35MPa
Valve Positioner HEP-16 Signal 4～20mA
ZPD Signal 20～10mA; 4～20mA
Handwheel Mechanism PZXS side-mounted ZPX—2,Stroke h—16；ZPXS—3,h=25；ZPXS—4,h=40；ZPXS—5；h=60
ZDS top-mounted ZDS-3,h=16,ZDS-4,h=25,40；ZDS-5,h=40,60

Ordering Information
  1. Product model
  2. Nominal diameter
  3. Nominal pressure
  4. Flow coefficient Kv
  5. Flow characteristic
  6. Valve action mode (air-to-close or air-to-open, to be specified according to the relevant circuit)
  7. Spring range
  8. Material of valve body and trim
  9. Medium temperature
  10. Accessories (positioner, pressure reducing valve, handwheel, etc.)
