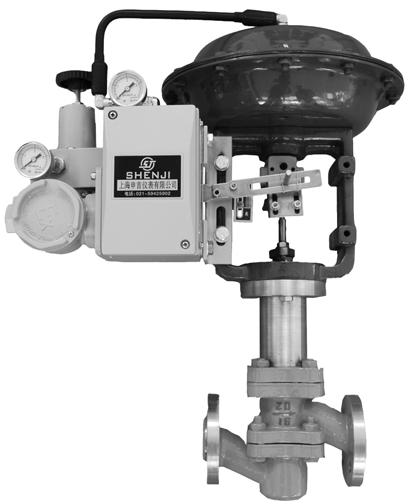

Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm
Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm
Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm
Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm
Specifications
Brand Name :
WEYO
Model Number :
HPF
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Straight-through single-seated control valve
Nominal diameter :
20～150mm
Nominal pressure :
PN1.6MPa
Operating pressure :
PN1.0MPa
Connection type :
Flanged type, JB/T79.1 PN1.6MPa
Material :
Carbon steel lined with F46
Operating temperature :
-30～+150℃
Packing :
Polytetrafluoroethylene (PTFE)
Description
HPF Lined Plastic Bellows Control Valve
The HPF lined plastic bellows control valve is a corrosion-resistant straight-through single-seated control valve. The inner wall of the valve body and the internal valve components that come into contact with the fluid are all lined with F46 anti-corrosion material. A bellows assembly is installed inside the valve. The top of the valve core is hermetically connected to the upper end of the PTFE bellows, and the lower end of the bellows is hermetically connected to the valve body, upper valve bonnet and support with bolts and nuts. In this way, the bellows isolates the medium from the outside world, ensuring that the valve core moves flexibly up and down. The valve has the following advantages:

  1. It can resist corrosion from almost all chemical media (including concentrated nitric acid and aqua regia).
  2. It has excellent sealing performance. Once the bellows is damaged, the control valve packing can serve as a second protective seal.

​

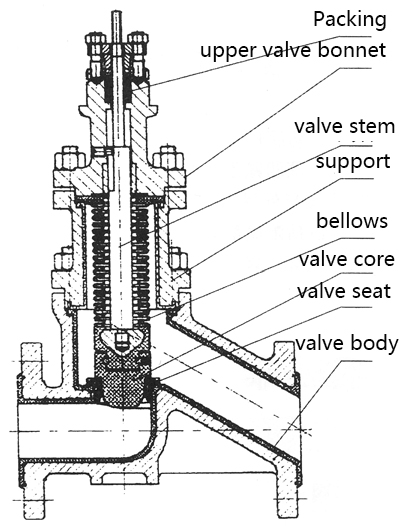

Structure Diagram of Internal Components of Lined Plastic Bellows Control Valve

Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm

The Kv value and stroke are shown in Table 1. Table 1
Nominal diameter DN(mm) 3/4＂ 20 25 32 40 50 65 80 100 150
seat diameter (mm) 3 4 5 6 7 8 10 12 15 20 26 32 40 50 65 80 100 150
rated flow coefficient Kv 0.08 0.12 0.2 0.32 0.5 0.8 1.2 2 3.2 5 8 12 20 32 50 70 100 240
flow characteristic linearity linear equal percentage
stroke(mm) 10 16 25 40 60

Figure 2 Flow Characteristic Curve

Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm

Allowable pressure difference is shown in Table 2 Table 2 Unit: MPa

Action type actuator air supply pressure (MPa) spring range
(MPa)		 positioner allowable pressure difference (MPa)
10 12 15 20 25 32 40 50 65 80 100 125 150
Air-closed type HA2D 0.14 0.02-0.10 With or with out 1 0.88 0.57 0.32 0.22 0.13 0.09 0.05
0.16 0.02-0.10 With 1 1 1 1 0.67 0.49 0.27
0.4 0.08-0.24 With 1 1 1 0.75
HA3D 0.14 0.02-0.10 With or with out 0.17 0.1 0.06 0.04 0.02 0.01 0.01
0.16 0.02-0.10 With 0.85 0.49 0.31 0.21 0.12 0.07 0.04
0.4 0.08-0.24 With 1 1 0.9 0.65 0.37 0.23 0.14
Air-to-open type HA2R 0.14 0.02-0.10 With or with out 1 0.88 0.57 0.32 0.22 0.13 0.09 0.05
0.28 0.08-0.24 With 1 0.95 0.39 0.39
HA3R 0.14 0.02-0.10 With or with out 0.17 0.1 0.06 0.04 0.02 0.01 0.01
0.28 0.08-0.24 With 1 0.6 0.43 0.3 0.17 0.1 0.06
Remarks: If the allowable pressure difference exceeds the provisions in this table, orders can be placed as special products.

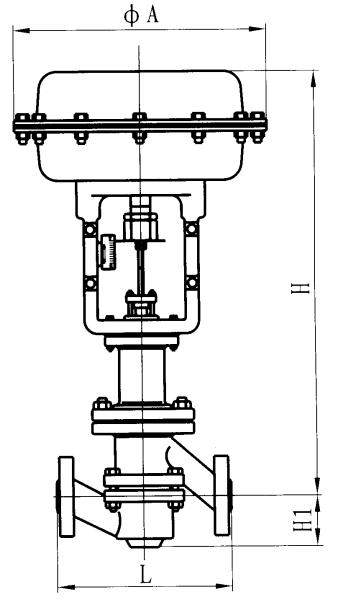

Overall dimensions
Nominal diameter
DN(mm)		 3/4＂ 20 25 32 40 50 65 80 100 150
L 120 180 185 200 220 250 275 300 350 480
ΦA 285 285 360 470
H 453 460 517 529 594 624 824 834 848 920
H1 50 65 70 80 79 85 100 114 162 240

Ordering Information
  1. Model
  2. Nominal diameter and Cv value
  3. Flow characteristic
  4. Accessories
  5. Medium pressure and temperature
  6. Valve action type
  7. Actuator
