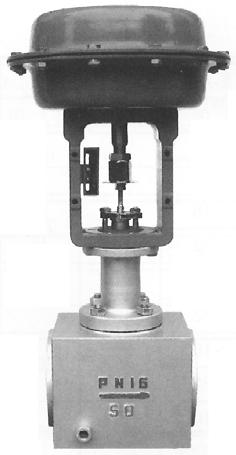

HCJ Insulated Jacketed Cage-Type Double-Seated Control Valve

The HCJ insulated jacketed cage-type double-seated control valve has the same performance as the HCB control valve. It is mainly applied in heat preservation occasions. When the crystallization temperature of the process medium is lower than the ambient temperature, or the fluid temperature decreases, resulting in increased viscosity or solidification of the fluid, a steam insulation jacket device is added at the valve body and upper valve bonnet of the control valve to ensure that the process proceeds automatically as required.

The Cv value and stroke are shown in Table 1. Table 1
Nominal diameter (mm) 40 50 65 80 100 150 200
seat diameter (mm) 25 32 40 32 40 50 40 50 65 50 65 80 65 80 100 100 125 150 125 150 200
rated Cv value high-precision sleeve 11 17 24 17 24 44 24 44 68 44 68 99 68 99 175 175 275 360 275 360 650
high-capacity sleeve equal percentage 36 60 100 140 220 420 820
linearity 40 75 110 150 240 435 850
rated stroke (mm) 25 38 50 75
Remarks:
  1. The flow characteristics of the high-precision metal valve seat comply with IEC534-2.
  2. Unless otherwise specified at the time of ordering, sleeves with ordinary flow characteristics are generally supplied.

Flange distance is shown in Table 2.
Table 2 Unit: mm
Nominal diameter A
ANSI
150
RF		 ANSI
300
RF		 ANSI600
RF		 JIS10K
RF		 JIS20K
RF		 JIS30K
RF		 JIS40K
RF		 PN1.6
RF		 PN4.0
male and female face		 PN6.4
male and female face
40 287 293 309 291 287 295 299 283 287 299
50 336 342 348 329 333 341 349 329 337 349
65 379 385 404 370 374 386 394 370 378 390
80 420 428 448 408 416 428 436 412 416 432
100 424 440 466 412 424 440 448 416 456 472
150 575 598 633 568 580 600 612 580 584 600
200 687 713 670 674 690 714 730 682 706 718

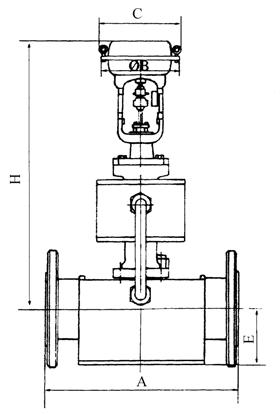

Overall dimensions are shown in Table 3 Unit: mm
Nominal diameter Actuator H C B E
40 HA2 663 281 267 86
HA3 736 363 350
50 HA2 666 281 267 98.5
HA3 739 363 350
65 HA2 731 281 267 116
HA3 804 363 350
HA4 1007 520 470
80 HA2 743 281 267 121
HA3 816 363 350
HA4 1021 520 470
100 HA2 795 281 267 148
HA3 868 363 350
HA4 1073 520 470
150 HA3 1046 363 350 181
HA4 1199 520 470
200 HA4 1348 520 470 253.5

Ordering Information
  1. Model
  2. Nominal diameter × Seat diameter
  3. Nominal pressure and flange connection type
  4. Materials of valve body and internal valve components
  5. Flow characteristics (sleeve with high-precision or ordinary flow characteristics)
  6. Actuator and air supply pressure
  7. Valve action type
  8. Accessories
