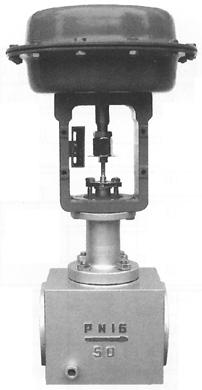

HTJ Insulated Jacketed Single-Seated Control Valve

The HTJ insulated jacketed single-seated control valve has the same performance as the HTS control valve and is mainly used in thermal insulation occasions. When the crystallization temperature of the process medium is lower than the ambient temperature, or the fluid temperature drops, causing an increase in viscosity or solidification of the fluid, a steam insulation jacket device is added to the valve body and upper valve bonnet of the control valve to ensure that the process proceeds as required.

The Cv value and stroke are shown in Table 1. Table 1
Nominal diameter
(mm)		 40 50 65 80 100 150 200
seat diameter
(mm)		 25 32 40 32 40 50 40 50 65 50 65 80 65 80 100 100 125 150 125 150 200
rated Cv value high-precision valve core 10 17 24 17 24 44 24 44 68 44 68 99 68 99 175 175 275 360 275 360 640
high-capacity valve core 30 50 85 125 200 420 700
quick-opening valve core 35 55 95 135 220 460 720
rated stroke
(mm)		 other valve cores 25 38 50 75
quick-opening valve core 10 13 19 25 30 50
Remarks: The flow characteristics of the high-precision metal valve seat comply with IEC534-2.

Flange distance is shown in Table 2. Table 2 Unit: mm
Nominal diameter A
ANSI150
RF		 ANSI
300
RF		 ANSI
600
RF		 JIS
10K		 JIS20K
RF		 JIS30K
PN4.0RF		 JIS40K
RF		 PN1.6
MPa		 PN4.0
MPa
male and female face		 PN6.4
MPa
male and female face
40 287 293 309 291 287 295 299 283 287 299
50 336 342 348 329 333 341 349 329 337 349
65 379 385 404 370 374 386 394 370 378 390
80 420 428 448 408 416 428 436 412 416 432
100 424 440 466 412 424 440 448 416 456 472
150 575 598 633 568 580 600 612 580 584 600
200 687 713 755 674 690 714 730 682 706 718
