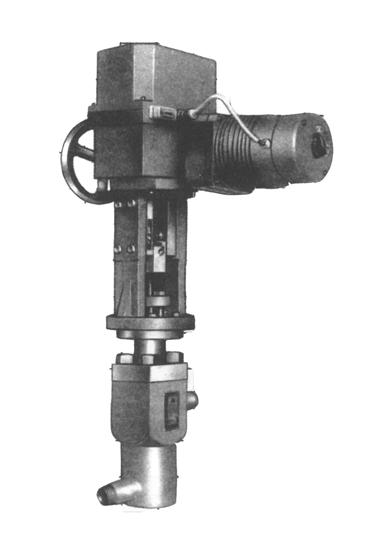

Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm
Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm
Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm
Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm
Specifications
Brand Name :
WEYO
Model Number :
HTN
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Cast angle-type or "Z"-type valve body
Nominal diameter :
25, 32, 40, 50, 80mm
Nominal pressure :
ANSI 1500, 2500 or PN25, 32MPa
Connection type :
Welded type
Material :
20# forged steel or stainless steel
Upper valve bonnet :
Normal temperature type ≤350℃
Description
HTN Desuperheating Water Control Valve

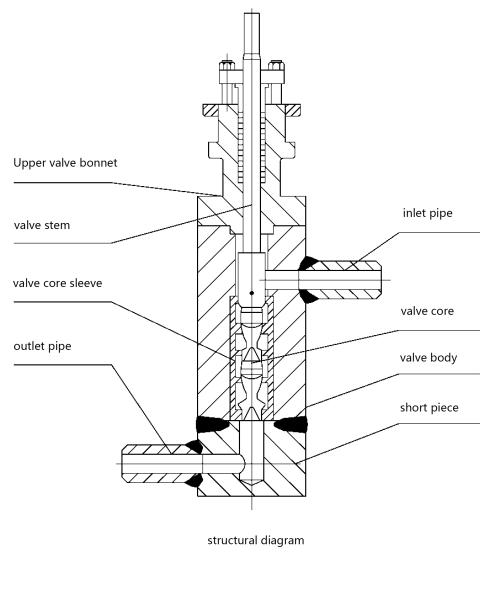

The HTN desuperheating water control valve is a cavitation-preventing multi-stage throttling control valve, also known as a high-differential pressure control valve. It is a novel-structured patented product in China. This valve is mainly used in power plants with units ≤600,000 KW to control the flow of spray desuperheating water for boiler main steam and reheat steam. It can also be applied in the petroleum and chemical industries to control the flow of high-pressure liquids.

The HTN desuperheating water control valve has the following advantages:

  1. The fluid is depressurized step by step, and its direction changes continuously, which increases the flow resistance, controls the flow velocity, prevents cavitation damage, and allows a pressure difference of 15MPa inside the valve.
  2. Multi-stage throttling: 4-stage throttling at large flow rates and 5-stage throttling at small flow rates, reducing flow erosion and abrasion.
  3. The throttling surface is separated from the sealing surface. The surfaces of the valve core and valve core sleeve are hardened to a hardness of approximately HRC70, ensuring tight closure and a long service life.
  4. The surface of the valve core is provided with large notches, so even if the fluid contains solid particles such as 2-3mm welding slag, the valve core will not get stuck and can move flexibly.
  5. It has excellent flow regulation performance and a wide adjustment range (about 60-70%).

​

Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm

Cv value and stroke

Nominal diameter

(mm)

 25 32 40 50 80
Cv value 4.3 5.5 6.9 5.4 7 8.8 7.6 10 12.4 13 16 18 18.7 25.7 32.8
rated stroke (mm) 20 25 38

Outline Dimension Table of Valve Body Assembly
Nominal diameter A B T H1 HA4 actuator remarks
H2 H3 H2 H3
25 167 175 217 37 383 158 electric actuator
Equipped according to customer requirements
32 167 175 235 40 400 158
40 167 180 270 50 429 165
50 187 200 270 50 429 165
80 211 207 390 80 577202 is equipped with VP5 581107 is equipped with ZSB3512

Attachment: A. The overall dimensions and connection dimensions of the HA actuator are as shown in the figure below. Unit: mm
Actuator stroke L H φd t K thread φB C diaphragm area (m²) weight
(Kg)
HA3D 25 196 459 80 30 M14×1.5 350 363 550 31
HA4D 25 202 612 90 35 M18×1.5 470 520 950 68
38.4 215

Installation method:

Vertical installation. There are two types of relative positions between the inlet pipe and the outlet pipe, as shown in the figure below:

Welded Type Desuperheating Water Control Valve 25mm 32mm 40mm 50mm 80mm

Ordering Information
  1. Model
  2. Medium name and inlet temperature
  3. A. For power plants: Provide the unit capacity, and the process parameters of primary and secondary temperature reduction, such as inlet pressure, outlet pressure, maximum flow rate, and pressure difference at maximum flow rate. If there is a reheater, provide the process parameters of the reheater.
    B. For other users: Inlet pressure, outlet pressure, maximum flow rate, and pressure difference at maximum flow rate
  4. Pneumatic or electric actuator (0-10mADC or 4-20mADC)
  5. Accessories
  6. Relative position of inlet pipe and outlet pipe (choose one from A, B, C, D)
  7. Dimensions of the connecting pipes between the control valve and the inlet and outlet
  8. Special requirements: If the user specifies to use an actuator from a certain manufacturer, please indicate it when placing the order. The actuator can be provided by the user or purchased by our company.
