Cast Straight Through Steam Trap Control Valves ANSI 600 1500 2500 PN6.4 25MPa 32MPa
Cast Straight Through Steam Trap Control Valves ANSI 600 1500 2500 PN6.4 25MPa 32MPa
Specifications
Brand Name :
WEYO
Model Number :
HTR
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Cast straight-through or angle-type valve body
Nominal diameter :
25, 32, 40, 50mm
Nominal pressure :
ANSI 600, 1500, 2500 or PN6.4, 25, 32MPa
Connection type :
Welded type
Material :
0Cr17Ni12Mo2Ti, 1Cr18Ni9, 12Cr1MoV
Upper valve bonnet :
High-temperature type: +230～+550℃
Flow direction :
High-inlet and low-outlet
Description

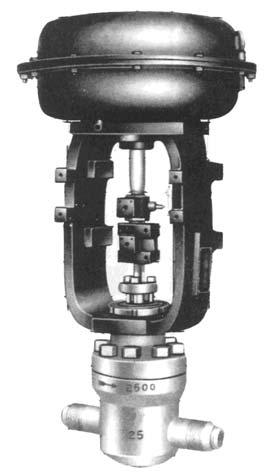

HTR Steam Trap Control Valve
The HTR steam trap control valve is a labyrinth-type high-differential pressure control valve. It is suitable for the main steam trap system and extraction system of thermal power plants to control high-temperature and high-pressure drop saturated water. This valve can also be applied in the petroleum and chemical industries to control high-pressure drop saturated liquids. It is one of the key control valves in thermal power plants.

The main advantages of the HTR steam trap control valve are as follows:

  1. The fluid channel is of a labyrinth type, which continuously changes the fluid direction, controls the fluid velocity, prevents cavitation damage, and allows a pressure difference of 20MPa.
  2. The throttling surface is separated from the sealing surface. Different throttling elements are provided according to the flow rate. The surface of the valve trim is hardened to a hardness of HRC70, ensuring tight closure and a long service life.
  3. The valve body assembly adopts a self-sealing structure, and the greater the pressure difference, the better the sealing performance.
  4. The valve body assembly and the actuator are connected in a floating manner, which can eliminate the jamming caused by the misalignment of the valve core and the push rod.

​

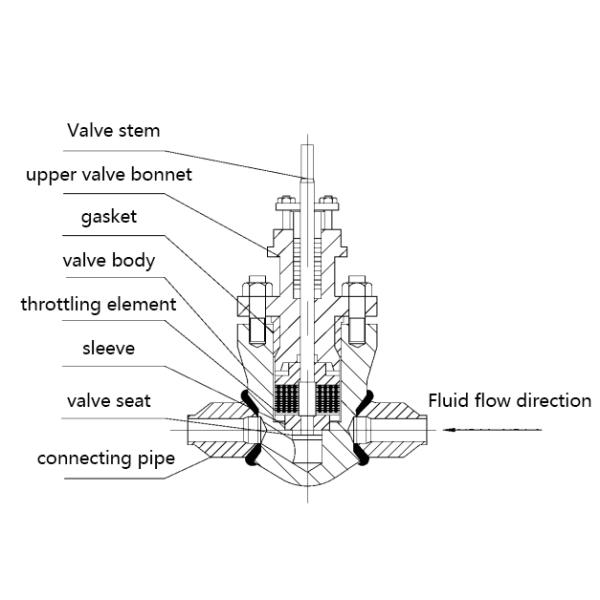

Structural Diagram of HTR Steam Trap Control Valve Body

Cast Straight Through Steam Trap Control Valves ANSI 600 1500 2500 PN6.4 25MPa 32MPa​

​

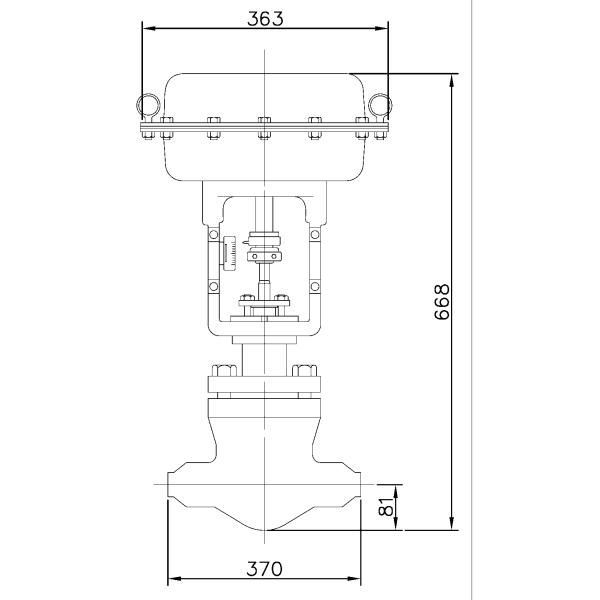

Overall dimensions of DN25 with HA3 actuator​

Cast Straight Through Steam Trap Control Valves ANSI 600 1500 2500 PN6.4 25MPa 32MPa​

Cv value and stroke
Nominal diameter (mm) 25 32 40 50
Cv value linearity 6 15.2
rated stroke (mm) 38

Ordering Information
  1. Model: HTR (straight-through type), HTR-A (angle type)
  2. Valve body type: straight-through type or angle type
  3. Nominal diameter
  4. Nominal pressure and pipe connection dimensions
  5. Materials of valve body and valve trim
  6. Cv value (maximum flow rate and minimum flow rate)
  7. Actuator and supply pressure; for electric actuator: control signal (4-20mADC or 0-10mADC)
  8. Valve action mode (air-closed valve or air-to-open valve)
  9. Accessories (positioner, handwheel mechanism, air filter pressure reducer, solenoid valve)
  10. Fluid name, temperature and specific gravity
  11. Inlet pressure and outlet pressure
