Pneumatic Diaphragm Low Temperature Angle Control Valve Single Seat 20-80mm
Pneumatic Diaphragm Low Temperature Angle Control Valve Single Seat 20-80mm
Specifications
Brand Name :
WEYO
Model Number :
ZJHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Single-seat cast angle valve
Nominal Diameter :
20～80mm
Nominal Pressure :
PN0.60MPa
Connection Type :
Welded type
Material :
Rust-proof aluminum (LF4)
Upper Valve Bonnet :
1Cr18Ni9Ti (applicable temperature: -200～+80℃)
Gasket :
Aluminum O-ring
Packing :
V-type polytetrafluoroethylene packing
Description

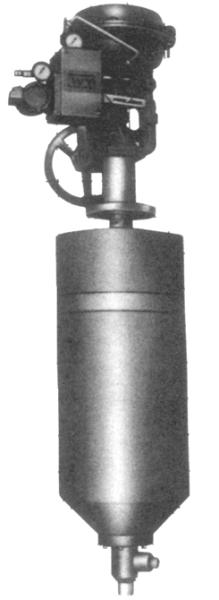

ZJHS Pneumatic Diaphragm Low-Temperature Angle Control Valve

ZJHS pneumatic diaphragm low-temperature angle control valves are mainly used in industrial sectors such as air separation equipment and oxygen generators. They work with regulators and other instruments to control low-temperature gas and liquid media, and are suitable for occasions with strict sealing requirements.

Flow coefficients Cv, Kv and stroke are shown in Table 1 Table 1
Nominal diameter(mm) 20———————————————————→
25—————————————————————→		 40 50 65 80
valve seat diameter(mm) 5 6 7 8 10 12 15 20 26 32 40 50 65 80
rated Cv and Kv values 0.25 0.4 0.63 1 1.6 2.5 4 6.3 10 16 25 40 63 100
stroke(mm) 14.3 25 38
leakage(L/min) 0.03 0.05 0.08 0.13 0.2 0.32 0.51 0.8 1.27 2.03 3.13 3.39 5.34 5.65

Allowable pressure difference: see Tables 2 and 3

A Air-to-close valve (with positioner): Table 2
actuator supply pressure
(MPa)		 spring range
(MPa)		 allowable pressure difference(MPa)
valve seat diameter(mm)
5 6 7 8 10 12 15 20 26 32 40 50 65 80
HA2D 0.14 0.02～0.10 0.6 0.53
0.4 0.08～0.24 0.6
HA3D 0.14 0.02～0.10 0.5 0.33
0.4 0.08～0.24 0.6

B Air-to-open valve (with positioner): Table 3
actuator supply pressure
(MPa)		 spring range
(MPa)		 allowable pressure difference(MPa)
valve seat diameter(mm)
5 6 7 8 10 12 15 20 26 32 40 50 65 80
HA2R 0.14 0.02～0.10 0.6 0.44 0.26 0.18
0.28 0.08～0.24 0.6
HA3R 0.14 0.02～0.10 0.17 0.11
0.28 0.08～0.24 0.6

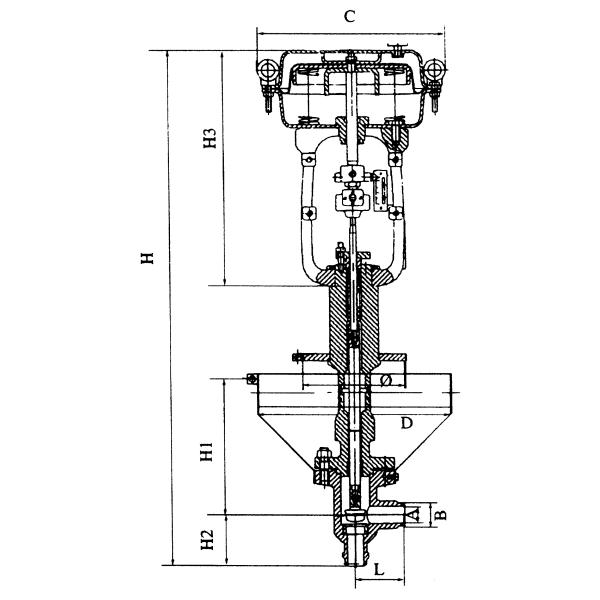

Overall dimensions: see Table 4 Table 4 Unit: mm
Nominal diameter
(mm)		 L φ D A B H2 H1 H3 C B weight
(kg)
20 75 154 295 28 20 75 700 334 281 1250 54
25 33 25 1250 59
32 85 40 32 85 1250 60
40 48 40 1274 61
50 110 58 50 110 1309 110
65 150 230 476 72 64 150 700 354 363 1328 131
80 150 90 82 150 1328 105

Pneumatic Diaphragm Low Temperature Angle Control Valve Single Seat 20-80mm

Ordering Information
  1. Model
  2. Nominal diameter × valve seat diameter or required Cv value
  3. Nominal pressure and connection type
  4. Valve body material
  5. Valve action form
  6. Flow characteristic
  7. Supply pressure
  8. Accessories
