3/4'' Pneumatic Diaphragm Low Temperature Single Seated Valve 20-300mm
3/4'' Pneumatic Diaphragm Low Temperature Single Seated Valve 20-300mm
Specifications
Brand Name :
WEYO
Model Number :
HAP
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Nominal Diameter :
3/4″, 20～300mm
Nominal Pressure :
PN1.6MPa (6.4MPa for 3/4″)
Connection Type :
Flanged type in accordance with JB/T79.1 PN1.6MPa; JB/T79.2 with male and female faces
Material :
ZG1Cr18Ni9, ZG0Cr17Ni12Mo2
Upper Valve Bonnet :
Low-temperature type -1, -2: -100～-60℃ -3, -4: -200～-100℃ -5, -6: -250～-200℃
Packing :
V-type polytetrafluoroethylene packing
Description

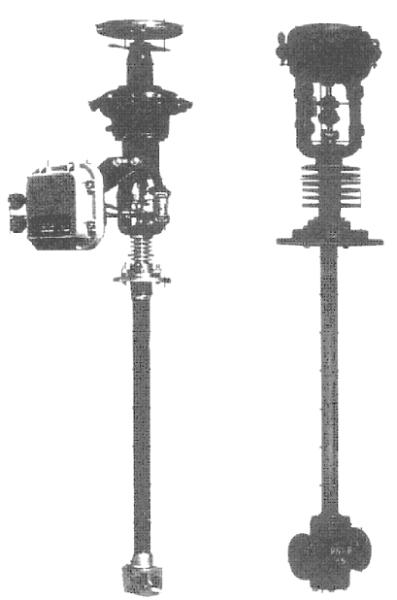

HAP Pneumatic Diaphragm Low-Temperature Single-Seat Control Valve

HAP pneumatic diaphragm single-seat control valves are widely used in industrial sectors such as air separation equipment, oxygen generators, petroleum, chemical industry, metallurgy, and power stations. They control the flow of low-temperature media and are suitable for occasions with strict requirements on leakage.

Flow coefficient is shown in Tables 1 and 2 Table 1
Nominal diameter
(mm)		 20 25 32 40 50 65 80 100 125 150 200 250 300
seat diameter
(mm)		 10 12 15 20 25 32 40 50 65 80 100 125 150 200 250 300
flow coefficient
Kv		 single seat 1.2 2 3.2 5 8 12 20 32 50 80 120 200 280 450 700 1100

Table 2
Nominal diameter 3/4″
seat diameter(mm) 3 4 5 6 7 8
flow coefficient Kv 0.08 0.12 0.2 0.32 0.5 0.8

Allowable pressure difference is shown in Table 3 (flow-opening state, P2=0 when closed) Table 3
Supply pressure
MPa		 spring range
MPa		 allowable pressure difference(MPa)
20 nominal diameter or seat diameter(mm)
3/4 10 12 15 20 25 32 40 50 65 80 100 125 150 200 250 300
0.14 0.02～0.10 6.4 8.2 5.7 3.7 2 0.88 0.61 0.39 0.23 0.26 0.17 0.1 0.11 0.08 0.05 0.041 0.028
0.28 0.08～0.24 11.5 8.7 4.8 2.1 1.42 0.9 0.54 0.61 0.41 0.24 0.27 0.18 0.11 0.096 0.066
actuator ZM1 HA2 HA3 HA4 VA5
effective diaphragm area
(cm2)		 200 310 550 950 1300
stroke(mm) 10 16 25 40 60 100

3/4'' Pneumatic Diaphragm Low Temperature Single Seated Valve 20-300mm

Low-temperature single-seat control valve (DN20～300mm) low-temperature single-seat control valve (DN3/4″)

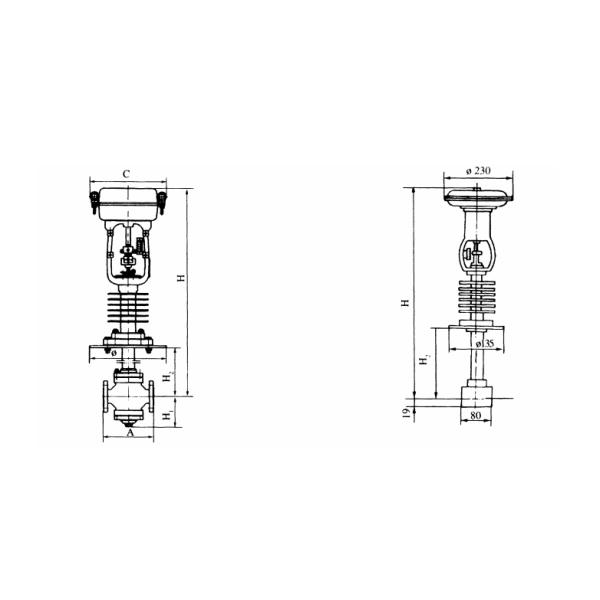

Overall dimensions are shown in Tables 4, 5 and the figure.

Table 4 Unit: mm
Nominal diameter 3/4″
seat diameter 3 4 5 6 7 8
overall dimensions H2 H
-100℃ -200℃ -250℃ -100℃ -200℃ -250℃
600 700 800 799 899 999

Low-temperature single-seat control valve (DN20～300mm) Table 5 Unit: mm
Nominal diameter A H1 H2 H φ C actuator
-100℃ -200℃ -250℃ -100℃ -200℃ -250℃
-1 -2 -3 -4 -5 -6 -1 -2 -3 -4 -5 -6
20 180 91 500 600 700 800 900 1000 1063 1163 1263 1363 1463 1563 280 281 HA2
25 185 112
32 200 118
40 220 134 320
50 250 154
65 275 178 600 700 800 900 1248 1348 1448 1548 1648 1748 380 363
80 300 191
100 350 195 470
125 410 243 700 800 900 1000 1611 1711 1811 1911 2011 2111 540 520 HA4
150 450 251 580
200 550 290 680
250 670 380 800 900 1000 1300 2535
(2665)		 2635
(2765)		 2735
(2865)		 2835
(2965)		 840 VA5
300 770 435 950
Note: The values in parentheses in the table are the data for the reverse-acting actuator.

Ordering Instructions
  1. Model
  2. Nominal diameter
  3. Nominal pressure
  4. Valve body material
  5. Material of internal valve components
  6. Flow characteristic
  7. Operating temperature (height H2)
  8. Supply pressure
  9. Valve action type
  10. Accessories
