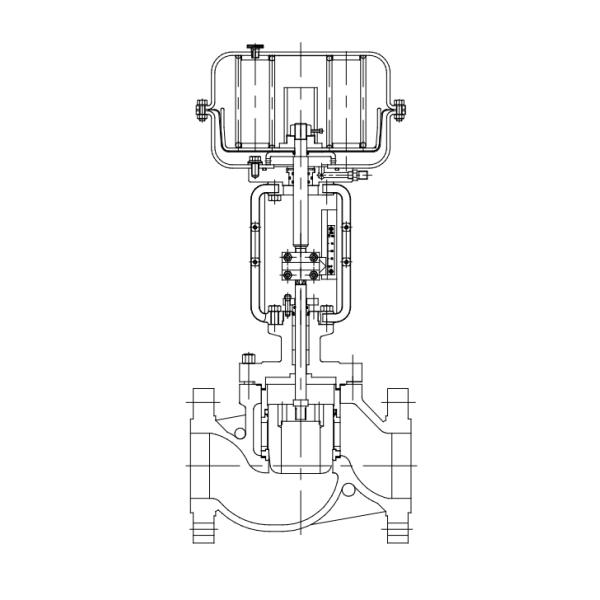

V200-CGP Series Cage Control Valve (Contoured -P)
V200-CGP Series Cage Control Valve (Contoured -P)
Specifications
Brand Name :
WEYO
Model Number :
V200-CGP Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Balance Seal :
Fluorine rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
Hydraulic Cylinder :
Optional
Description
V200-CGP Series Cage Control Valve features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional.
The series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. The contoured-p plug provides high precision adjustment and large adjustable ratio. Thus the series is suitable for conditions of high shut-off pressure and high precision adjustment.
The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.
Rated Cv and Stroke

valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
valve size
inch(mm)
inch(mm)
Rated Cv
stroke(mm)
1-1/2 (40) 1-1/2 (40) 28 20 5 (125) 3 (80) 100 40
1-1/2 (40) 33 20 4 (100) 170 40
2 (50) 1-1/2 (40) 28 20 5 (125) 280 60
2 (50) 40 30 300 60
50 30 6 (150) 4 (100) 170 40
2-1/2 (65) 1-1/2 (40) 28 20 5 (125) 280 60
2 (50) 40 30 6 (150) 360 60
2-1/2 (65) 70 30 400 60
80 30 8 (200) 6 (150) 360 60
3 (80) 2 (50) 40 30 7 (150) 500 70
2-1/2 (65) 70 30
3 (80) 100 40
120 40
4 (100) 2-1/2 (65)
3 (80)		 70 30
100 40
4 (100) 170 40
200 40

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB ℃
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.90 1.90 2.00 2.00 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.90 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.70 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.10 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.40 1.40 1.40 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.20 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.70 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.90 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.50 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range

No.
Material		 ℃
Temperature
Range
Remark
1 410 -29～427
Heat treatment
2 440 -29～427
Heat treatment
3 17-4PH -29～427
Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510
Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550
Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620
Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538
Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538
Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538
Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538
Partial or all stellite alloy overlay welding
according to requirements

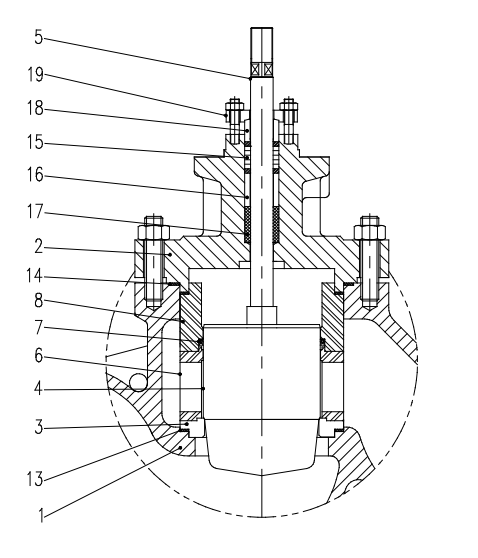

Valve Internal Structure
V200-CGP Series Cage Control Valve (Contoured -P)
No. N am e (Q′ty)
1 body 1
2 bonnet 1
3 seat 1
4 plug 1
5 stem 1
6 cage 1
7 balance seal 1
8 balance cylinder 1
13 seat gasket 2
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring
DA:Direct action MPa
550 480 370 290
Actuator specification
0.36 0.36 0.36 0.28
Supply pressure MPa
140-280/60
120-280/70		 110-220/40
80-250/60
80-280/70		 130~230/20

80~230/30

80~280/40		 60~170/20

60~220/30

kPa
Spring range

mm Stroke

VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
- 10 - 3 - 10 40 1-1/2
Seat Size
inch/mm
- 10 3 10 50 2
10 - 3 - 10 - - - 65 2-1/2
10 3 - 10 - - - 80 3
10 3 - 10 - - 100 4
10 3 - 10 , - - - 一 125 5
10 3 - 10 - - - - - 150 6
10 3 - 10 - - - - 175 7

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE
DA:Direct action MPa
550 480 370 290
Actuator specification
0.36 0.36 0.36 0.28
Supply pressure MPa
140-280/60
120-280/70		 110-220/40
80-250/60
80-280/70		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 - 10 40 1-1/2 Seat
Size inch/

mm
10 - 10 50 2
10 - - 10 65 2-1/2
10 - - 10 80 3
10 - - 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7

Diaphragm Actuator/Graphite Packing Balance Seal Graphite
DA:Direct action MPa
12" 480 370
Actuator specification
0.5 0.36 0.36
Supply pressure MPa
6070 140-220/30
110-220/40		 130~230/20
80~230/30

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 40 1-1/2 inch/

mm
10 10 50 2
10 10 65 2-1/2
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring
RA:Reverse action MPa
480H 480 370H 370 290
Actuator specification
0.36 0.36 0.40 0.36 0.28
Supply pressure MPa
130-280/60
100-280/70		 110-280/60
80-280/70		 194-352/30
142-352/40		 130~230/20
130~280/30
80~280/40		 110~220/20
60~220/30

kPa
Spring range

mm

Stroke

VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
VI
V
IV
Sealing surface Leakage
10 3.0 - 10 40 1-1/2 inch/

mm
10 3.0 10 50 2
- 10 - 3.0 - 10 65 2-1/2
- - 10 - 3.0 - 10 80 3
10 3.0 - 10 100 4
10 3.0 10 125 5
10 3.0 10 150 6
10 3.0 10 175 7

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE
RA: Reverse action MPa
480H 480 370H 370 290
Actuator specification
0.36 0.36 0.40 0.36 0.28
Supply pressure MPa
130-280/60
100-280/70		 140-250/40
110-280/60
80-280/70		 194-352/30
142-352/40		 130~230/20
130~280/30
80~280/40		 110~220/20
60~220/30

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 - 10 40 1-1/2
inch/mm
10 - 10 50 2
10 - 10 65 2-1/2
- 10 - 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7

Diaphragm Actuator/Graphite Packing Balance Seal Graphite
RA:Reverse action MPa
12" 480H 480 370H 370
Actuator specification
0.5 0.36 0.36 0.40 0.36
Supply pressure MPa
6070 130-280/60
100-280/70		 170-250/30
140-250/40		 194-352/30
142-352/40		 130~230/20
130~280/30

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 40 1-1/2
inch /mm
10 10 50 2
10 10 65 2-1/2
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7

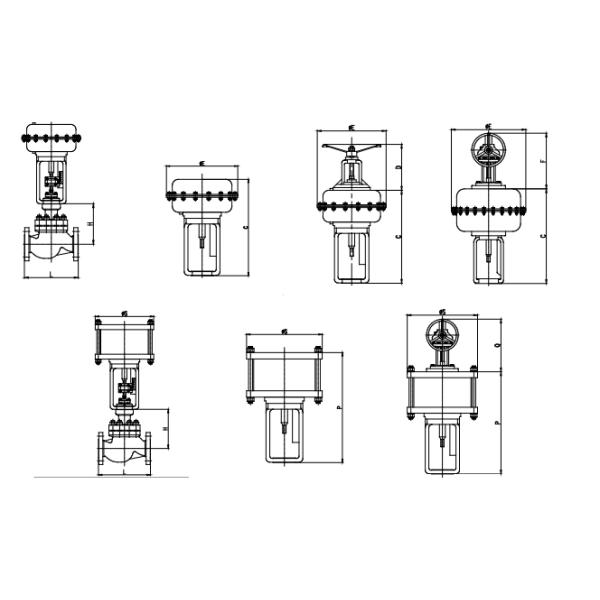

External Dimensions
V200-CGP Series Cage Control Valve (Contoured -P)

Body Size		 L H
ANSI150LB ANSI300LB ANSI600LB standard type heat sink type
INCH DN RF RJ welded RF RJ welded RF RJ welded
11/2 40 222 222 251 235 235 251 251 251 251 145 245
2 50 254 257 286 267 270 286 286 289 286 156 256
21/2 65 276 279 292 292 295 292 311 314 311 195 295
3 80 298 301 318 318 321 318 337 340 337 210 310
4 100 352 355 368 368 371 368 394 397 394 235 335
5 125 403 406 425 425 428 425 457 460 457 302 372
6 150 451 454 473 473 476 473 508 511 508 326 396
8 200 543 546 568 568 571 568 610 613 610 385 455

Actuator Size		 E C D F S P Q
290 292 369 214 - - - -
370 370 409 214 - - - -
370H 370 440 214 - - - -
480 482 628 - 350 - - -
480H 482 680 - 387 - - -
550 560 703 - 387 - - -
12＂ - - - - 370 606 393
16＂ - - - - 472 626 450

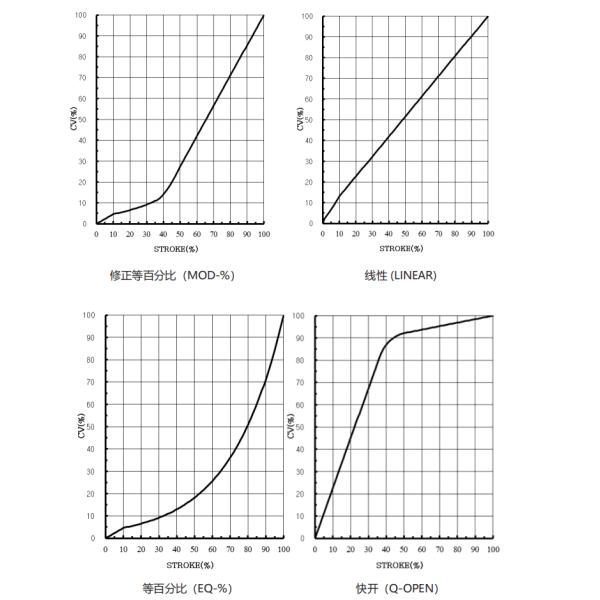

FLOW CHARACTERISTICS
V200-CGP Series Cage Control Valve (Contoured -P)
