HAV Venturi Angle Valve
HAV Venturi Angle Valve
Specifications
Brand Name :
WEYO
Model Number :
HAV
Place of Origin :
China
MOQ :
Negotiable
Price :
Based on oroiect reauirements
Payment Terms :
L/C, T/T
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
Single-seat cast angle valve
Nominal diameter :
25～150mm
Nominal pressure :
ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
Connection type :
Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female face)
Materials :
HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti
Upper bonnet :
Normal temperature type (P): -17～+230℃ Extended type Ⅰ (E1): -45～-17℃, +230～+566℃ Bellows seal (B): Welded type (BD): -50～+350℃ Formed type (BF): -30～+300℃
Gland type :
Bolt compression type
Packing :
V-type PTFE packing, impregnated PTFE asbestos packing, asbestos braided packing
Description

The HAV Venturi angle valve is a control valve with a top-guided structure. The valve body features a smooth flow path, resulting in low pressure drop loss and large flow capacity. The valve core has a large guiding area, ensuring excellent vibration resistance. The control valve is equipped with a multi-spring diaphragm actuator, which is compact in structure and provides large output force. Angle valves are widely used to control fluids containing particles, slurries, viscous fluids, or flashing fluids.

Cv value and stroke: see Table 1
Nominal diameter(mm) 25 40 50 65 80 100 125 150
Valve seat diameter(mm) - - - - - - 20 25 32 25 32 40 32 40 50 40 50 65 50 65 80 65 80 100 80 100 125
Rated Cv value 1 1.6 2.5 4 6.3 11 11 17 24 17 24 44 24 44 68 44 68 99 68 99 175 99 175 275 175 275 395
Rated stroke(mm) 14.3 25 38 50 50

Allowable pressure difference: see Table 2
The valve is equipped with HA or VA actuators (side-in and bottom-out)
Air-closed or air-open valves Table 2
Actuator Supply pressure
(MPa)		 Spring range
(MPa)		 Positioner Allowable pressure difference (MPa)
Valve seat diameter (mm)
Cv
1.01.6		 Cv
2.5		 Cv
4.06.3		 Cv
11		 25 32 40 50 65 80 100 125
HA2D,R 0.14 0.02-0.10 With or With out 4 4 4 4 2.19 1.01 0.68 0.41 0.25 0.18
0.28 0.08-0.24 With 4 4 4 4 4 2.01 1.37 0.82 0.5 0.36
HA3D,R 0.14 0.02-0.10 With or With out 1.79 1.21 0.72 0.45 0.32 0.18 0.12
0.28 0.08-0.24 With 3.57 2.42 1.45 0.89 0.64 0.36 0.23
HA4D,R 0.14 0.02-0.10 With or With out 3.09 2.09 1.25 0.77 0.56 0.31 0.2
0.28 0.08-0.24 With 4 4 2.5 1.54 1.11 0.62 0.4
VA5D,R 0.14 0.02-0.10 With or With out 1.6 1 0.75 0.42 0.27
0.28 0.04-0.20 With 3.2 2.1 1.5 0.85 0.54
VA6R 0.5 0.19-0.40 0.91 0.58
Remarks:

1.The numbers in the dark boxes indicate the standard specification actuators matched with the valve.

2.The maximum allowable pressure difference shall not exceed the maximum value specified in the ANSI B16.34 or JIS B2201 standards.

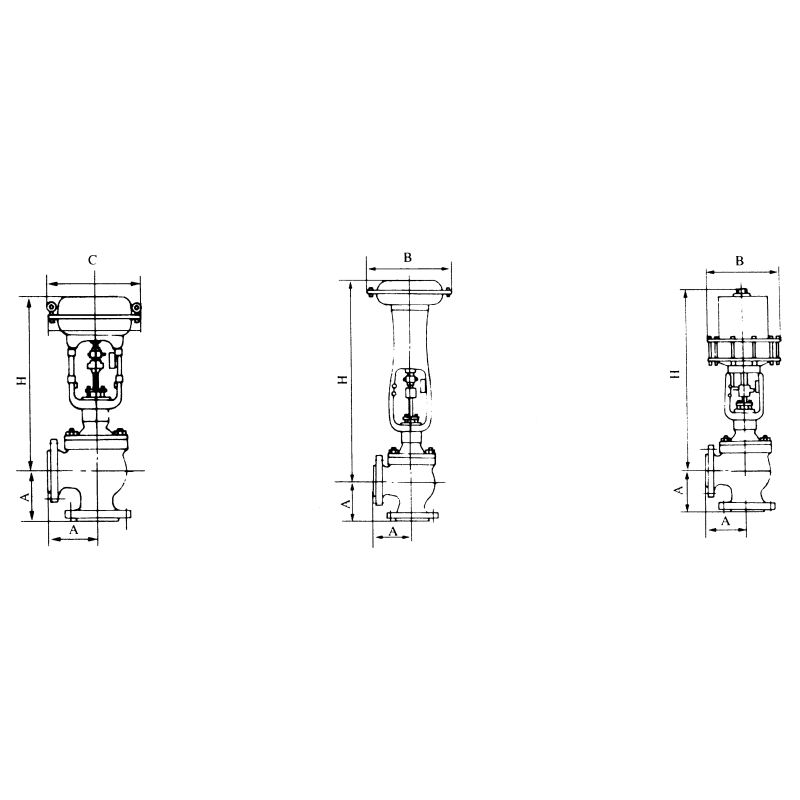

Overall dimensions Table 4 Unit: mm
Nominal diameter Actuator H C φB
Normal temperature type Extended type Ⅰ Bellows seal
25 HA2D,R 465 620 - 281 267
40 HA2D,R 475 625 281 267
HA3D,R 580 730 363 350
50 HA2D,R 475 625 281 267
HA3D,R 580 730 363 350
65 HA2D,R 545 695 765 281 267
HA3D,R 600 750 363 350
HA4D,R 840 990 520 470
80 HA2D,R 555 705 775 281 267
HA3D,R 610 760 363 350
HA4D,R 840 990 520 470
100 HA2D,R 555 710 775 281 267
HA3D,R 610 765 363 350
HA4D,R 845 995 520 470
125 HA3D,R 700 850 990 363 350
HA4D,R 865 1015 520 470
150 HA3D,R 720 870 1005 363 350
HA4D,R 885 1035 - 520 470
Remarks:

1.The dimension in column H of the table refers to the value when the control valve is not equipped with a handwheel mechanism. If a top-mounted handwheel mechanism is installed, the dimension of the handwheel mechanism should be added accordingly.

HAV Venturi Angle Valve

Equipped with HA,VA5,VA6 actuator
