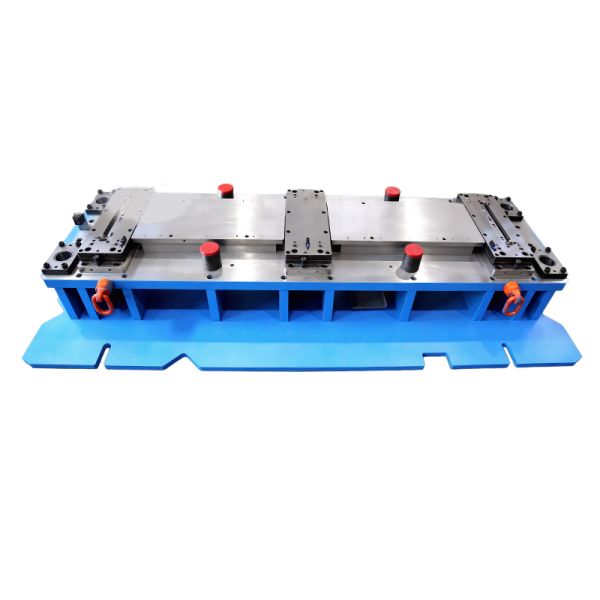

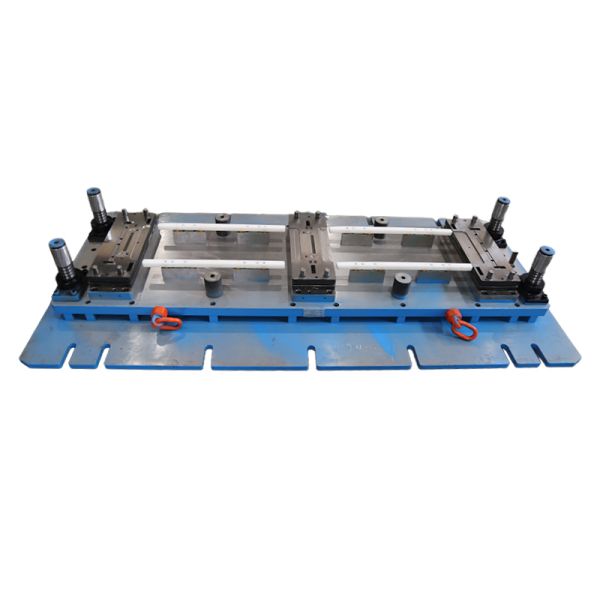

Stamping Mould For Stainless Steel Washing Machine Drum
Stamping Mould For Stainless Steel Washing Machine Drum
Stamping Mould For Stainless Steel Washing Machine Drum
Stamping Mould For Stainless Steel Washing Machine Drum
Stamping Mould For Stainless Steel Washing Machine Drum
Stamping Mould For Stainless Steel Washing Machine Drum
Specifications
Brand Name :
IDO
Model Number :
Washing Machine Drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Product Type :
Stamping Mould
Application :
Washing Machine Drum
Process :
Sheet Metal Stamping
Mould Material :
Tool Steel
Drum Material :
Stainless Steel / Sheet Metal
Design Service :
OEM / ODM Available
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Description

Stamping Mould for Stainless Steel Washing Machine Drum


Description

This high precision stamping mould is designed for sheet metal forming of washing machine inner drums.
The mould ensures stable stamping quality, accurate hole positioning and smooth surface finish, meeting the structural strength and balance requirements of washing machine inner drums during high-speed operation.

It is suitable for continuous mass production in household appliance manufacturing plants.

Key Features

  • Precision Stamping Performance
    The stamping mould provides uniform hole size and consistent layout, improving inner drum balance and washing efficiency.

  • Robust Mould Structure
    Manufactured from high-quality tool steel, the mould maintains dimensional stability under long-term stamping operations.

  • Optimized for Cylindrical Drum Geometry
    Specially engineered for curved inner drum structures with complex perforation patterns.

  • Long Service Life
    Designed for high-cycle stamping production with reduced wear and low maintenance cost.

  • Customizable Design
    The mould can be customized according to drum diameter, material thickness and stamping requirements.

Competitive Advantages

  • Dedicated die design for home washing machine inner drums
  • Stable punching quality for small-capacity drum production
  • Reduced burrs and deformation during punching
  • Long service life with low maintenance requirements
  • Flexible customization for different washing machine models


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
