Specifications
Brand Name :
IDO
Model Number :
washing machine drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Application :
Drum forming for washing machines
Applicable Drum Type :
Cylindrical sheet metal inner drums
Mould Base Material :
Premium-grade tool steel
Recommended Workpiece Material :
Stainless steel sheet
Service Durability :
Suitable for long-term industrial stamping operations
Target Industry :
Home appliance manufacturing
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Description

Custom Sheet Metal Stamping Mould for Household Washing Machine Drums


Description

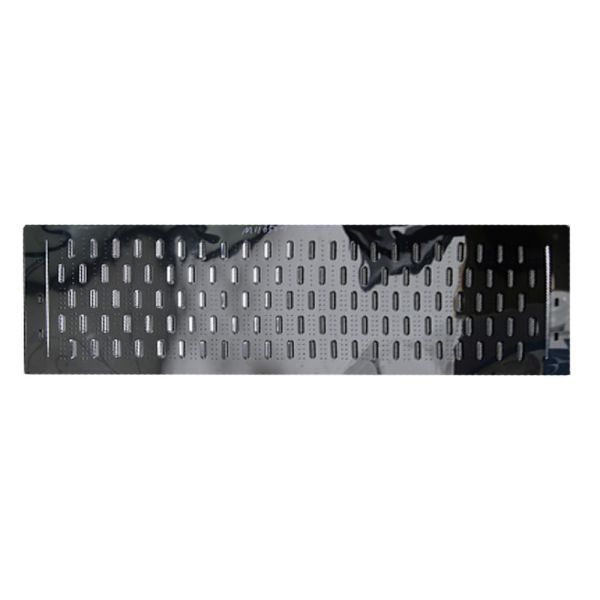

The Washing Machine Inner Drum Sheet Metal Stamping Mould is engineered for precision stamping and forming of inner drums used in household washing machines.
With a reinforced mould structure and optimized stamping design, the mould ensures uniform hole distribution, accurate cylindrical geometry, and stable forming quality, which are critical for washing performance and long-term durability.

Manufactured using high-grade mould steel and advanced machining processes, this stamping mould offers reliable operation, high production efficiency, and extended service life. It is suitable for continuous and large-volume production, and can be customized according to different drum diameters, capacities, hole patterns, and material specifications, making it a dependable solution for appliance manufacturers and OEM customers.


Quick Detail

  • Product Name: Washing Machine Inner Drum Sheet Metal Stamping Mould
  • Mould Category: Stamping Mould
  • Application Area: Washing Machine Inner Drum Fabrication
  • Process Method: Sheet Metal Stamping & Forming
  • Compatible Materials: Stainless Steel Sheet (e.g. SUS430 / SUS304)
  • Key Advantages: High precision forming, consistent hole layout, long mould service life
  • Production Type: Continuous / High-volume Production
  • Customization Service: Available


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
