Specifications
Brand Name :
IDO
Model Number :
Washing Machine Drum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Product Type :
Punching Mould
Application :
Washing Machine Drum
Material :
Tool Steel
Process :
Sheet Metal Punching
Mould Structure :
Customized
Hole Pattern :
Customized
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Description

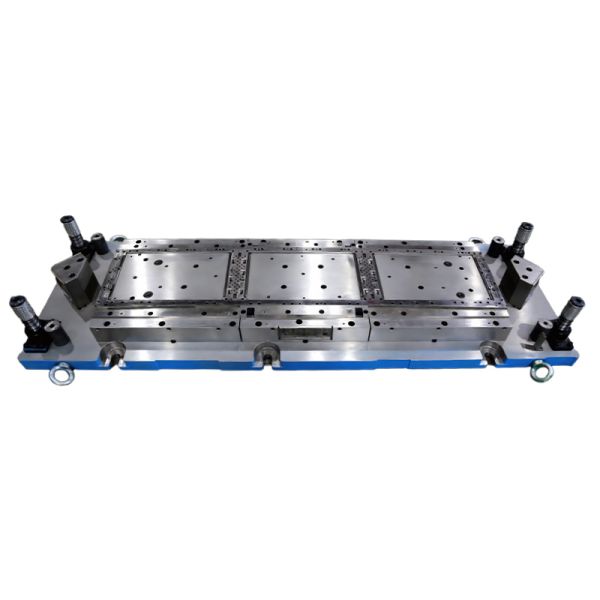

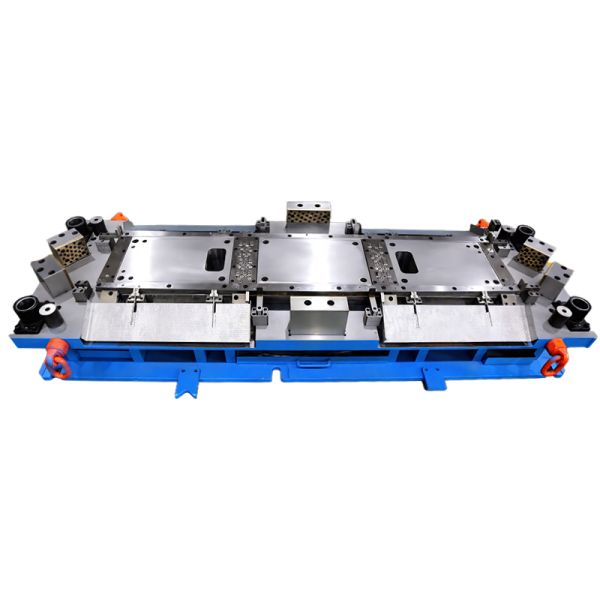

Customized Punching Mould for Stainless Steel Washing Machine Drum


Description

This high precision punching mould is specially developed for sheet metal forming of washing machine inner drums.
The mould is designed to achieve accurate punching, stable hole patterns and smooth edges, ensuring excellent balance, strength and appearance of the inner drum during high-speed rotation.

It is suitable for large-scale production lines in household appliance manufacturing.

Key Features

  • Accurate Punching Performance
    The mould guarantees consistent hole size, spacing and alignment, which are critical for washing machine inner drum balance and water flow performance.
  • High Strength Mould Structure
    Manufactured from high-quality tool steel, the mould offers excellent wear resistance and deformation control under continuous punching operations.
  • Optimized for Inner Drum Design
    Specially engineered for cylindrical drum structures, supporting complex hole layouts and curved surfaces.
  • Long Service Life
    Designed for high-cycle punching production with stable performance and reduced maintenance frequency.
  • Flexible Customization
    Mould design can be customized based on inner drum diameter, material thickness and hole pattern requirements.

Competitive Advantages

  • Specialized mould design for washing machine inner drum punching
  • High consistency of hole layout and punching quality
  • Reduced burrs and deformation during punching
  • Stable operation suitable for continuous mass production
  • Improved efficiency and finished drum quality


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
