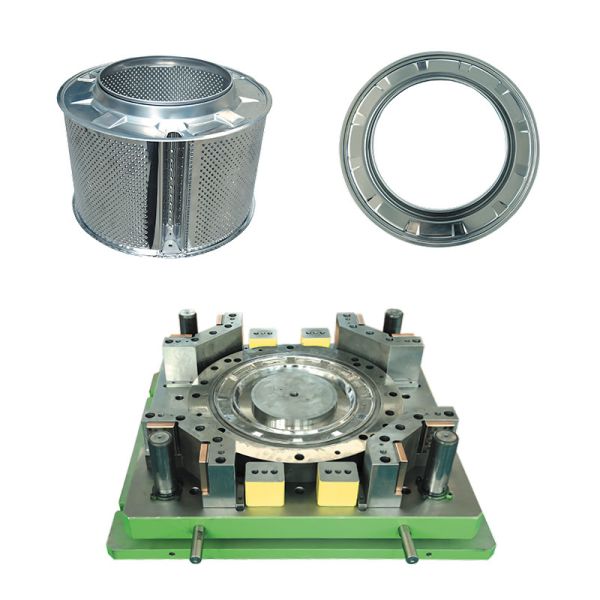

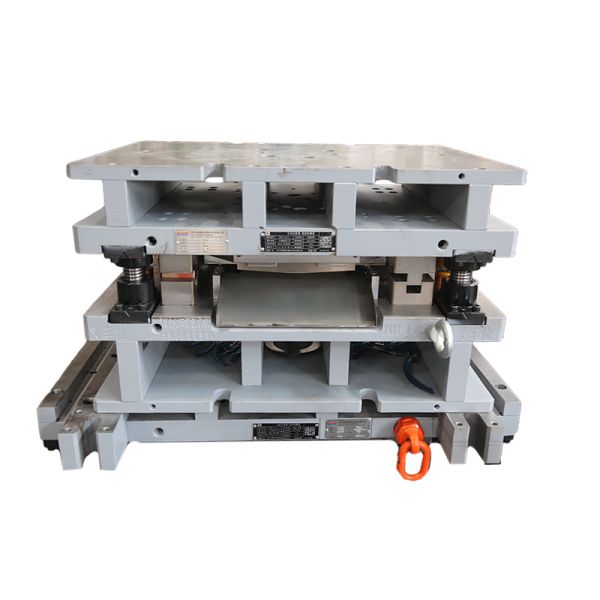

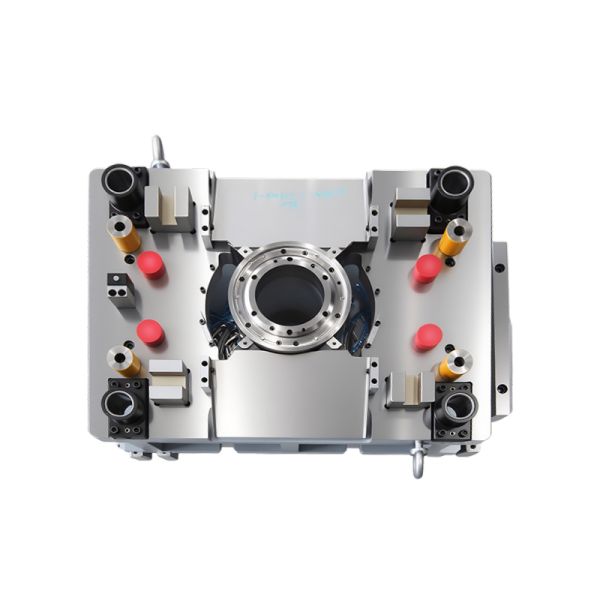

SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
Specifications
Part Material :
SUS430
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Part Name :
Washing machine front cover
Mould Weight :
3T
Punch Tonnage :
250T
Mould Type :
Stage mold
Mould Size :
1200*950*560mm
Brand Name :
IDO
Model Number :
washing machine front cover
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Description
SUS430 Sheet Metal Stage Stamping Die for Household Washing Machine Front Cover 1200*950*560mm
Product Description

This custom stage stamping die is designed for forming SUS430 washing machine front covers.

The die structure, forming operations and tooling specifications are developed according to the customer’s approved front-cover drawing, material thickness, press parameters and production requirements.

Manufacturing and Inspection

Manufacturing processes include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.

Selected die components may undergo vacuum heat treatment, deep cryogenic treatment, polishing or TiCN coating according to their materials and functions.

Inspection equipment includes CMMs, optical profile projectors, height gauges, material spectrometers and micrometers.

Information Required for Quotation
  • Washing machine front-cover drawings;
  • SUS430 sheet thickness;
  • Required production volume;
  • Press specifications;
  • Critical dimensions and tolerances.

Final die specifications, service life and acceptance criteria will be confirmed during the technical review.

Main Specifications
Item Specification
Die Type Stage stamping die
Application Washing machine front cover
Workpiece Material SUS430 stainless steel
Press Capacity 250 metric tons
Die Dimensions 1200 * 950 * 560 mm
Approximate Die Weight 3,000 kg
Standard Components MISUMI
Design Life 1,000,000 strokes under agreed operating and maintenance conditions
Minimum Order Quantity 1 set
Lead Time Approximately 6–8 weeks
Packaging Rust-preventive oil, vacuum wrapping and export-grade wooden case
