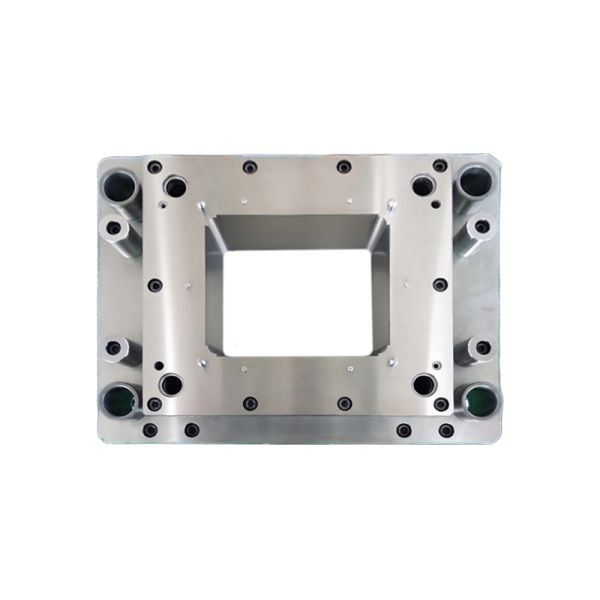

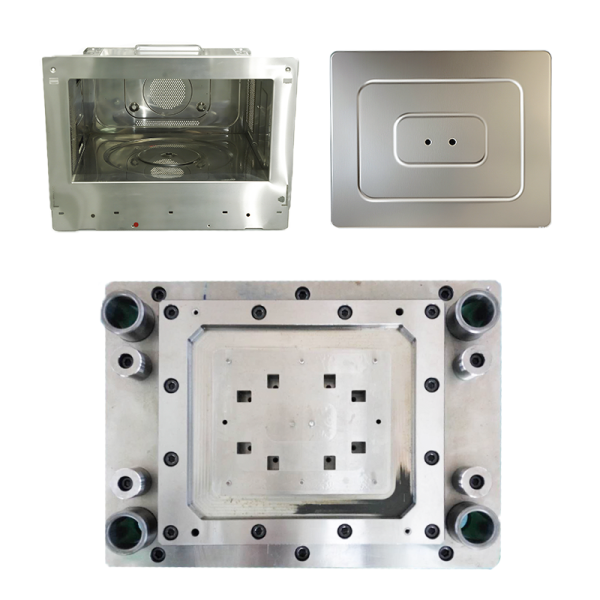

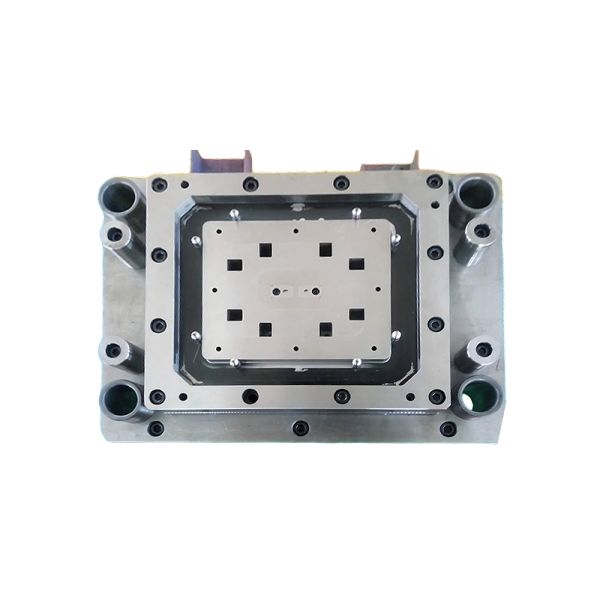

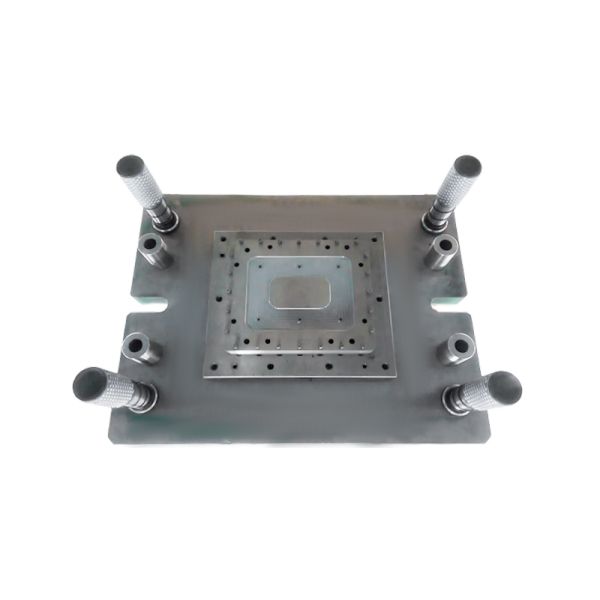

OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
OEM Metal Stamping Die For Microwave Oven Baffle
Specifications
Part Material :
DC04
Mould Life :
1,000,000 shots
Punch Tonnage :
300T
Standard Parts Brand :
MISUMI
Part Name :
Microwave oven baffle
Mould Weight :
0.4T
Brand Name :
IDO
Model Number :
microwave oven baffle
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Type :
Stage mold
Mould Size :
850*550*345mm
Description

OEM Metal Stamping Die For Microwave Oven Baffle


Description:

The Metal Stamping Die for Fabricating Microwave Oven Baffle Components is designed for precision and consistent performance. It enables accurate shaping of baffle parts, ensuring smooth production cycles and uniform quality. Built for durability and reliable operation, this die supports efficient fabrication processes and high-quality output in household appliance manufacturing.


Quick Detail:

  • Cycle: 6~14s (determined by product characteristics)
  • Fast repair within 30 minutes; fast tool change within 15 minutes
  • Punch edge sharpening: after 300,000~500,000 shots
  • Use software to control the movement of each die.
  • To produce cabinet, only needs one set of press table and tools, which can reduce equipment cost.
  • Only need to dismantle the sub-die when repairing or maintenance, without dismantling whole structure.
  • One set of tools can produce several models. The tool changeover can be realized through program.


Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)
