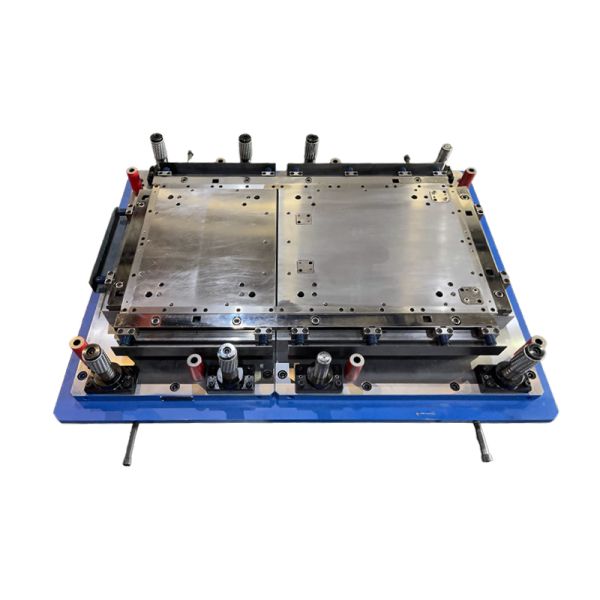

Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Home Appliance DC52D Sheet Metal Stamping Die Refrigerator Back Panel
Specifications
Part Material :
DC52D
Part Name :
Refrigerator back panel
Mould Life :
1,000,000 shots
Punch Tonnage :
250T
Standard Parts Brand :
MISUMI
Mould Weight :
3T
Brand Name :
IDO
Model Number :
refrigerator back panel
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Type :
Stage mold
Mould Size :
1400*1100*600mm
Description

Home Appliance DC52D sheet Metal Stamping Die Refrigerator Back Panel

Description:

The DC52D Sheet Metal Stamping Die is designed for forming refrigerator back panels with stable dimensions, smooth surfaces, and consistent stamping quality. It supports processes such as blanking, punching, forming, and flanging, helping reduce deformation and improve production efficiency in mass manufacturing.

Quick Detail:

  • Cycle: 6–14 seconds, product-specific.
  • Fast repair achievable in 30 minutes, tool change within 15 minutes.
  • Punch edges require sharpening every 300k–500k strokes.
  • Die movement controlled by software.
  • Producing cabinets needs only one press table and tool set, reducing cost.
  • Only sub-dies dismantled for maintenance.
  • Single tool set can make multiple models; tool changeover via program.

Specifications:

Mould/Tool Type Stage tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade terms FOB (Shanghai)
Mould Lead time Generally 6~8 weeks (as per actual situation)
