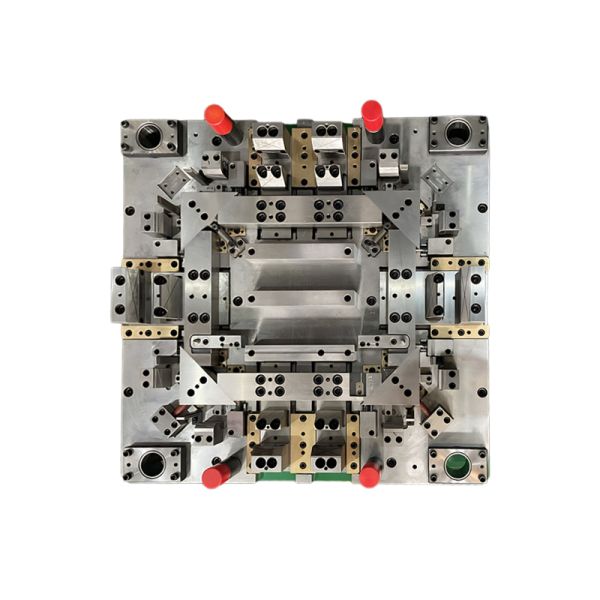

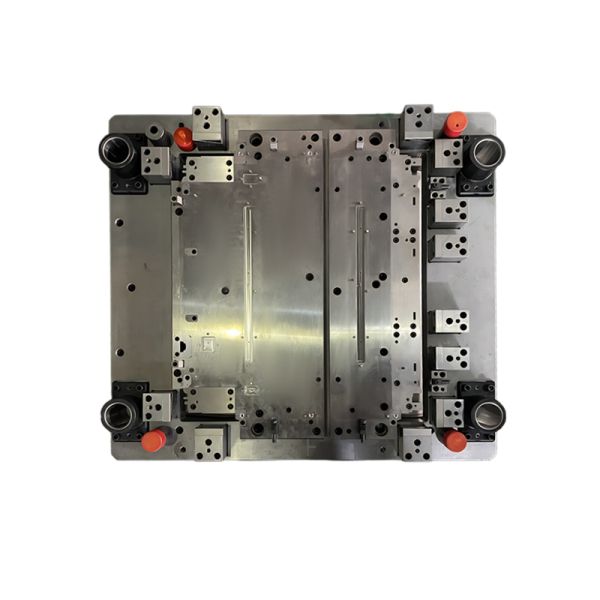

Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Specifications
Part Material :
DC51D
Part Name :
Dishwasher outer door
Mould Life :
1,000,000 shots
Punch Tonnage :
200T
Standard Parts Brand :
MISUMI
Mould Weight :
2T
Brand Name :
IDO
Model Number :
dishwasher outer door
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Type :
Stage mold
Mould Size :
1000*1000*550mm
Description
Household Sheet Metal Stamping Die For Dishwasher Outer Door
Description:

The Metal Stamping Stage Die designed for Dishwasher Outer Door Manufacturing is engineered for consistent precision and reliable performance. It enables accurate shaping of outer doors, ensures smooth production cycles, and supports high-quality output, making it an essential tool for efficient household appliance manufacturing.

Quick Detail:
  • Operating cycle: 6–14 seconds, depending on product.
  • Repair can be completed in 30 minutes; tools replaced in 15 minutes.
  • Punch edges need sharpening after 300k–500k strokes.
  • Software controls die movement.
  • Only sub-dies need dismantling.
  • One tool set supports multiple models; changeover via software.
Specifications:
Mould/Tool Type Stage tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade terms FOB (Shanghai)
Mould Lead time Generally 6~8 weeks (as per actual situation)
