DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
DC04 Sheet Metal Stamping Stage Die Microwave Oven Door
Specifications
Mould Weight :
1T
Part Material :
DC04
Mould Life :
1,000,000 shots
Punch Tonnage :
300T
Standard Parts Brand :
MISUMI
Brand Name :
IDO
Model Number :
Microwave oven door
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Type :
Stage mold
Mould Size :
850*550*345mm
Part Name :
Microwave oven door
Description

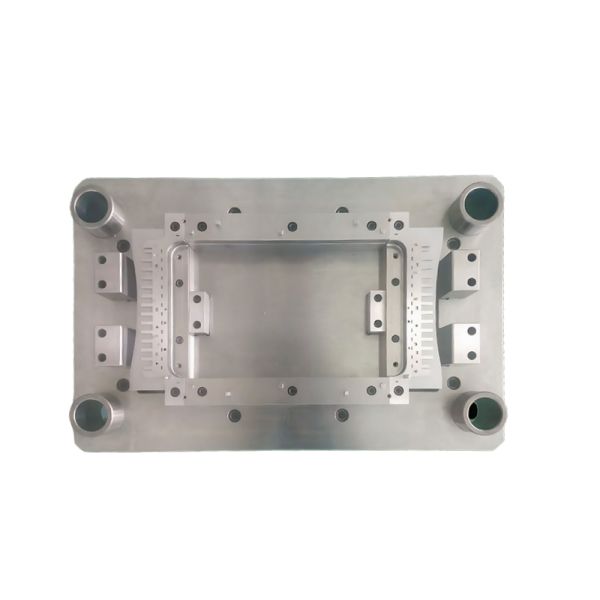

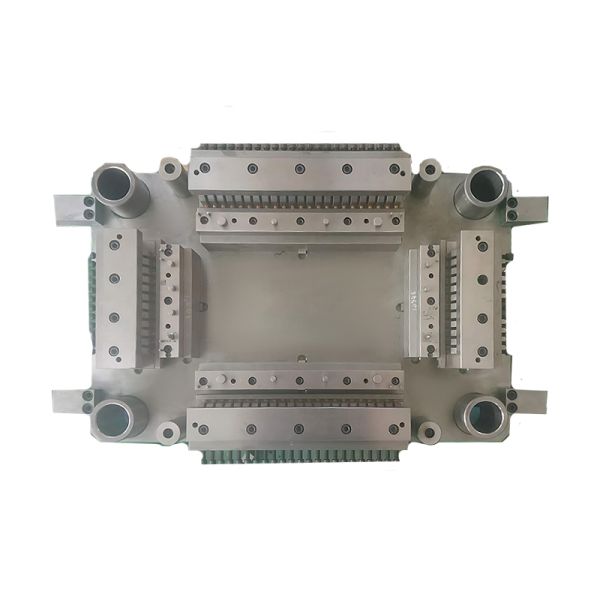

DC04 Sheet Metal Stamping Stage Die Microwave Oven Door

The DC04 Sheet Metal Stamping Stage Die is designed for forming microwave oven door components with stable dimensions, smooth surfaces, and consistent stamping quality. Manufactured with precision-machined die components, it is suitable for multi-stage processes such as blanking, forming, flanging, and punching, helping improve production efficiency and reduce part deformation.

Quick Detail:
  • Cycle duration: 6–14s depending on product.
  • Repairs finish in 30 minutes; tool changes in 15 minutes.
  • Punch edges sharpen after 300,000–500,000 cycles.
  • Die motions are software-controlled.
  • Cabinets can be produced with a single press table and tool set, lowering costs.
  • Maintenance requires only sub-die removal.
  • One tool set produces several models; changeovers handled by program.
Mould/Tool Type Stage tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade terms FOB (Shanghai)
Mould Lead time Generally 6~8 weeks (as per actual situation)
