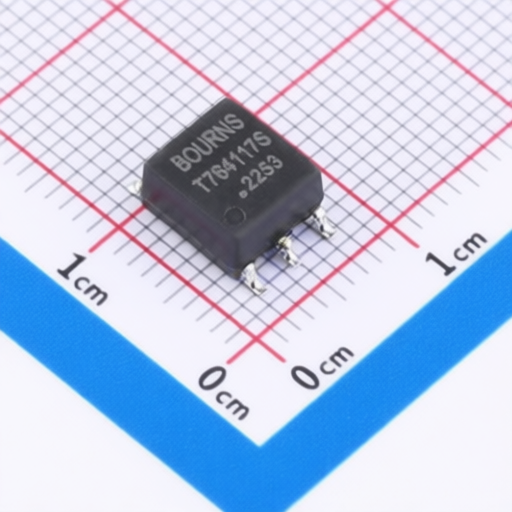

PAD001-T764117S Transformer Offering Functional Insulation and High Isolation Voltage for Industrial
PAD001-T764117S Transformer Offering Functional Insulation and High Isolation Voltage for Industrial
Specifications
Isolation Voltage(Vrms) :
3.1kV
Secondary Winding :
2
Primary Winding(s) :
2
Description :
3.1kV SMD-6P,7.1x6.6mm Switching Converter, SMPS Transformers RoHS
Mfr. Part # :
PAD001-T764117S
Model Number :
PAD001-T764117S
Package :
SMD-6P,7.1x6.6mm
Description

Product Overview

The PAD00x-T764 Series Push-Pull Isolation Transformer offers a low profile and small size, designed to comply with IEC 62368 standards. It provides functional insulation for 400 Vrms continuous operation voltage and operates within a temperature range of -40 C to +125 C. This RoHS compliant transformer is suitable for applications such as isolated RS-485/RS-232 power supplies, industrial automation, AC motor drives, smart metering, and solar inverters.

Product Attributes

  • Brand: Bourns
  • Compliance: IEC 62368, RoHS Directive 2015/863
  • Insulation Level: Functional insulation for 400 Vrms working voltage (per IEC 62368, Material Group III, Pollution Degree 2)
  • Moisture Sensitivity Level: 1
  • Materials: Ferrite (Core), Copper (Wire), DAP (Case), Sn (Terminal Finish)
  • Packaging: 800 pcs. per 13-inch reel

Technical Specifications

Bourns Part Number Primary Inductance @100 kHz / 0.1 V 10 % (H) Turns Ratio (1-3) : (6-4) Volt Microseconds Max. (V-S) DCR Max. (m) (1-3) DCR Max. (m) (6-4) Isolation Voltage (Volts RMS)
PAD001-T764117S 475 1:1.7 11 650 900 3100
PAD001-T764120S 475 1:2 11 650 1000 3100
PAD002-T764111S 475 1:1.1 11 650 700 3100
PAD002-T764113S 475 1:1.3 11 650 800 3100

General Specifications

Operating Temperature -40 C to +125 C
Storage Temperature (with packaging) -10 C to +40 C
Storage Temperature (without packaging) -40 C to +125 C
Current Rating 350 mArms
HI-POT Pri / Sec 3100 VAC / 1 mA / 2 s

Product Dimensions

Refer to the provided diagrams for detailed product dimensions in mm (inches).

How to Order

PAD 001 - T 764 117 S

  • Model: PAD = Push-pull Isolation Transformer
  • Power Rating: 001 = 1 W
  • Core: T = Toroid
  • Dimension: 764 = 7.10 x 6.55 x 4.0 mm
  • Turns Ratio: 111 = 1 : 1.1, 113 = 1 : 1.3, 117 = 1 : 1.7, 120 = 1 : 2
  • PCB Type: S = SMD
