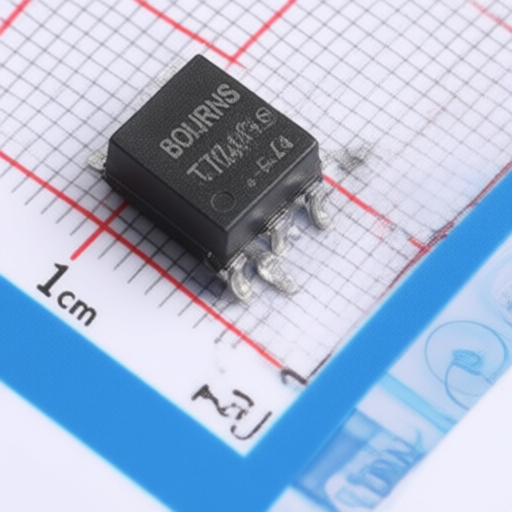

PAD001-T764120S Transformer Featuring Functional Insulation and Compliance with IEC 62368 Standards
PAD001-T764120S Transformer Featuring Functional Insulation and Compliance with IEC 62368 Standards
Specifications
Isolation Voltage(Vrms) :
3.1kV
Secondary Winding :
2
Primary Winding(s) :
2
Description :
3.1kV SMD-6P,7.1x6.6mm Switching Converter, SMPS Transformers RoHS
Mfr. Part # :
PAD001-T764120S
Model Number :
PAD001-T764120S
Package :
SMD-6P,7.1x6.6mm
Description

Product Overview

The PAD00x-T764 Series Push-Pull Isolation Transformer is designed for high-reliability applications, offering a low profile and small size. It complies with IEC 62368 standards and provides functional insulation for 400 Vrms continuous operation voltage. With an operating temperature range of -40 C to +125 C and RoHS compliance, this transformer is suitable for isolated RS-485/RS-232 power supplies, industrial automation, AC motor drives, smart metering, and solar inverters.

Product Attributes

  • Brand: Bourns
  • Compliance: RoHS compliant
  • Insulation Level: Functional insulation for 400 Vrms working voltage per IEC 62368, Material Group III, Pollution Degree 2
  • Moisture Sensitivity Level: 1
  • Materials: Core - Ferrite, Wire - Copper, Case - DAP, Terminal Finish - Sn
  • Packaging: 800 pcs. per 13-inch reel

Technical Specifications

Bourns Part Number Primary Inductance @100 kHz / 0.1 V 10 % (H) Turns Ratio (1-3) : (6-4) Volt Microseconds Max. (V-S) DCR Max. (m) (1-3) DCR Max. (m) (6-4) Isolation Voltage (Volts RMS)
PAD001-T764117S 475 1:1.7 11 650 900 3100
PAD001-T764120S 475 1:2 11 650 1000 3100
PAD002-T764111S 475 1:1.1 11 650 700 3100
PAD002-T764113S 475 1:1.3 11 650 800 3100

General Specifications

  • Operating Temperature: -40 C to +125 C
  • Storage Temperature (with packaging): -10 C to +40 C
  • Storage Temperature (without packaging): -40 C to +125 C
  • Current Rating: 350 mArms
  • HI-POT Pri / Sec: 3100 VAC / 1 mA / 2 s

Product Dimensions

Refer to the provided diagrams for detailed product dimensions.

How to Order

PAD 001 - T 764 117 S

  • Model: PAD = Push-pull Isolation Transformer
  • Power Rating: 001 = 1 W
  • Core: T = Toroid
  • Dimension: 764 = 7.10 x 6.55 x 4.0 mm
  • Turns Ratio: 111 = 1 : 1.1, 113 = 1 : 1.3, 117 = 1 : 1.7, 120 = 1 : 2
  • PCB Type: S = SMD
