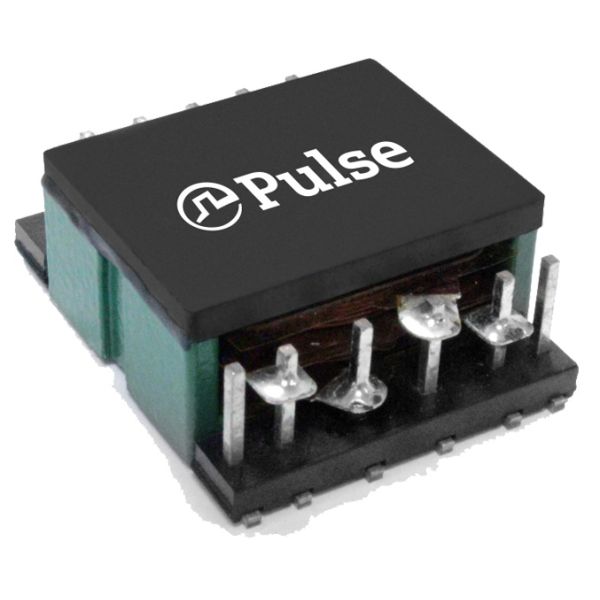

Compact planar transformer PULSE PH0803CNLT designed for 160W power and 1500 VDC isolation in power electronics
Compact planar transformer PULSE PH0803CNLT designed for 160W power and 1500 VDC isolation in power electronics
Specifications
Isolation Voltage(Vrms) :
1.5kV
Description :
1.5kV Switching Converter, SMPS Transformers RoHS
Mfr. Part # :
PH0803CNLT
Model Number :
PH0803CNLT
Description

Product Overview

The PH08XXCNL Series is a range of high frequency flat coil planar transformers designed for applications requiring up to 160W of power. These transformers offer a compact footprint with a maximum height of 9.1mm to 10.1mm and operate within a frequency range of 200kHz to 700kHz. They provide 1500 VDC isolation between primary and secondary windings and are RoHS-compliant.

Product Attributes

  • Brand: Pulse Electronics
  • Certifications: RoHS-compliant (indicated by "NL" suffix)
  • Patented: US Pat 9378885

Technical Specifications

Part NumberSchematicPrimary Turns (A/B)Secondary TurnsPrimary Inductance ( MIN)Leakage Inductance ( MAX)DCR (m MAX)Maximum Height (mm)
PH0801CNLA14T / 4T4T (1T:1T:1T:1T)1530.458.5 / 8.59.1
PH0802CNLA14T / 5T-1940.458.5 / 12.5-
PH0803CNLA15T / 5T-2280.5512.5 / 12.59.6
PH0804CNLA15T / 6T-2750.6012.5 / 14.2-
PH0805CNLA16T / 6T-3270.6514.2 / 14.2-
PH0806CNLA24T / 4T1T & 1T1530.458.5 / 8.59.1
PH0807CNLA24T / 5T-1940.558.5 / 12.5-
PH0808CNLA25T / 5T-2280.5512.5 / 12.59.6
PH0809CNLA25T / 6T-2750.9012.5 / 14.2-
PH0810CNLA26T / 6T-3271.0014.2 / 14.210.1
PH0811CNLA34T / 4T2T & 1T1530.458.5 / 8.59.1
PH0812CNLA34T / 5T-1840.458.5 / 12.5-
PH0813CNLA35T / 5T-2280.5512.5 / 12.59.6
PH0814CNLA35T / 6T-2750.6512.5 / 14.2-
PH0815CNLA36T / 6T-3270.8514.2 / 14.210.1

Notes:
1. Inductance is measured with both primary windings connected in series (2 to 5, with 3 and 4 shorted).
2. Leakage inductance is measured on winding (2-5) with (3-4) and (7, 8, 9, 10, 11) shorted.
3. The NL suffix indicates an RoHS-compliant part number.
4. Optional primary side aux. windings and Tape & Reel packaging are available upon request.


2411272151_PULSE-PH0803CNLT_C17587512.pdf
