Specifications
Model Number :
ZSDU16N/800-2170
Place of Origin :
Chengdu,China
RX Frequency Range :
800-960MHz
TX Frequency Range :
1710– 2170MHz
Insertion Loss :
0.3dB max
VSWR :
1.3 max
Connectors :
N-Female
Brand Name :
Zysen
MOQ :
1pc
Price :
Negotiable
Delivery Time :
2-4 Weeks
Payment Terms :
T/T, L/C,D/A
Certification :
ISO9001
Description

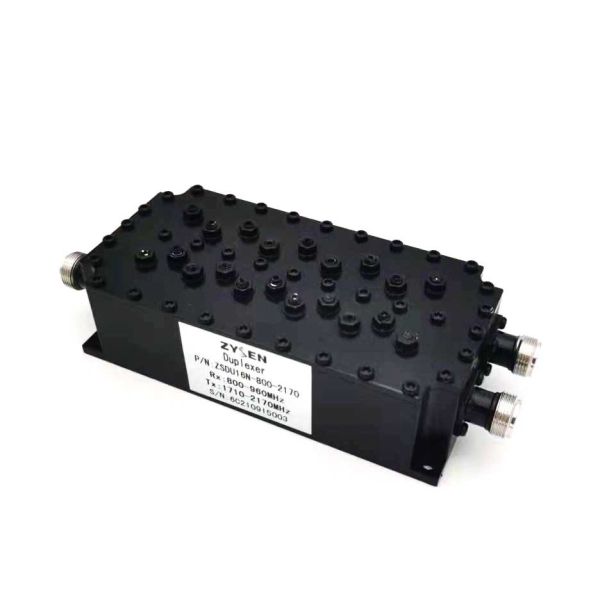

880MHz&1890MHz Duplexer

Zysen offers Duplexer/Diplexer/Triplexer for wireless, satellite & broadcast applications. For 5G, LTE, W-CDMA (UMTS), GSM erc. Below is some sample we made. Customized frequency and optimized specifications available. Fast delivery time with competitive price. Contact us with your requirement.

1. Electrical Specifications Rx Tx
Min. Typ. Max. Min. Typ. Max. units
Frequency 800 960 1710 2170 MHz
Insertion Loss 0.15 0.3 0.15 0.3 dB
Ripple 0.15 0.3 0.15 0.3 dB
VSWR 1.2 1.3 1.2 1.3
Isolation 80 85 80 85 dB
Power Handling 100 watts
Temperature -40 ~ +85
Impedance 50 ohms
Connectors N-Female
Material Aluminum
Color Black Paint

Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the , satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the , satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
