Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Zero Cross Photo Triac Device SOP4 Package Featuring GOODWORK M3053 with 600V Peak Breakdown Voltage
Specifications
Power Dissipation :
400mW
Isolation Voltage(Vrms) :
3.75kV
Static dv/dt :
1000V/us
Output Current(It(rms)) :
100mA
Forward Current :
60mA
Current - Surge(Itsm) :
1A
Output Type :
TRIAC
Voltage - Forward(Vf) :
1.2V
Zero Crossing Circuit :
Yes
Number of terminals :
4
Description :
1000V/us 100mA 60mA 1.2V SOP-4 Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
M3053
Model Number :
M3053
Package :
SOP-4
Description

Product Overview

The M305X series is a line of zero-cross photo triac devices housed in a SOP4 package. These photocouplers consist of an infrared emitting diode and a photoelectric SCR chip, enabling electrical isolation and signal transmission between different circuits. They are widely utilized in home appliance applications. Key features include high input-output isolation voltage (3750Vrms), DC input with zero-cross photo triac output, a peak breakdown voltage of 600V, creepage distance exceeding 5.2mm, and an operating temperature range up to +100C. The products comply with environmental regulations such as RoHS, REACH, and HF, and are suitable for elevations up to 5000 meters.

Product Attributes

  • Brand: GK
  • Package: SOP4
  • Certifications: RoHS, REACH, HF compliant
  • Moisture Sensitivity Level (MSL): Class 1

Technical Specifications

Parameter Name Symbol Rating/Condition Unit
Absolute Maximum Ratings (Temperature=25C)
Forward Current (Input) IF 60 mA
Reverse Voltage (Input) VR 6 V
Power Dissipation (Input) PD 100 mW
Off-state Output Terminal Voltage VDRM (305X) 600 V
Peak Repetitive Surge Current (PW=100s, 120pps) ITSM 1 A
On-State RMS Current IT(RMS) 100 mA
Power Dissipation (Output) Pc 300 mW
Total Power Dissipation Ptot 400 mW
Isolation Voltage (AC for 1 Minute, R.H. = 40 ~ 60%) Viso 3750 Vrms
Operating Temperature Topr -55 ~ +100
Storage Temperature Tstg -55 ~ +125
Soldering Temperature (10 seconds) Tsol 260

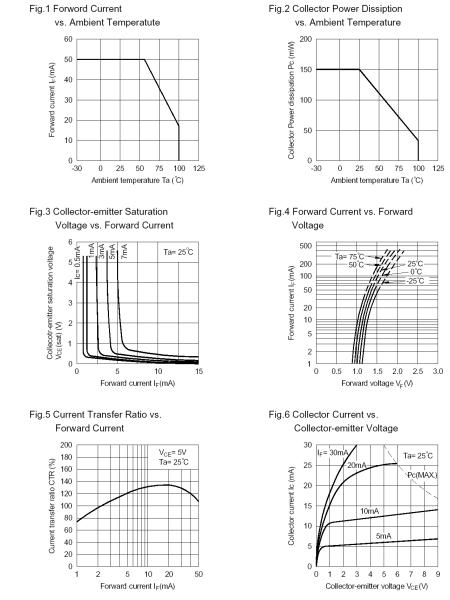

Electrical Characteristics (Temperature=25C)
Forward Voltage (IF=20mA) VF ---, Typ. 1.2, Max. 1.4 V
Reverse Current (VR=6V) IR ---, Max. 10 A
Input Capacitance (V=0, f=1KHz) Cin ---, Typ. 8.5, Max. 250 pF
Peak Off-state Current (VDRM=Rated VDRM, IF=0) IDRM ---, Max. 500 nA
Peak On-state Voltage (ITM=100mA) VTM ---, Max. 3.0 V
Critical Rate of Rise of Off-state Voltage (VPEAK =Rated VDRM) dV/dt 1000 V/s
LED Trigger Current (3051, Terminal Voltage = 3V, ITM=100mA) IFT Min. 15 mA
LED Trigger Current (3052, Terminal Voltage = 3V, ITM=100mA) IFT Min. 10 mA

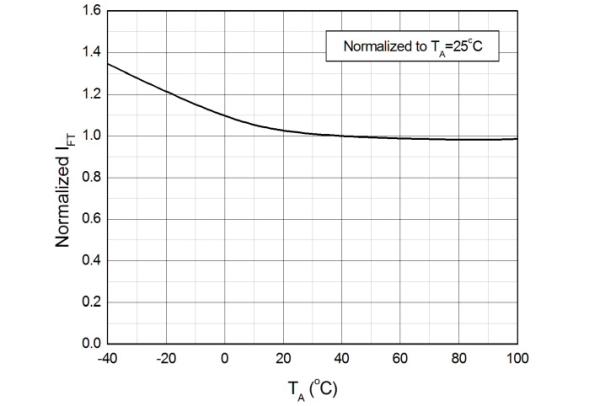

LED Trigger Current (3053, Terminal Voltage = 3V, ITM=100mA) IFT Min. 5 mA
Holding Current IH ---, Max. 280 A
Isolation Resistance (DC500V, 40~60%R.H.) Riso Min. 11012
Floating Capacitance (V=0, f=1MHz) CIO ---, Typ. 0.4, Max. 1.0 pF
Inhibit Voltage (IF=Rated IFT) VINH ---, Max. 20 V
Leakage in Inhibited State (IF=Rated IFT, VDRM=Rated VDRM) IDRM2 ---, Max. 500 A
Pin Configuration 1. Anode, 2. Cathode, 3. Terminal, 4. Terminal
