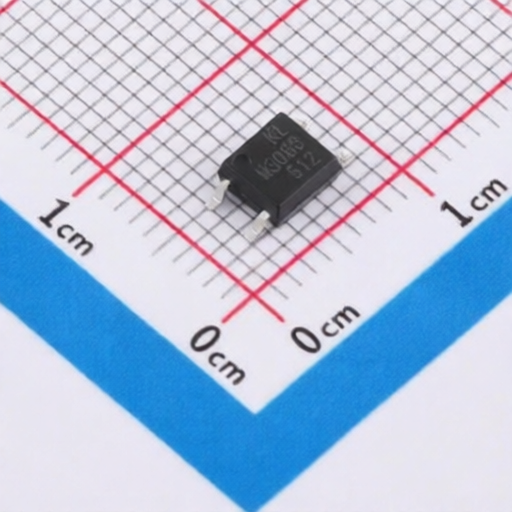

Photocoupler Kinglight KLM3083-TA-AW-T04 featuring zero crossing triac transistor and GaAs infrared emitting diode
Photocoupler Kinglight KLM3083-TA-AW-T04 featuring zero crossing triac transistor and GaAs infrared emitting diode
Specifications
Description :
SOP-4 Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
KLM3083-TA-AW-T04
Model Number :
KLM3083-TA-AW-T04
Package :
SOP-4
Description

Product Overview

The KLM308X is a zero-crossing triac photocoupler designed for interfacing logic systems with 110-240 VAC powered equipment. It comprises a GaAs infrared emitting diode and a zero-cross triac transistor, offering high isolation voltage and compliance with environmental regulations. Ideal for applications like solid-state relays, industrial controls, and consumer appliances.

Product Attributes

  • Brand: Kinglight
  • Certifications: EU REACH, RoHS
  • Material: Halogen-free (Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm), Pb-free
  • Grade: Consumer-grade

Technical Specifications

ParameterSymbolKLM308X (800V)UnitCondition
Peak breakdown voltage800V
Isolation VoltageViso3750VrmsAC for 1 minute, R.H.= 40 ~ 60% R.H.
Operating TemperatureTOPR-40 to +110
Storage TemperatureTSTG-55 to +150
Forward Current (Input)IF60mA
Peak Forward Current (Input)IF(PK)1A1us pulse, 300pps
Reverse Voltage (Input)VR6V
Power Dissipation (Input)PD100mW
Off-state Output Terminal VoltageVDRM800V
On-State RMS Current (Output)IT(RMS)70mA
Power Dissipation (Output)Pc300mW
Forward Voltage (Output)VF1.5VIF=30mA
Reverse Current (Output)IR10AVR=6V
Peak Blocking CurrentIDRM1100nAVDRM = Rated VDRM, IF = 0mA
Peak On-state VoltageVTM3VITM=100mA peak
Critical Rate of Rise of Off-state Voltagedv/dt1000V/s
Inhibit VoltageVINH20VIF= Rated IFT
Leakage Current in Inhibit StateIDRM21000AIF= Rated IFT, VDRM=Rated VDRM, off state
LED Trigger Current (KLM3082)IFT10mAMain terminal Voltage=3V
LED Trigger Current (KLM3083)IFT5mAMain terminal Voltage=3V
LED Trigger Current (KLM3084)IFT3mAMain terminal Voltage=3V
Holding CurrentIH280A

2507171700_Kinglight-KLM3083-TA-AW-T04_C49374867.pdf
