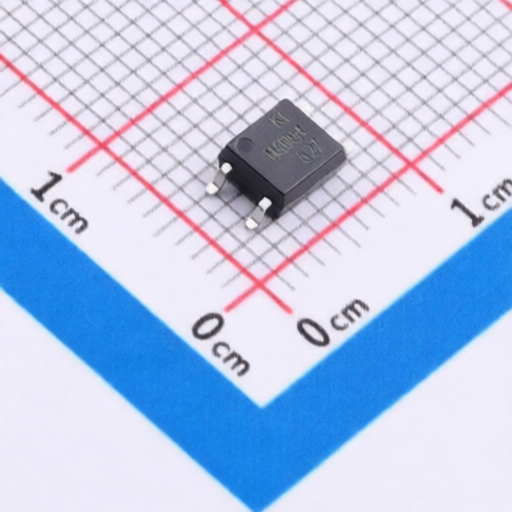

Random Phase Triac Photocoupler Kinglight KLM3054-TA with Compliance to EU REACH and RoHS Standards
Random Phase Triac Photocoupler Kinglight KLM3054-TA with Compliance to EU REACH and RoHS Standards
Specifications
Number of Channels :
1
Operating Temperature :
-40℃~+110℃
Isolation Voltage(Vrms) :
3.75kV
Static dv/dt :
1000V/us
Forward Current :
60mA
Load Voltage :
600V
Output Type :
TRIAC
Voltage - Forward(Vf) :
1.2V
Zero Crossing Circuit :
-
Description :
1000V/us 60mA 600V 1.2V SOP-4-175mil-2.54mm Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
KLM3054-TA
Model Number :
KLM3054-TA
Package :
SOP-4-175mil-2.54mm
Description

Product Overview

The KLM305X series is a random-phase Triac photocoupler designed for interfacing electronic controls with power Triacs. It features a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo Triac, enabling control of resistive and inductive loads for 115 to 240 V AC operations. Key advantages include high isolation voltage (Viso=3750 V rms), a compact SOP4 package, and compliance with EU REACH and RoHS standards.

Product Attributes

  • Brand: Kinglight
  • Product Type: Random-Phase Triac Photocoupler
  • Certifications: EU REACH, RoHS
  • Package Type: SOP4
  • Material: GaAs infrared emitting diode, Monolithic silicon random phase photo Triac

Technical Specifications

ParameterSymbolKLM3052 (Typ.)KLM3053 (Typ.)KLM3054 (Typ.)UnitCondition
Peak Breakdown VoltageVDRM600V
Isolation VoltageViso3750VrmsAC for 1 minute, R.H.= 40 ~ 60% R.H.
Forward CurrentIF60mAMax.
Reverse VoltageVR6VMax.
Power Dissipation (Input)PD100mWMax.
Peak Repetitive Surge CurrentITSM1Apw=1ms, 120pps
On-State RMS CurrentIT(RMS)70mA
Output Power DissipationPc300mWMax.
Total Consume PowerPTOT200mWMax.
Operating TemperatureTOPR-40 to +110
Storage TemperatureTSTG-55 to +150
Forward VoltageVF1.5VIF=10mA
Reverse CurrentIR10AVR=6V
Peak Blocking CurrentIDRM100nAVDRM = Rated VDRM, IF = 0 mA
Peak On-state VoltageVTM2.5VTM=100 mA peak, IF=Rated IFT
Critical Rate of Rise of Off-state Voltagedv/dt1000V/sVPEAK =Rated VDRM, IF=0mA
LED Trigger Current (Max)IFT1053mAMain terminal Voltage=3V
Holding CurrentIH5mA

2411220032_Kinglight-KLM3054-TA_C41414407.pdf
