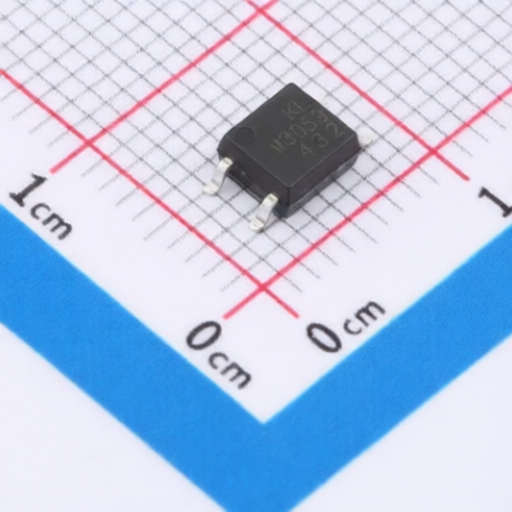

Random phase TRIAC photocoupler Kinglight KLM3053-TA with high isolation voltage and RoHS compliance
Random phase TRIAC photocoupler Kinglight KLM3053-TA with high isolation voltage and RoHS compliance
Specifications
Number of Channels :
1
Operating Temperature :
-40℃~+110℃
Isolation Voltage(Vrms) :
3.75kV
Static dv/dt :
1000V/us
Forward Current :
60mA
Load Voltage :
600V
Output Type :
TRIAC
Voltage - Forward(Vf) :
1.2V
Zero Crossing Circuit :
-
Description :
1000V/us 60mA 600V 1.2V SOP-4-175mil-2.54mm Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
KLM3053-TA
Model Number :
KLM3053-TA
Package :
SOP-4-175mil-2.54mm
Description

Product Overview

The KLM305X series is a random-phase TRIAC photocoupler designed for interfacing electronic controls with power TRIACs. It consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo TRIAC, enabling control of resistive and inductive loads for 115 to 240 V AC operations. Key features include high isolation voltage, a compact DIP package, and compliance with EU REACH and RoHS standards.

Product Attributes

  • Brand: Kinglight
  • Product Type: Random-Phase TRIAC Photocoupler
  • Package: SOP4
  • Certifications: EU REACH, RoHS compliant, VDE (optional)
  • Material: GaAs infrared emitting diode, monolithic silicon random phase photo TRIAC

Technical Specifications

ParameterSymbolKLM3052 (Typ.)KLM3053 (Typ.)KLM3054 (Typ.)UnitCondition
Peak Breakdown VoltageVDRM600V
Isolation VoltageViso3750VrmsAC for 1 minute, R.H.= 40 ~ 60% R.H.
Forward CurrentIF60mAAbsolute Maximum
Reverse VoltageVR6V
Power Dissipation (Input)PD100mW
Peak Repetitive Surge CurrentITSM1Apw=1ms, 120pps
On-State RMS CurrentIT(RMS)70mA
Output Power DissipationPc300mW
Total Consume PowerPTOT200mW
Operating TemperatureTOPR-40 to +110
Storage TemperatureTSTG-55 to +150
Soldering TemperatureTSOL26010 seconds
Forward VoltageVF1.5VIF=10mA
Reverse CurrentIR10AVR=6V
Peak Blocking CurrentIDRM100nAVDRM = Rated VDRM, IF = 0 mA
Peak On-state VoltageVTM2.5VITM=100 mA peak, IF=Rated IFT
Critical Rate of Rise of Off-state Voltagedv/dt1000V/sVPEAK =Rated VDRM, IF=0mA
LED Trigger CurrentIFT1053mAMain terminal Voltage=3V
Holding CurrentIH5mA

2411220032_Kinglight-KLM3053-TA_C41414406.pdf
