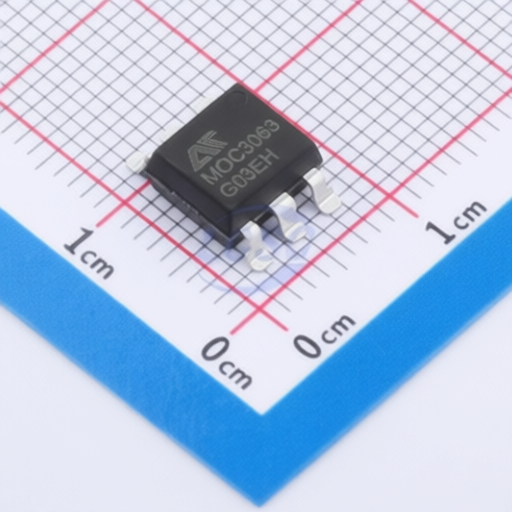

Input output isolation device AOTE MOC3063SM suitable for smart lighting systems and medical equipment
Input output isolation device AOTE MOC3063SM suitable for smart lighting systems and medical equipment
Specifications
Number of Channels :
1
Power Dissipation :
330mW
Operating Temperature :
-55℃~+110℃
Isolation Voltage(Vrms) :
5kV
Static dv/dt :
1000V/us
Output Current(It(rms)) :
100mA
Forward Current :
60mA
Load Voltage :
600V
Output Type :
TRIAC
Voltage - Forward(Vf) :
1.3V
Number of terminals :
6
Zero Crossing Circuit :
Yes
Description :
1000V/us 100mA 60mA 600V 1.3V SOP-6-2.54mm Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
MOC3063SM
Model Number :
MOC3063SM
Package :
SOP-6-2.54mm
Description

Product Overview

The AOTE MOC303X, MOC304X, MOC306X, and MOC308X series optocouplers leverage high-efficiency photoelectric conversion technology and advanced packaging processes to provide reliable input-output isolation. Designed for diverse application requirements, these optocouplers support both DIP and SMD package types. They are suitable for industrial automation and control, including PLCs, frequency converters, servo drive systems, and industrial robots. Additionally, they find applications in household appliances, consumer electronics, smart lighting systems, power systems, energy management, and medical/special scenarios requiring isolation and circuit protection.

Product Attributes

  • Brand: AOTE
  • Product Series: MOC303X, MOC304X, MOC306X, MOC308X
  • Certifications: ROHS, REACH, HF
  • Moisture Sensitivity Level (MSL): Class 1
  • Package Types: DIP, SMD

Technical Specifications

Parameter Symbol MOC303X MOC304X MOC306X MOC308X Rating Unit
General Features
Input-Output Isolation Voltage Vios 5000 Vrms
Creepage Distance - > 7.0 mm
Input-Output Insulation Thickness - > 0.4 mm
Absolute Maximum Ratings (Ta = 25)
Input Forward Current IF 60 mA
Input Backward Voltage VR 6 V
Input Power Dissipation PD 70 mW
Input Power Dissipation Derating Factor (above Ta = 90C) PDD 3.8 mW/
Off-state Output Terminal Voltage VDRM 250 400 600 800 V
Peak Repetitive Surge Current (pw=100 s, 120pps) ITSM 1 A
On-state Current (RMS value) IT(RMS) 100 mA
Output Power Dissipation PC 300 mW
Output Power Dissipation Derating Factor (above Ta = 90C) - 7.4 mW/
Isolation Voltage Viso 5000 Vrms
Operating Temperature Topr -55 to +110
Storage Temperature Tstg -55 to +125
Soldering Temperature Tsol 260
Recommended Operating Conditions
Input Forward Current IF 5 to 15 mA
Peak Repetitive Surge Current (pw=100s, 120pps) ITSM 1 A
On-state Current (RMS value) IT(RMS) 100 mA
Product Characteristic Parameters (Ta = 25)
Input Forward Voltage VF - 1.23 (Typ.) 1.5 (Max.) V (IF = 20mA)
Input Back Current IR - - 10 (Max.) uA (VR = 6V)
Output Off-state Peak Current IDRM1 - - 100 (Max.) nA (VDRM = Rated VDRM, IF = 0mA)
Output On-state Peak Voltage VTM - - 3 (Max.) V (ITM=100mA peak, IF = Rated IFT)
Output Critical Rise Rate of Off-state Voltage dv/dt 1000 (Min.) 600 (Min.) - - V/s (VPEAK = Rated VDRM, IF = 0)
Output Suppression Voltage VInh - - 20 (Max.) V (IF = Rated IFT)
Output Leakage Current in Suppression State IDRM2 - - 500 (Max.) uA (IF = Rated IFT, VDRM=Rated VDRM, Off state)
Transfer Characteristic LED Trigger Current IFT MOC3031 MOC3041 MOC3061 MOC3081 - 15 (Max.) mA (Main terminal Voltage = 3V)
Transfer Characteristic LED Trigger Current IFT MOC3032 MOC3042 MOC3062 MOC3082 - 10 (Max.) mA (Main terminal Voltage = 3V)
Transfer Characteristic LED Trigger Current IFT MOC3033 MOC3043 MOC3063 MOC3083 - 5 (Max.) mA (Main terminal Voltage = 3V)
Transfer Characteristic Maintain Current IH - 280 (Max.) uA

Overall Dimensions

Dimensions are in millimeters (mm).

Marking Information

Marking includes AOTE brand LOGO, Year (Y), Week (WW), Internal Code (E), and Halogen-free indicator (H).

Packaging

Package Type Packing Form Quantity per Reel/Tube Quantity per Box Quantity per Carton Box Specification Carton Specification
SMD6 Reel (330mm Blue) 1000 pcs/reel 2 reels/box 10 boxes/ctn 340*60*340mm 620*360*365mm
DIP6 Tube (500*12*11mm) 65 pcs /tube 50 tubes/box 10 boxes/ctn 525*128*56mm 535*275*300mm

Soldering Information

  • Solder Reflow Profile: See diagram.
  • Wave Soldering Profile: See diagram.
  • Hand Soldering Iron: For rework or sample testing only. Temperature: 350 5, within 3s.

2508011705_AOTE-MOC3063SM_C20612616.pdf
