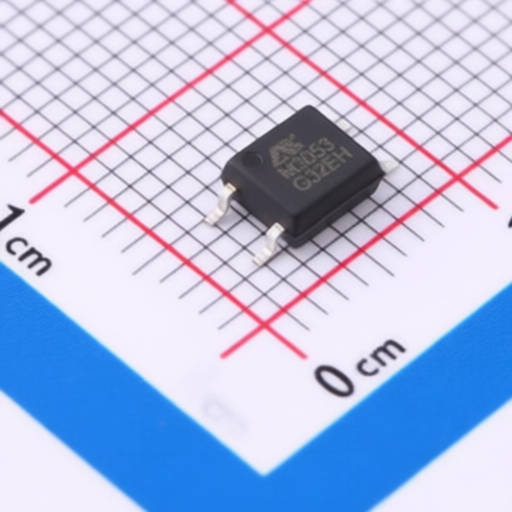

Sop4 packaged optocoupler AOTE ELM3053 offering input output isolation for automation applications
Sop4 packaged optocoupler AOTE ELM3053 offering input output isolation for automation applications
Specifications
Number of Channels :
1
Operating Temperature :
-55℃~+110℃
Isolation Voltage(Vrms) :
5kV
Static dv/dt :
1000V/us
Output Current(It(rms)) :
100mA
Forward Current :
15mA
Current - Surge(Itsm) :
1A
Output Type :
TRIAC
Voltage - Forward(Vf) :
1.23V
Number of terminals :
4
Description :
1000V/us 100mA 15mA 1.23V SOP-4 Triac, SCR Output Optoisolators RoHS
Mfr. Part # :
ELM3053
Model Number :
ELM3053
Package :
SOP-4
Description

Product Overview

The AOTE ELM301X, ELM302X, ELM305X, and ELM307X series optocouplers leverage high-efficiency photoelectric conversion technology and advanced packaging processes to deliver reliable input-output isolation. These devices support SOP4 packaging, making them adaptable to a wide range of application requirements. They are designed for industrial automation, control systems, consumer electronics, and power management, offering critical isolation and protection functions.

Product Attributes

  • Brand: AOTE
  • Product Series: ELM301X, ELM302X, ELM305X, ELM307X
  • Package Type: SOP4
  • Certifications: ROHS, REACH, HF compliant
  • Moisture Sensitivity Level (MSL): Class 1

Technical Specifications

Model Parameter Symbol Rating Unit Condition
ELM301X, ELM302X, ELM305X, ELM307X Input-Output Isolation Voltage Vios 5000 Vrms
Creepage Distance >7.0 mm
Input-Output Insulation Thickness >0.4 mm
Forward Current (Input) IF 60 mA
Backward Voltage (Input) VR 6 V
Power Dissipation (Input) PD 70 mW (Ta =25)
Power Dissipation Derating Factor (Input) PDD 3.8 mW/ (above Ta = 90C)
Peak Repetitive Surge Current ITSM 1 A (pw=100 s, 120pps)
On-state Current (RMS) IT(RMS) 100 mA
Power Dissipation (Output) PC 300 mW (Ta =25)
Power Dissipation Derating Factor (Output) 7.4 mW/ (above Ta = 90C)
Isolation Voltage Viso 5000 Vrms
ELM301X Off-state Output Terminal Voltage VDRM 250 V
ELM302X Off-state Output Terminal Voltage VDRM 400 V
ELM305X Off-state Output Terminal Voltage VDRM 600 V
ELM307X Off-state Output Terminal Voltage VDRM 800 V
ELM301X, ELM302X, ELM305X, ELM307X Operating Temperature Topr -55 ~ +110
Storage Temperature Tstg -55 ~ +125
Soldering Temperature Tsol 260
Forward Voltage (Typical) VF 1.23 V IF=20mA
Back Current (Typical) IR 10 uA VR=6V
ELM301X Critical Rise Rate of Off-State Voltage dv/dt 100 V/s VPEAK=Rated VDRM, IF=0
ELM302X, ELM305X Critical Rise Rate of Off-State Voltage dv/dt 1000 V/s VPEAK=400V, IF =0
ELM307X Critical Rise Rate of Off-State Voltage dv/dt 1000 V/s VPEAK=Rated VDRM, IF =0
ELM3020 LED Trigger Current (Typical) IFT 30 mA Main terminal Voltage =3V
ELM3011 LED Trigger Current (Typical) IFT 15 mA Main terminal Voltage =3V
ELM3021, ELM3051, ELM3071 LED Trigger Current (Typical) IFT 15 mA Main terminal Voltage =3V
ELM3012 LED Trigger Current (Typical) IFT 10 mA Main terminal Voltage =3V
ELM3022, ELM3052, ELM3072 LED Trigger Current (Typical) IFT 10 mA Main terminal Voltage =3V
ELM3013 LED Trigger Current (Typical) IFT 5 mA Main terminal Voltage =3V
ELM3023, ELM3053, ELM3073 LED Trigger Current (Typical) IFT 5 mA Main terminal Voltage =3V
Maintain Current IH 250 uA

Packaging

Package Type Packing Form Quantity per Reel Quantity per Box Quantity per Carton Box Specification Carton Specification
SOP4 Reel (330mm Blue) 3000 pcs 2 reels/box 10 boxes/ctn 34*6*34cm 62*36*36.5cm

2508011705_AOTE-ELM3053_C41371273.pdf
