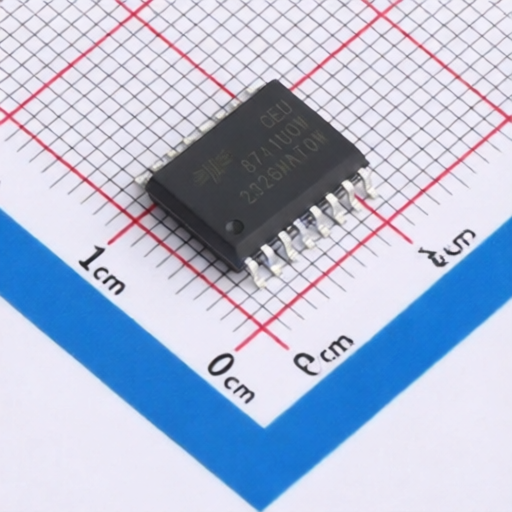

Four channel universal digital isolators coileasy CEU8741U0W with 0 to 100 Mbps data rate and consumption
Four channel universal digital isolators coileasy CEU8741U0W with 0 to 100 Mbps data rate and consumption
Specifications
CMTI(kV/us) :
200kV/us
Propagation Delay(tpd) :
12.8ns
Voltage - Supply :
3V~5.5V;3V~5.5V
Default Output :
Low Level
Number of Forward Channels :
3
Number of Reverse Channels :
1
Operating Temperature :
-40℃~+125℃
Description :
Digital Isolator 5700Vrms Forward 3 Channel Reverse 1 Channel 100Mbps 200kV/us CMTI SOP-16-300mil
Mfr. Part # :
CEU8741U0W
Model Number :
CEU8741U0W
Package :
SOP-16-300mil
Description

Product Description

The CEU8741U1W/CEU8741U0W are high-speed, high-reliability, four-channel magnetic isolation universal digital isolators. They meet the 5.7 kVrms isolation withstand voltage requirement under the UL-1577 standard and utilize a wide-body SOW-16 package. These isolators transmit signals using chip-level micro-transformers and proprietary AdaptivePulse modulation/demodulation technology, balancing the timing accuracy of edge modulation with the robustness of On-Off Keying (OOK) modulation. They offer a typical signal transmission delay of less than 10 ns and a common-mode transient immunity of 200 kV/s. The CEU8741U1W/CEU8741U0W includes 3 forward signal channels and 1 reverse signal channel. They provide power-down protection: CEU8741U1W defaults to a high output level, and CEU8741U0W defaults to a low output level when the input is powered down or floating.

Product Features

  • Data Rate: 0-100Mbps
  • Ultra-low Power Consumption: 1.9 mA typical per channel @ 1Mbps
  • Typical Transmission Delay: Less than 10 ns
  • Input Voltage Range: 3.0 V to 5.5 V
  • Operating Temperature Range: -40 C to +125 C
  • Isolation Withstand Voltage: 5.7 kVrms
  • Common-Mode Transient Immunity: 200 kV/s
  • SOW-16 Package (Wide Body)
  • Selectable Default Output Level

Product Applications

  • Smart Meters
  • Industrial Automation
  • Home Appliances
  • Isolated Data Buses

Product Attributes

  • Brand: (Xianyi Technology)
  • Certifications: UL-1577 (5.7 kVRMS withstand voltage for 1 minute), CQC (GB4943.1-2011), Radiated Immunity (GB/T 17626.3-2006 and IEC61000-4-3, >10V/m), Power Frequency Magnetic Field Immunity (GB/T17626.8, IEC61000-4-8, better than level 5), Latch-up Test (EIA/JESD78)

Technical Specifications

ParameterModelMinTypicalMaxUnitTest Conditions
Supply Voltage (VCC1, VCC2)CEU8741U1W/CEU8741U0W-0.55.5VAbsolute Maximum Rating
CEU8741U1W/CEU8741U0W3.05.5VRecommended Operating Conditions
Data RateCEU8741U1W/CEU8741U0W0100Mbps
0100MbpsRecommended Operating Conditions
Transmission Delay (tPLH)CEU8741U1W/CEU8741U0W12.012.830.6ns3.3 V Supply, Load CL = 15 pF
8.59.29.8ns5.0 V Supply, Load CL = 15 pF
Transmission Delay (tPHL)CEU8741U1W/CEU8741U0W11.712.715.5ns3.3 V Supply, Load CL = 15 pF
8.99.410.0ns5.0 V Supply, Load CL = 15 pF
Common-Mode Transient Immunity (CMTI)CEU8741U1W/CEU8741U0W150200kV/sRecommended Operating Conditions
Isolation Withstand VoltageCEU8741U1W/CEU8741U0W5.7kVrmsUL-1577
PackageCEU8741U1W/CEU8741U0WSOW-16 (Wide Body)
Package Dimensions (Nominal)CEU8741U1W/CEU8741U0W10.3 x 7.5 (mm)
Default Output LevelCEU8741U1WHigh
Default Output LevelCEU8741U0WLow
Power-Down ProtectionCEU8741U1W/CEU8741U0WYes
Operating TemperatureCEU8741U1W/CEU8741U0W-4025125C

2408061021_coileasy-CEU8741U0W_C37648299.pdf
